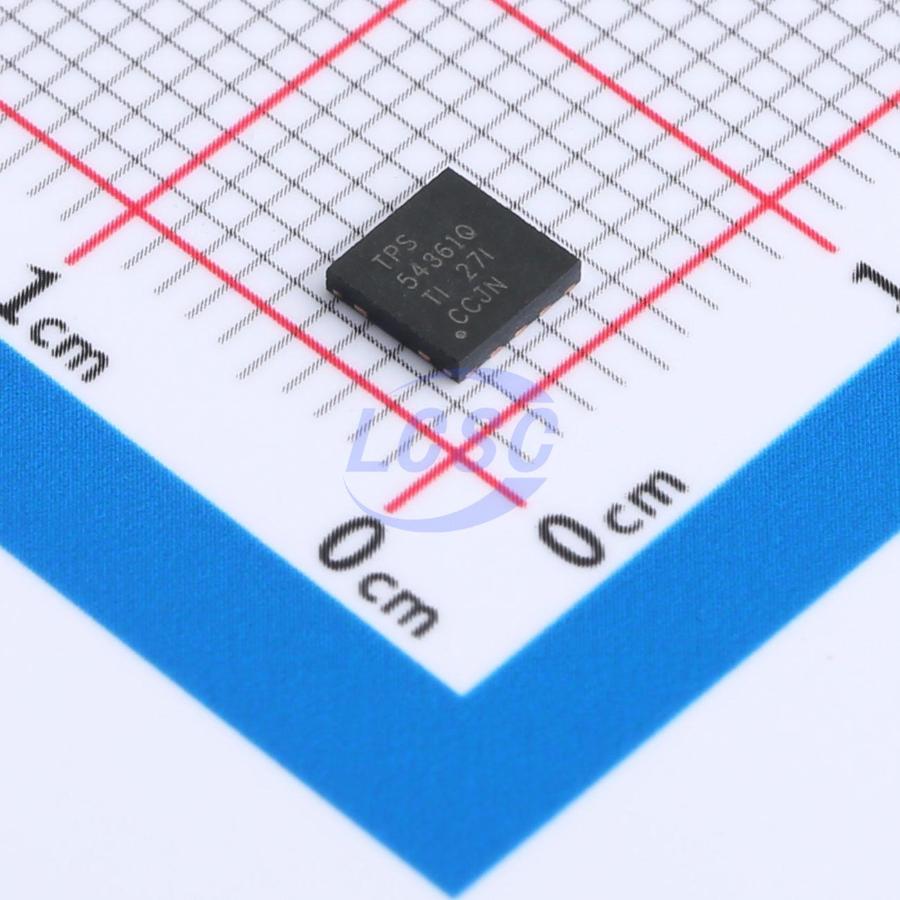

TPS54361QDPRRQ1

The TPS54361-Q1 is a 60V, 3.5A step-down regulator with an integrated high-side MOSFET. Per ISO 7637, the device withstands load dump pulses up to 65V. Current mode control provides simple external compensation and flexible component selection. Low-ripple pulse skip mode and 152μA supply current enable high efficiency at light loads. When the enable pin is pulled low, shutdown supply current is reduced to 2μA. UVLO is internally set at 4.3V but can be increased using an external resistor divider on the enable pin. The output voltage startup ramp is controlled by the soft-start pin, which can also be configured for sequencing/tracking. An open-drain power good signal indicates the output is within 93% to 106% of the nominal voltage. The wide adjustable switching frequency range can be optimized for efficiency or external component size. Cycle-by-cycle current limiting, frequency foldback, and thermal shutdown protect internal and external components under overload conditions. The TPS54361-Q1 is available in a 10-pin 4mm×4mm WSON exposed thermal pad package.

Applications

• Vehicle accessories: GPS, infotainment systems
• USB dedicated charging ports and battery chargers
• 12V, 24V and 48V industrial, automotive and telecom power systems

Key features

• Automotive electronics application certified with the following AEC-Q100 results
• Device temperature grade 1: -40°C to 125°C ambient operating temperature range
• Device HBM ESD classification level H1C
• Device CDM ESD classification level C3B
• High-efficiency Eco-mode with pulse skipping under light load conditions
• 87mΩ high-side MOSFET
• 152μA quiescent operating current and 2μA shutdown current
• 100kHz to 2.5MHz adjustable switching frequency synchronizable to external clock
• Low dropout under light load conditions with integrated BOOT recharge FET
• Adjustable UVLO voltage and hysteresis
• UV and OV power good output
• Adjustable soft-start and sequencing
• 0.8% internal voltage reference
• 10-pin WSON package with thermal pad
• TJ operating range: -40°C to 150°C
• Create custom designs using TPS54361-Q1 with WEBENCH Power Designer
