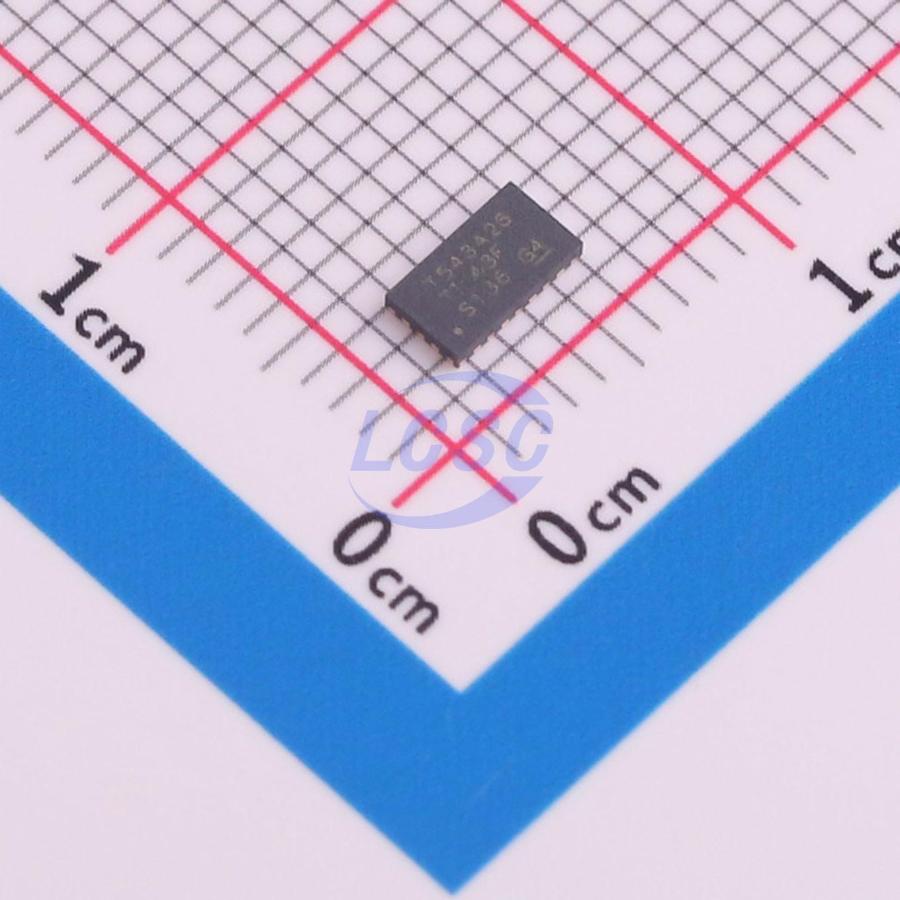

TPS543A26RYSR

Step-down type Adjustable 16A 500mV~7V WQFN-17-FCRLF(2.5x4.5) Voltage Regulators - DC DC Switching Regulators RoHS

WQFN-17-FCRLF(2.5x4.5)ROHS3 CompliantActive

16A Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: TPS543A26RYSR
Store part #: C6886477
Package / case: WQFN-17-FCRLF(2.5x4.5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C6886477

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹2,838.76	₹2,838.76
10+	₹2,711.49	₹27,114.90
30+	₹2,490.98	₹74,729.40
100+	₹2,298.67	₹2,29,867.00

Quantity (min 1)

1 × ₹2,838.76

₹2,838.76

excl. GST

₹3,349.74 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

TPS543A26RYSR

₹2,838.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+150℃@(TJ)
Frequency - Switching: 500kHz;750kHz;1MHz;1.5MHz;2.2MHz
Number of Outputs: 1
Function: Step-down type
Features: Adjustable current limiting;Adjustable soft-start;Output discharge;Frequency synchronization;Output voltage differential sensing;Cable compensation;Built-in LDO regulator;Operating status indication;Overcurrent Protection;Hiccup current limiting
Output Type: Adjustable
Topology: Buck
Operating Voltage: 18V
Switch tube (built-in/external): Built-in
Output Current: 16A
Output Voltage: 500mV~7V
Quiescent Current: 1.6mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

The TPS543A26 is a high-efficiency 18-V, 16-A synchronous buck converter employing an internally compensated, fixed-frequency advanced current mode (ACM) control architecture, which while always operating under FCCM, generates output voltages from 0.5 V to 7 V. The device is capable of providing high efficiency while operating at a switching frequency up to 2.2 MHz, making it optimal for designs requiring a small solution size. The fixed frequency controller can operate from 500 kHz to 2.2 MHz and can be synchronized to an external clock using the SYNC pin. Additional features include a high accuracy voltage reference, two-wire remote sense, selectable soft-start times, monotonic startup into prebiased outputs, selectable current limits, adjustable UVLO through the EN pin, and a full suite of fault protections. The TPS543A26 is available in a small 2.5-mm×4.5-mm HotRod WQFN-FCRLF package.

Applications

Wireless and wired communications infrastructure equipment
Optical and fiber networks
Test and measurement
Medical and healthcare

Key features

Fixed-frequency, internally compensated advanced current mode (ACM) control
Integrated 6.5-mΩ and 2-mΩ MOSFETs
4-V to 18-V input voltage range
0.5-V to 7-V output voltage range
True differential remote sense amplifier (RSA)
Three selectable PWM ramp options to optimize the control loop performance
Five selectable switching frequencies: 500 kHz, 750 kHz, 1 MHz, 1.5 MHz, and 2.2 MHz
Synchronizable to an external clock
0.5 V, ±0.5% voltage reference accuracy over full temperature range
Selectable soft-start times: 1 ms, 2 ms, 4 ms, and 8 ms
Monotonic start-up into prebiased outputs
Selectable current limits to support 16-A and 12-A operation
Enable with adjustable input undervoltage lockout
Power-good output monitor
Output overvoltage, output undervoltage, input undervoltage, overcurrent, and overtemperature protection
-40°C to 150°C operating junction temperature
2.5-mm×4.5-mm, 17-pin WQFN-HR package with 0.5-mm pitch
Lead-free (RoHS compliant)
Pin compatible with the TPS543B22 and TPS543A22
PSpice and SIMPLIS models available
