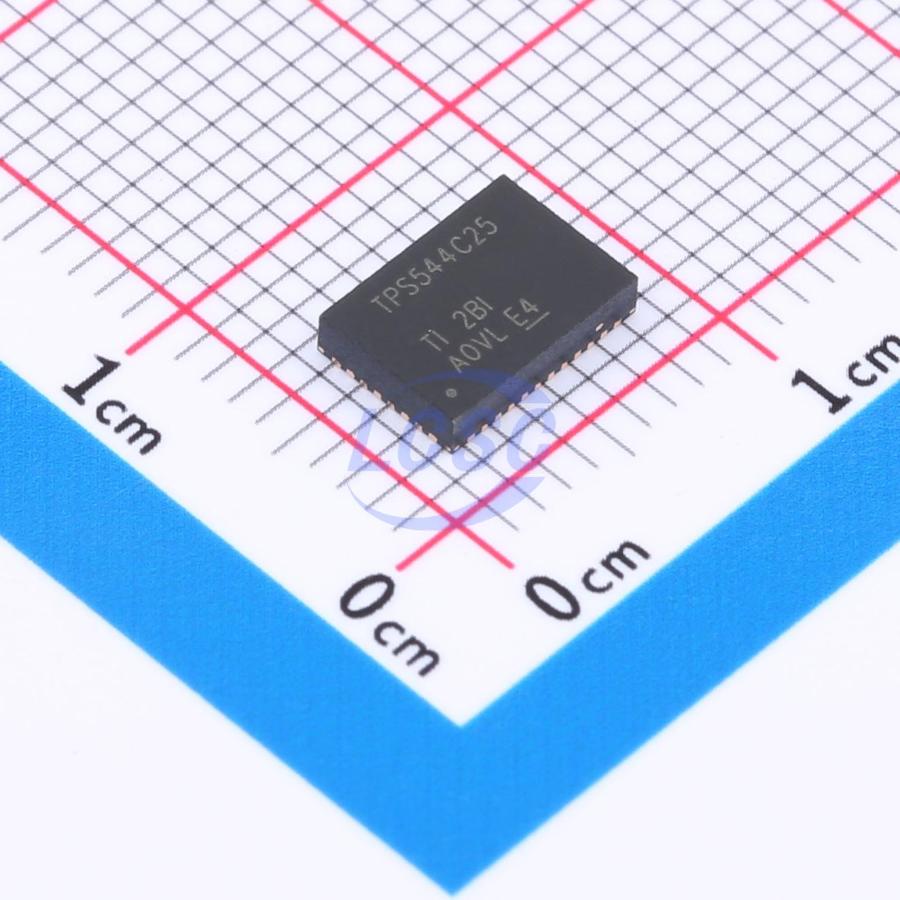

TPS544C25RVFR

The TPS544x25 device is a non-isolated DC/DC converter in a 5mm×7mm package that complies with the PMBus 1.2 specification. It features integrated FETs and can operate at high frequencies, delivering an output current of 20A or 30A. The integrated NexFET power stage and optimized drivers provide high-frequency, low-loss switching, enabling highly dense power supply solutions. The PMBus interface supports the AVS function through VOUT_COMMAND, and also enables flexible converter configuration and monitoring of key parameters, including output voltage, current, and optional external temperature. The response to fault conditions can be set to restart, latch, or ignore, depending on system requirements.

Applications

• Test and measurement instruments
• Ethernet switches, optical switches, routers, base stations
• Servers
• Enterprise-grade storage SSDs
• High-density power solutions

Key features

• PMBus 1.2 compliant converter: 20A and 30A
• Input voltage range: 4.5V to 18V
• Output voltage range: 0.5V to 5.5V
• 5mm×7mm LQFN package
• Single thermal pad
• Integrated 5.5mΩ and 2.0mΩ stacked NexFET power stage
• 500mV to 1500mV reference voltage for AVS and margining via PMBus, 0.5% accuracy at ≥600mV
• Lossless low-side MOSFET current sensing
• Voltage mode control with input feedforward
• Differential remote sensing
• Single start-up to pre-biased output
• Output voltage and output current reporting
• External temperature sensing transistor using 2N3904
• PMBus-programmable VOUT_COMMAND and AVS VOUT slew rate
• Overcurrent protection with thermal compensation
• UVLO, soft-start, and soft-stop
• PGOOD, OV, UV, OT fault response
• Turn-on and turn-off delay
• Thermal shutdown
• Pin-selectable switching frequency: 200kHz to 1MHz
• Synchronization to external clock frequency
• Package-compatible 20A and 30A converters
