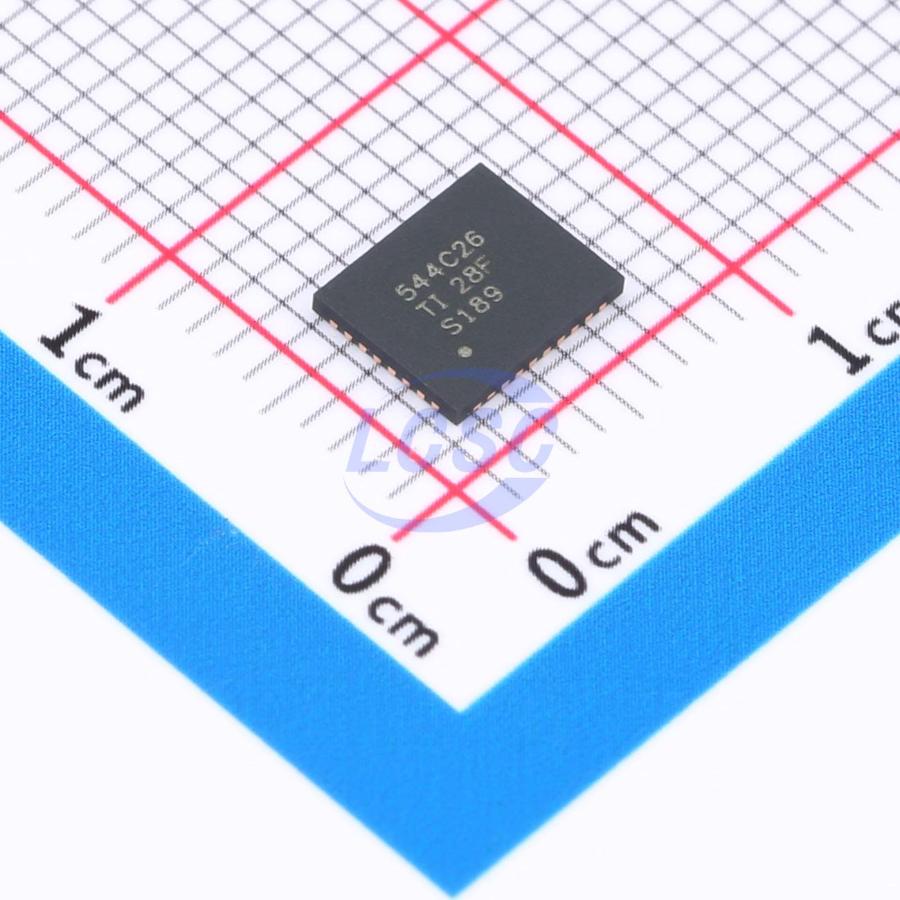

TPS544C26RXXR

600kHz~1.2MHz Step-down type Adjustable 35A 250mV~3.04V WQFN-37-EP(6x5) Voltage Regulators - DC DC Switching Regulators RoHS

WQFN-37-EP(6x5)ROHS3 CompliantActive

TPS544C26 4-V to 16-V Input, 35-A Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: TPS544C26RXXR
Store part #: C6560476
Package / case: WQFN-37-EP(6x5)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C6560476

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹1,760.24	₹1,760.24
10+	₹1,682.82	₹16,828.20
30+	₹1,548.99	₹46,469.70
100+	₹1,432.12	₹1,43,212.00

Quantity (min 1)

1 × ₹1,760.24

₹1,760.24

excl. GST

₹2,077.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per bag

TPS544C26RXXR

₹1,760.24 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 600kHz~1.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Adjustable soft-start;Operating status indication;Overcurrent Protection;Built-in LDO regulator;Output voltage differential sensing
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4V~16V
Switch tube (built-in/external): Built-in
Output Current: 35A
Output Voltage: 250mV~3.04V
Quiescent Current: 7.9mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Bag-packed
Standard pack: 3,000 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 0.096 g

Overview

The TPS544C26 device is a highly integrated buck converter with D-CAP+ control topology for the fast transient response. All programmable parameters can be configured by the I2C interface and stored in NVM as the new default values to minimize the external component count. These features make the device well-suited for space-constrained applications. The TPS544C26 device is designed to work with Intel CPUs and fits well for single-phase, low-to-mid current SVID rails in Intel’s server and SoC platforms. Fault management and status reports for the Overcurrent limit, VOUT OVF/UVF, and OTF are provided on the device. The TPS544C26 device provides a full set of telemetry, including VOUT, IOUT, and IC temperature. Additionally, input power monitoring through an external sensing resistor is provided for board-level power management. The TPS544C26 device is a lead-free device and is RoHS compliant without exemption.

Applications

Server and cloud-computing POLs
Hardware accelerator
Network interface card

Key features

Single chip power supply for SVID rails
Intel VR13 SVID compliant
I2C interface with NVM for configuration, telemetry (V/I/T) and fault reporting
Input power monitoring for DDR5 memory RAPL
Integrated 4.0 mΩ and 1.0 mΩ MOSFETs for 35-A continuous current operation
Supports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltage
VOUT programmable from 0.25 V to 3.04 V
Precision voltage reference and differential remote sense for high output accuracy
±0.5% VOUT tolerance from 0°C to 85°C TJ
±1% VOUT tolerance from -40°C to 125°C TJ
D-CAP+ control topology with fast transient response, supporting all ceramic output capacitors
Programmable internal loop compensation including droop
Selectable cycle-by-cycle valley current limit
Selectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operation
Safe start-up into pre-biased outputs
Programmable soft-start time from 1 ms to 16 ms
Programmable soft-stop time from 0.5 ms to 4 ms
Open-drain power-good output (VRRDY) and Catastrophic fault indicator (CAT_FAULT#)
Programmable overcurrent, overvoltage, undervoltage, overtemperature protections
5 mm × 6 mm, 37-pin WQFN-FCRLF package
