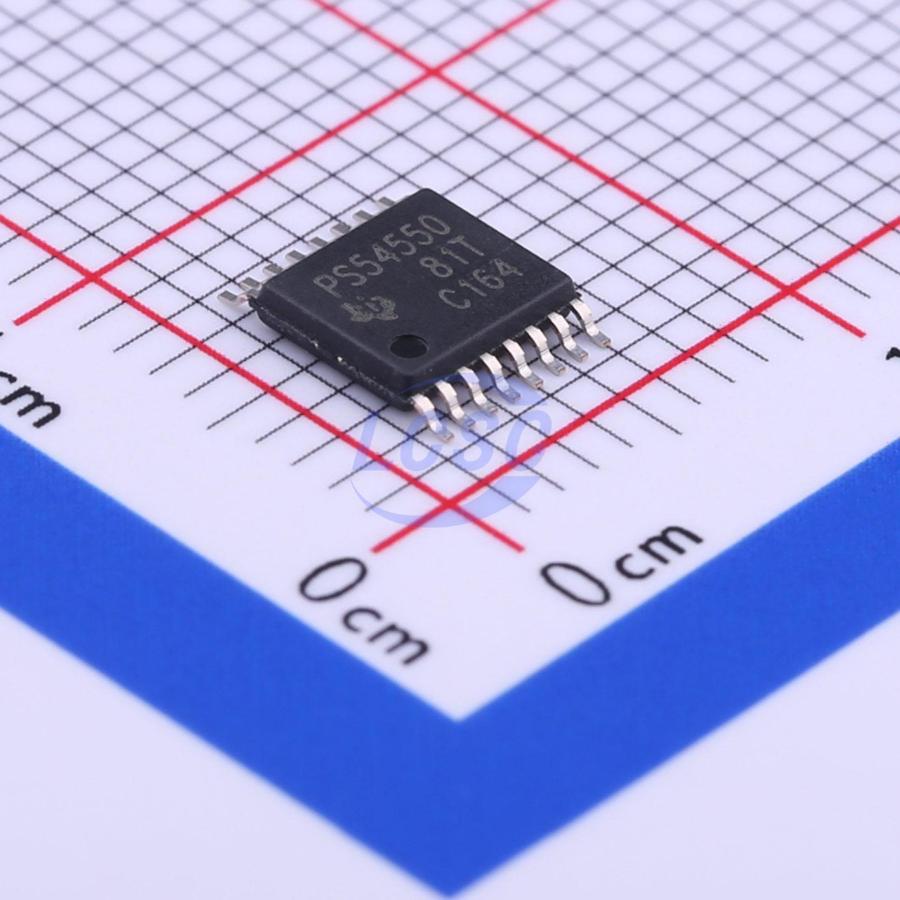

TPS54550PWPR

The TPS54550 is a medium output current synchronous buck PWM converter with an integrated high side MOSFET and a gate driver for an low side external MOSFET. Features include a high performance voltage error amplifier that enables maximum performance under transient conditions and flexibility in choosing the output filter inductors and capacitors. The TPS54550 has an under-voltage-lockout circuit to prevent start-up until the input voltage reaches 4.5 V; a slow-start circuit to limit in-rush currents; and a power good output to indicate valid output conditions. The synchronization feature is configurable as either an input or an output for easy 180° out of phase synchronization. The TPS54550 device is available in a thermally enhanced 16-pin TSSOP (PWP) PowerPAD package.

Applications

• Industrial and Commercial Low Power Systems
• LCD Monitors and TVs
• Computer Peripherals
• Point of Load Regulation for High Performance DSPs, FPGAs, ASICs and Microprocessors

Key features

• 40 mΩ MOSFET Switch for High Efficiency at 6-A (7.5 Peak) Output Current
• Uses External Lowside MOSFET
• Output Voltage Adjustable Down to 0.891 V With ±1% Accuracy
• Synchronizes to External Clock
• 180° Out of Phase Synchronization
• Wide PWM Frequency – Fixed 250 kHz, 500 kHz or Adjustable 250 kHz to 700 kHz
• Adjustable Slow Start
• Adjustable Undervoltage Lockout
• Load Protected by Peak Current Limit and Thermal Shutdown
• 16-Pin TSSOP PowerPAD Package
