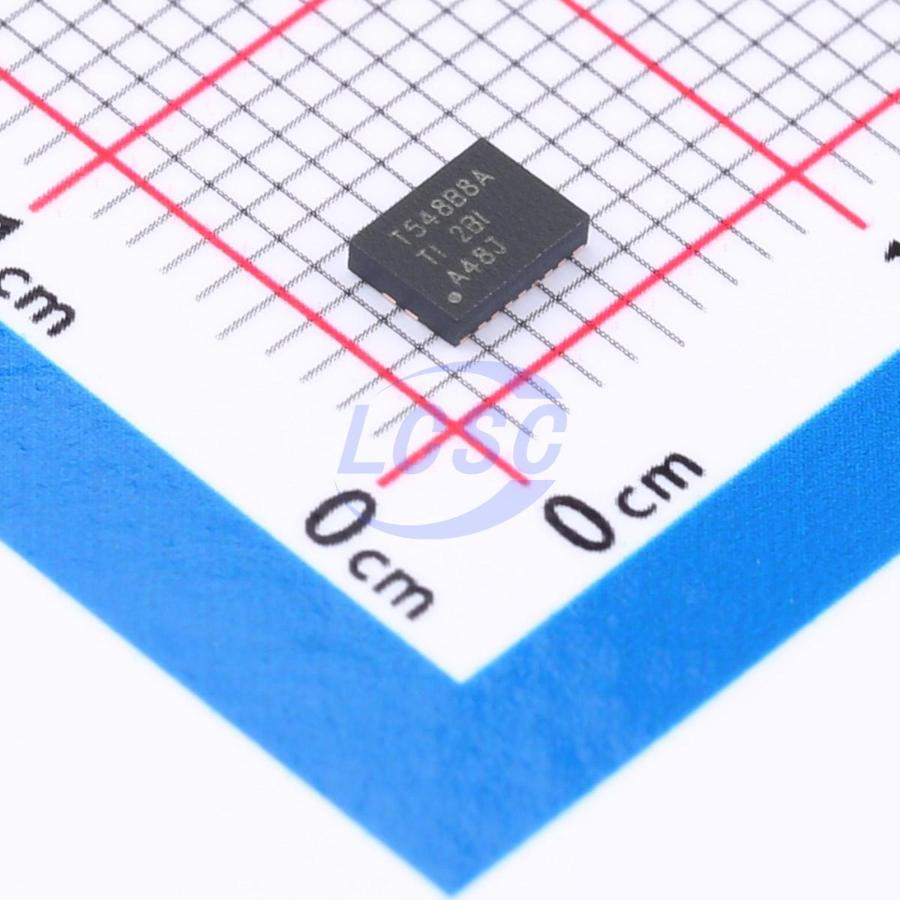

TPS548B28RWWR

Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 20A VQFN-21-HR(3x4)

VQFN-21-HR(3x4)ROHS CompliantActive

2.7V to 16V Input, 20A Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: TPS548B28RWWR
Store part #: C3188716
Package / case: VQFN-21-HR(3x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,899 in stock

#C3188716

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹284.31	₹284.31
10+	₹239.15	₹2,391.50
30+	₹210.90	₹6,327.00
100+	₹182.02	₹18,202.00
500+	₹168.99	₹84,495.00
1,000+	₹163.34	₹1,63,340.00

Quantity (min 1)

1 × ₹284.31

₹284.31

excl. GST

₹335.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS548B28RWWR

₹284.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 1MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Hiccup current limiting;Protection latch;Adjustable soft-start;Output voltage tracking;Output voltage differential sensing;Cable compensation;Built-in LDO regulator;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.7V~16V
Switch tube (built-in/external): Built-in
Output Current: 20A
Output Voltage: 600mV~5.5V
Quiescent Current: 1.007mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.063 g

Overview

The TPS548B28 is a high-efficiency, small-size synchronous buck converter with adaptive on-time D-CAP3 control mode. The device requires no external compensation, making it easy to use with minimal external components. It is well-suited for space-constrained data center applications. The TPS548B28 features differential remote sensing and high-performance integrated MOSFETs, with a high-accuracy (±1%) 0.6V voltage reference across the entire operating junction temperature range. The device offers fast load transient response, precise load and line regulation, skip mode or FCCM operation, and programmable soft-start. The TPS548B28 is a lead-free device, fully RoHS compliant without any exemptions.

Applications

Rack servers and blade servers
Hardware accelerator cards and add-in cards
Data center switches
Industrial PCs

Key features

Input range 4V to 16V, up to 20A, no external bias
Input range 2.7V to 16V, up to 20A, external bias range 3.13V to 3.6V
Output voltage range: 0.6V to 5.5V
Integrated 7.7mΩ and 2.4mΩ MOSFETs supporting 20A continuous output current
Ultra-fast load transient response in D-CAP3™ control mode
All-ceramic output capacitor compatible
Differential remote sensing over –40°C to +125°C junction temperature, VREF = 0.6V±1%
Selectable FCCM or auto-skip Eco-mode™ for improved light-load efficiency
Programmable current limit via RT RIP
Pin-selectable switching frequency: 600kHz, 800kHz, 1MHz
Differential remote sensing for high output accuracy
Programmable soft-start time
External reference input for tracking
Pre-bias startup
Open-drain power good output
Hiccup mode on OC and UV faults, latch-off mode on OV fault
4mm × 3mm 21-pin QFN package
Pin-compatible with 15A TPS548A28
Fully RoHS compliant, no exemptions required
