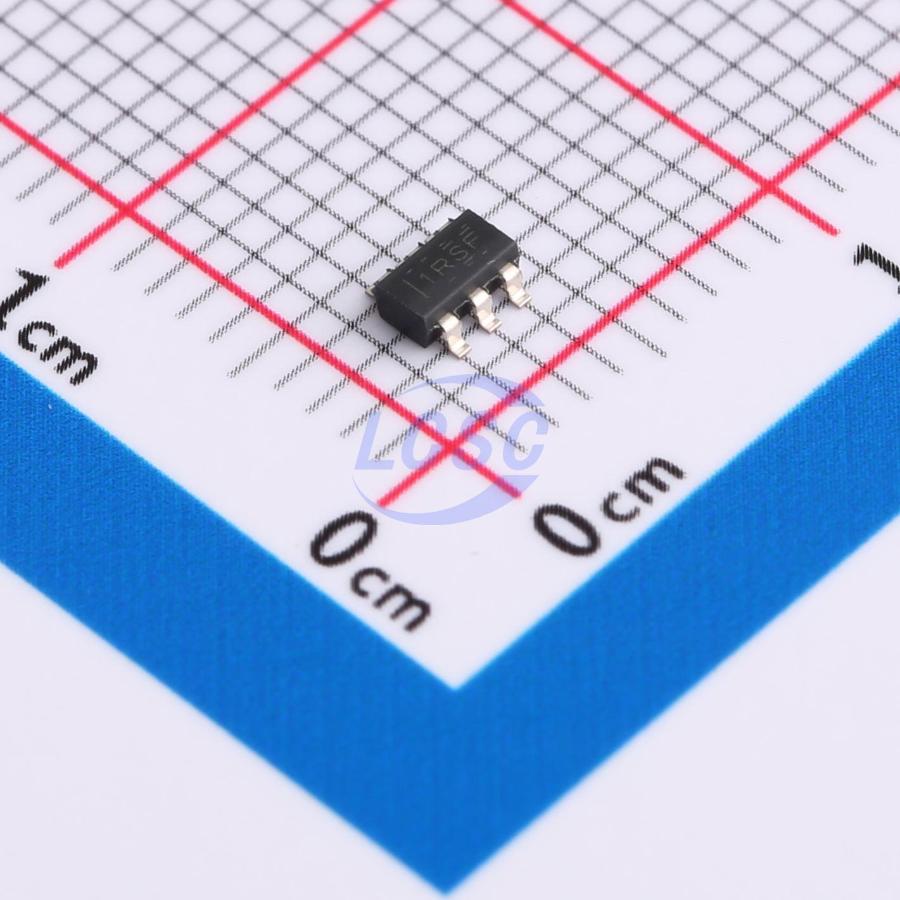

TPS560430YQDBVRQ1

TPS560430-Q1 is an easy-to-use wide VIN synchronous buck converter capable of driving load currents up to 600mA. The device features a wide input range of 4V to 36V, suitable for automotive applications, enabling power regulation from unregulated sources. TPS560430-Q1 operates at a switching frequency of 2.1MHz, supporting the use of relatively small inductors for an optimized solution size. It is available in an Eco-mode version for high efficiency at light loads, and an FPWM version for constant frequency and low output voltage ripple across the full load range. Soft-start and compensation circuits are implemented internally, minimizing the number of external components required. The device features built-in protection functions, including cycle-by-cycle current limiting, hiccup mode short-circuit protection, and thermal shutdown in the event of excessive power dissipation. The TPS560430-Q1 is available in a SOT-23-6 package.

Applications

• Camera
• On-board charger
• Automotive head unit
• USB charger universal wide input voltage power supply

Key features

• Meets automotive application requirements
• AEC-Q100 qualified
• Grade 1: -40°C to 125°C ambient operating temperature range
• ESD HBM classification level 2
• ESD CDM classification level C5
• Designed for demanding automotive applications
• Input voltage range: 4V to 36V
• 600mA continuous output current
• Minimum on-time: 60ns
• 2.1MHz fixed frequency
• 98% maximum duty cycle
• Supports startup with pre-biased output
• Short-circuit protection with hiccup mode
• ±0.5% tolerance voltage reference at room temperature
• Precision enable pin
• Compact and easy-to-use solution
• Integrated synchronous rectification
• Built-in compensation for ease of use
• SOT-23-6 package
• Pin-to-pin compatible packages with two modes
• PFM and forced PWM (FPWM) options
