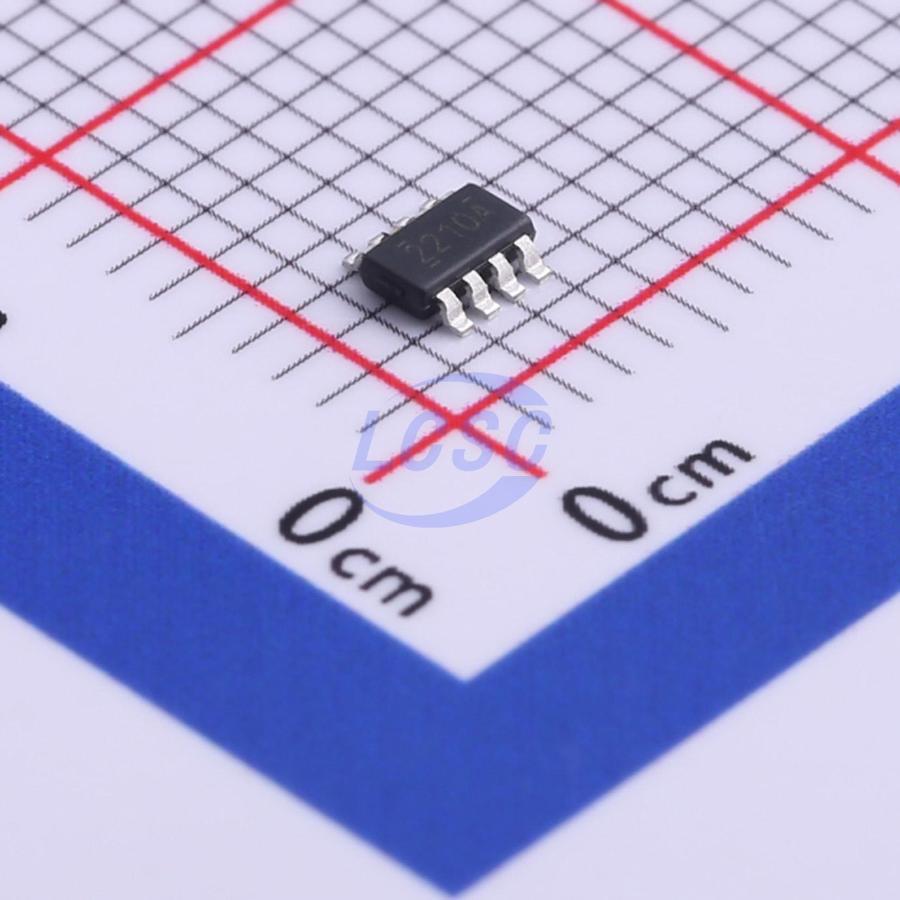

TPS562210ADDFR

650kHz Step-down type Adjustable 2A 760mV~7V TSOT-23-8 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-8ROHS3 CompliantActive

2A and 3A synchronous step-down converters

Manufacturer: TI
Manufacturer part #: TPS562210ADDFR
Store part #: C527687
Package / case: TSOT-23-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,090 in stock

#C527687

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹26.08	₹130.40
50+	₹21.09	₹1,054.50
150+	₹18.95	₹2,842.50
500+	₹16.29	₹8,145.00
3,000+	₹15.10	₹45,300.00
6,000+	₹14.38	₹86,280.00

Quantity (min 5, multiples of 5)

5 × ₹26.08

₹130.40

excl. GST

₹153.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS562210ADDFR

₹130.40 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 650kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Operating status indication;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~17V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 760mV~7V
Quiescent Current: 290uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

The TPS562210A and TPS563210A are simple, easy-to-use, 2-A, 3-A synchronous step-down converters in 8 pin SOT-23 package. The devices are optimized to operate with minimum external component counts and optimized to achieve low standby current. These switch mode power supply (SMPS) devices employ D-CAP2™ mode control providing a fast transient response and supporting both low equivalent series resistance (ESR) output capacitors such as specialty polymer and ultra-low ESR ceramic capacitors with no external compensation components. The devices operate in Advanced Eco-mode™, which maintains high efficiency during light load operation. The TPS562210A and TPS563210A are available in a 8-pin 1.6 × 2.9 (mm) SOT (DDF) package, and specified from -40°C to 85°C of ambient temperature.

Applications

Digital TV Power Supply
High Definition Blu-ray Disc Players
Networking Home Terminal
Digital Set Top Box (STB)

Key features

TPS562210A: 2-A Converter With Integrated 133-mΩ and 80-mΩ FETs
TPS563210A: 3-A Converter With Integrated 68-mΩ and 39-mΩ FETs
D-CAP2™ Mode Control for Fast Transient Response
Advanced Eco-mode™ Pulse-skip
Input Voltage Range: 4.5 V to 17 V
Output Voltage Range: 0.76 V to 7 V
650-kHz Switching Frequency
Low Shutdown Current Less than 10 μA
1% Feedback Voltage Accuracy (25°C)
Startup from Pre-Biased Output Voltage
Cycle By Cycle Over-current Limit
Hiccup-mode Under Voltage Protection
Non-latch OVP, UVLO and TSD Protections
Adjustable Soft Start
Power Good Output
