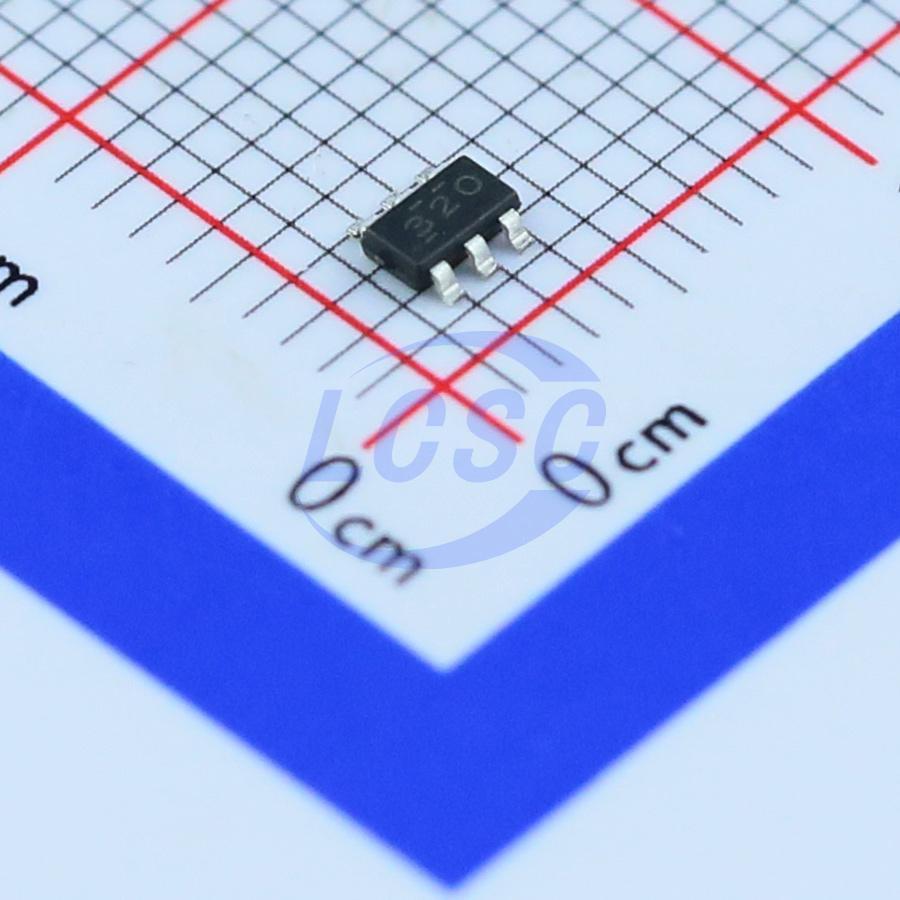

TPS563200DDCR

The TPS562200 and TPS563200 are simple, easy-to-use 2A/3A synchronous buck converters in a SOT-23 package. These devices are optimized to operate with a minimum number of external components while achieving low standby current. These SMPS devices employ D-CAP2 mode control to provide fast transient response and support low-ESR output capacitors such as high-polymer capacitors and ultra-low ESR ceramic capacitors without external compensation components. The TPS562200 and TPS563200 can operate in advanced Eco-mode to maintain high efficiency during light-load operation. These devices are available in a 6-pin 1.6mm×2.9mm SOT (DDC) package with an operating ambient temperature range of -40°C to 85°C.

Applications

• Digital TV power supply
• High-definition Blu-ray Disc player
• Network home terminal equipment
• Digital set-top box (STB)

Key features

• D-CAP2™ mode control with 650kHz switching frequency
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.76V to 7V
• Integrated 122mΩ and 72mΩ FETs ('562200)
• Integrated 68mΩ and 39mΩ FETs ('563200)
• Advanced Eco-mode™ pulse skipping
• Low shutdown current (below 10μA)
• 1% feedback voltage accuracy (25°C)
• Pre-biased output startup
• Cycle-by-cycle discontinuous overcurrent limiting
• Non-latching OVP, UVLO, and TSD protection
• Fixed soft-start time: 1ms
