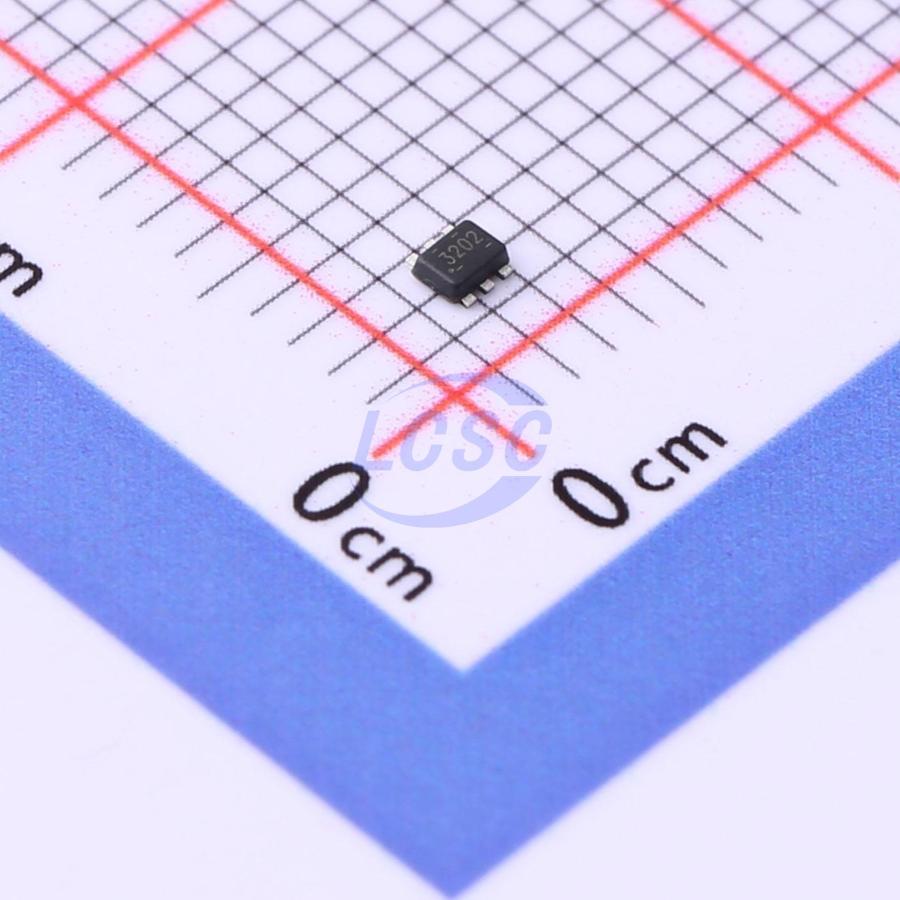

TPS563202DRLR
Buck Switching Regulator IC Adjustable 0.806V~7V 1 Output 3A SOT-563
SOT-563ROHS3 CompliantActive
4.3V to 17V Input, 3A Synchronous Buck Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS563202DRLR
- Store part #
- C1513007
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,775 in stock
#C1513007
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.19 | ₹125.95 |
| 50+ | ₹20.74 | ₹1,037.00 |
| 150+ | ₹18.84 | ₹2,826.00 |
| 500+ | ₹16.47 | ₹8,235.00 |
| 2,500+ | ₹14.17 | ₹35,425.00 |
| 4,000+ | ₹13.53 | ₹54,120.00 |
5 × ₹25.19
₹125.95
excl. GST
₹148.62 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TPS563202DRLR
₹125.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 580kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.3V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 806mV~7V
- Output Current
- 3A
- Quiescent Current
- 380uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.035 g
Overview
The TPS563202 is an easy-to-use 3A synchronous buck converter in a SOT563 package. The device is optimized to minimize the number of external components required for operation and to achieve low standby current. This SMPS device employs D-CAP2 mode control, delivering fast transient response and supporting low-ESR output capacitors — including dedicated polymer capacitors and ultra-low ESR ceramic capacitors — without requiring external compensation components. The TPS563202 operates in ECO mode to maintain high efficiency during light-load operation. It is available in a 6-pin 1.6mm × 1.6mm SOT563 (DRL) package, rated for a junction temperature range of –40°C to 125°C.
Applications
- Digital TV power supply
- Smart speaker
- Cable network digital STB monitoring
Key features
- 3A converter with integrated 95mΩ and 57mΩ FETs
- D-CAP2™ mode control with fast transient response
- Input voltage range: 4.3V to 17V
- Output voltage range: 0.806V to 7V
- ECO mode at light load
- 580kHz typical switching frequency
- Low shutdown current (below 3μA)
- 2% feedback voltage accuracy (25°C)
- Pre-bias support
- Cycle-by-cycle overcurrent limiting
- Discontinuous mode overcurrent protection
- Non-latching UVP and TSD protection
- Fixed soft-start: 1.2ms
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS563202SDRLR#C1518755TI · SOT-563 | TI | SOT-563 | 55 | ₹21.27 · 55 in stock | View |
 | TPS563207SDRLR#C1518756TI · SOT-563 | TI | SOT-563 | 305 | ₹34.94 · 305 in stock | View |
 | TPS563207DRLR#C2877559TI · SOT-563 | TI | SOT-563 | 210 | ₹42.65 · 210 in stock | View |
 | SCT2231TVAR#C2912565SCT · SOT-563-6 | SCT | SOT-563-6 | 2,621 | ₹79.75 · 2,621 in stock | View |
 | SCT2230ATVAR#C918194SCT · SOT-563 | SCT | SOT-563 | 5,220 | ₹29.61 · 5,220 in stock | View |
