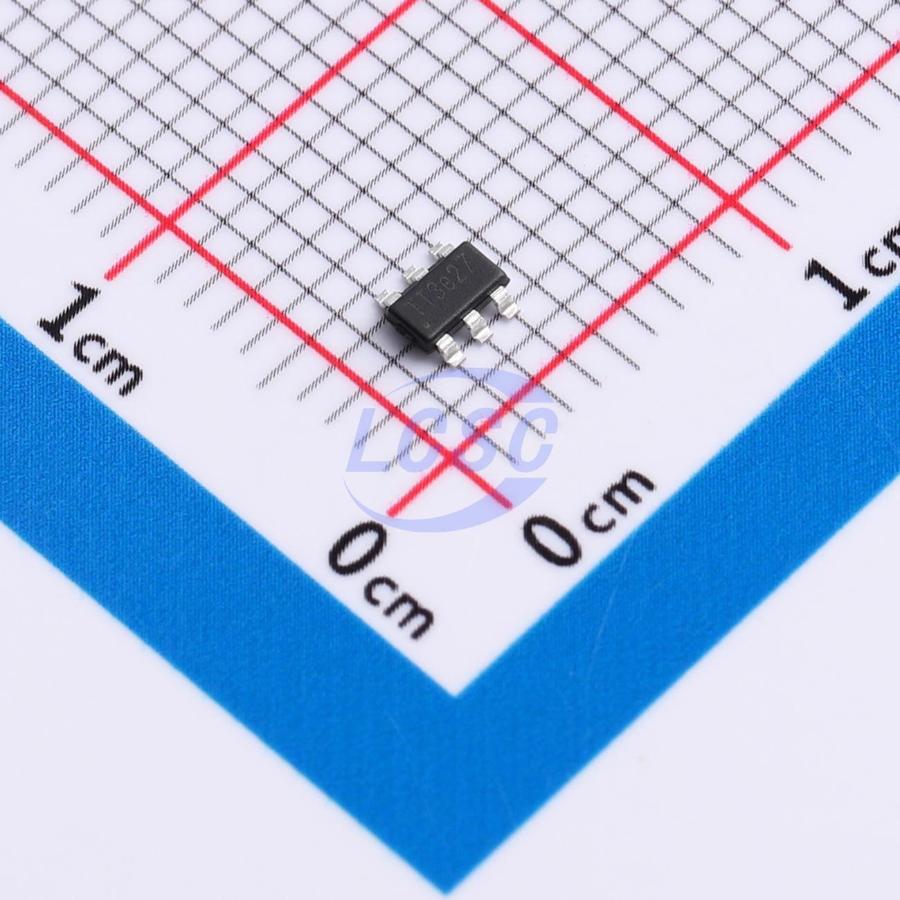

TPS563208DDCR-MS
450kHz~750kHz Step-down type Adjustable 3.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TPS563208DDCR-MS
- Store part #
- C50385430
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C50385430
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.38 | ₹81.90 |
| 50+ | ₹14.37 | ₹718.50 |
| 150+ | ₹13.51 | ₹2,026.50 |
| 500+ | ₹12.44 | ₹6,220.00 |
| 3,000+ | ₹11.96 | ₹35,880.00 |
| 6,000+ | ₹11.67 | ₹70,020.00 |
5 × ₹16.38
₹81.90
excl. GST
₹96.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS563208DDCR-MS
₹81.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 450kHz~750kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 3.5A
- Quiescent Current
- 300uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
TPS563208DDCR-MS is a high-efficiency 600kHz constant on-time control mode synchronous step-down DC-DC converter capable of delivering up to 3A of output current. The device integrates both the main switch and synchronous switch with ultra-low on-resistance, helping to minimize conduction losses. The 600kHz switching frequency contributes to low output voltage ripple and reduces the size of external inductors and capacitors. It employs a constant on-time architecture designed to achieve fast transient response in high step-down ratio applications. The TPS563208DDCR-MS requires a minimal number of off-the-shelf standard external components and is available in a RoHS-compliant 6-pin SOT23-6 package.
Applications
- Digital set-top boxes
- Flat-panel TVs and monitors
- Laptops
- Wireless and DSL modems
Key features
- 70mΩ/35mΩ low RDS(ON) internal MOSFETs
- High-efficiency synchronous mode operation
- Wide input voltage range: 3.5V to 18V
- Output voltage adjustable from 0.765V
- 600kHz switching frequency
- Output current up to 3.5A@1.2V
- Constant on-time control for fast transient response
- Power-save mode at light load
- Integrated internal compensation
- Stable operation with low-ESR ceramic output capacitors
- Overcurrent protection with hiccup mode
- Thermal shutdown
- Inrush current limiting and soft-start
- Built-in input overvoltage protection
- SOT23-6 package
