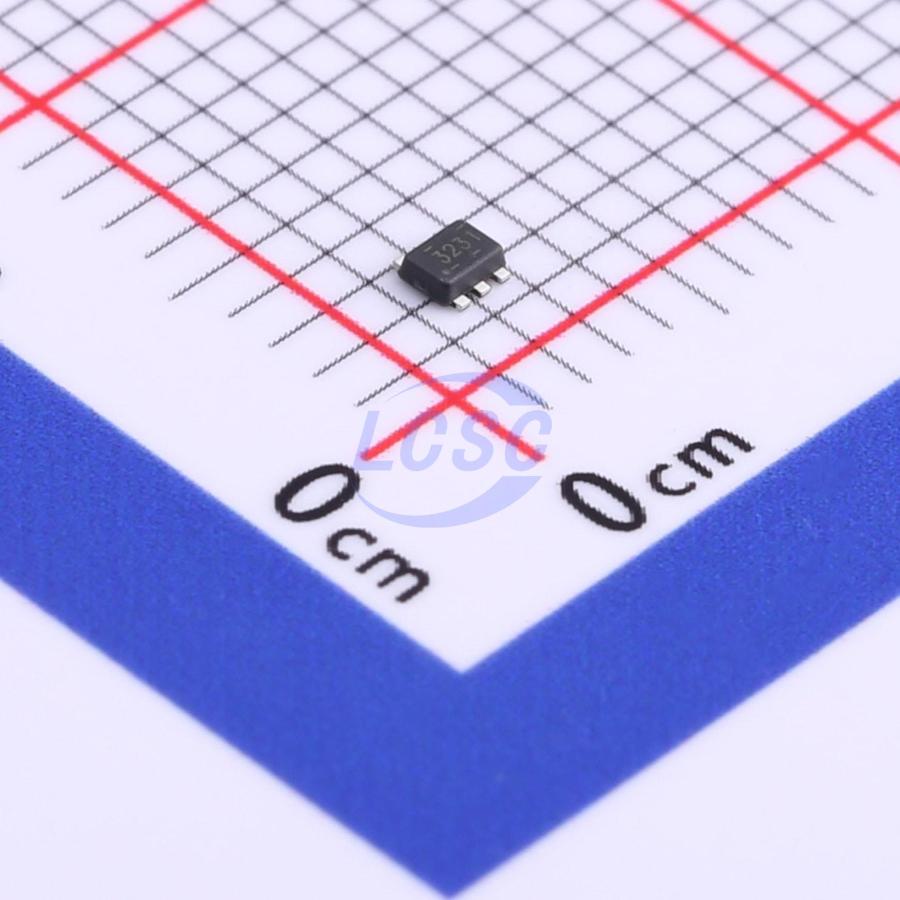

TPS563231DRLR

The TPS563231 is an easy-to-use 3A synchronous buck converter in a SOT563 package. The device is optimized to minimize the number of external components required for operation and to achieve low standby current. These SMPS devices employ D-CAP3 mode control to provide fast transient response and support low-ESR output capacitors such as high-polymer capacitors and ultra-low ESR ceramic capacitors without external compensation components. During light-load operation, the TPS563231 operates in PSM to maintain high efficiency. The TPS563231 is available in a 6-pin 1.6mm × 1.6mm SOT563 (DRL) package and is rated for a junction temperature range of -40°C to 125°C.

Applications

• Digital TV power supplies
• HD Blu-ray disc players
• Network home terminal equipment
• Digital set-top boxes (STB)
• Surveillance

Key features

• 3A converter with integrated 95mΩ and 55mΩ FETs
• D-CAP3™ mode control for fast transient response
• Input voltage range: 4.5V to 17V
• Output voltage range: 0.6V to 7V
• Pulse skip mode
• 600kHz switching frequency
• Low shutdown current (< 12μA)
• 2% feedback voltage accuracy (25°C)
• Start-up from pre-biased output voltage
• Cycle-by-cycle overcurrent limiting
• Discontinuous mode overcurrent protection
• Non-latching UVP and TSD protection
• 6-pin SOT563 package
