TPS563249DDCR

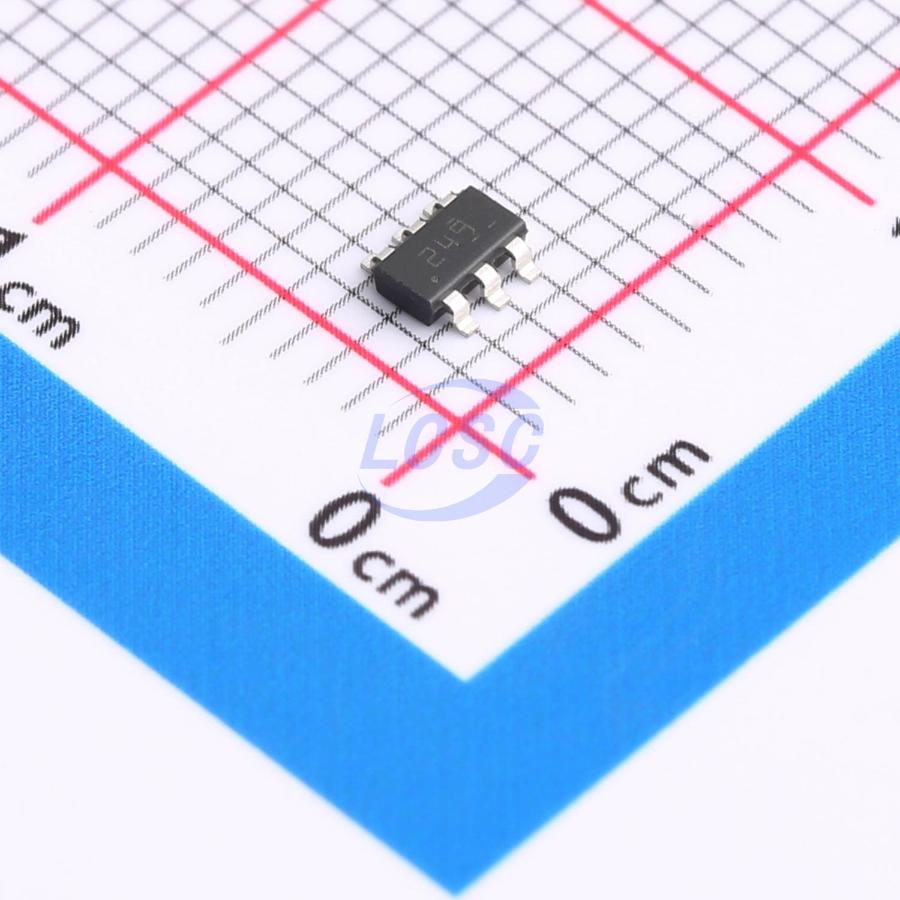

Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 3A TSOT-23-6
TSOT-23-6ROHS3 CompliantActive
17V, 3A, Constant 1.4MHz Synchronous Step-Down Voltage Regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS563249DDCR
- Store part #
- C2071915
- Package / case
- TSOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,125 in stock
#C2071915
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.25 | ₹136.25 |
| 50+ | ₹21.33 | ₹1,066.50 |
| 150+ | ₹18.80 | ₹2,820.00 |
| 500+ | ₹15.63 | ₹7,815.00 |
| 3,000+ | ₹14.22 | ₹42,660.00 |
| 6,000+ | ₹13.38 | ₹80,280.00 |
5 × ₹27.25
₹136.25
excl. GST
₹160.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS563249DDCR
₹136.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.4MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~7V
- Output Current
- 3A
- Quiescent Current
- 2.5uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.019 g
Overview
TPS563249 is a simple, easy-to-use 3A synchronous buck converter in a SOT-23 package. The device is optimized to minimize external components required for operation and to achieve low standby current. This switching regulator uses D-CAP3 mode control to provide fast transient response and supports low ESR output capacitors such as high-polymer capacitors and ultra-low ESR ceramic capacitors without requiring external compensation components. The TPS563249 operates in forced continuous conduction mode (FCCM), maintaining a fixed 1.4MHz switching frequency during light-load operation while eliminating system interference. The TPS563249 is available in a 6-pin 1.6mm×2.9mm SOT (DDC) package with a rated junction temperature range of -40°C to 125°C.
Applications
- Broadband modems
- Access point networks
- Wireless routers
- Security surveillance
- TVs, set-top boxes
Key features
- 3A converter integrating 70mΩ and 30mΩ FETs
- D-CAP3™ mode control for fast transient response
- Input voltage range: 4.5V to 17V
- Output voltage range: 0.6V to 7V
- Forced continuous conduction mode
- Constant 1.4MHz switching frequency
- Low shutdown current (below 10μA)
- 1% feedback voltage accuracy (25°C)
- Start-up from pre-biased output voltage
- Cycle-by-cycle overcurrent limiting
- Discontinuous mode overcurrent protection
- Non-latching undervoltage protection (UVP) and thermal shutdown (TSD)
- Fixed soft-start time: 1.7ms
