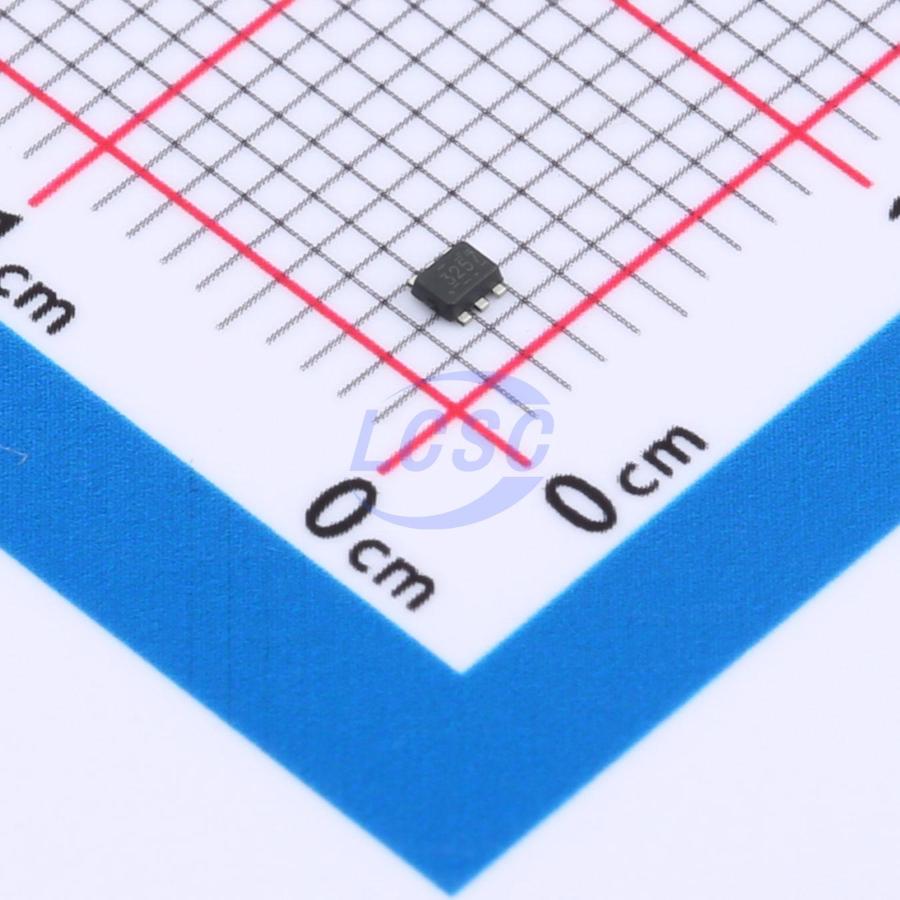

TPS563257DRLR

The TPS56325x is a simple, easy-to-use, high efficiency, high power density, synchronous buck converter with input voltage ranging from 3V to 17 V and supports up to 3-A continuous current at output voltages between 0.6V and 10V. The TPS56325x employs D-CAP3 control mode to provide a fast transient response and to support low-ESR output capacitors with no requirement for external compensation. The device can support up to 95% duty cycle operation. Integrated bootstrap capacitor helps achieve single layer PCB and can save total BOM cost. The TPS563252 operates in Eco-mode, which maintains high efficiency during light loading. The TPS563257 operates in FCCM mode, which keeps the same frequency and lower output ripple during all load conditions. The device integrates complete protection through OVP, OCP, UVLO, OTP, and UVP with hiccup. The device is available in 1.6mmx1.6mm SOT-563 package. The junction temperature is specified from -40℃ to 125℃.

Applications

• WLAN/Wi-Fi access point, switch, router
• Pro-audio, surveillance, drone
• TV, STB and DVR, smart speaker

Key features

• Configured for a wide range of applications
• 3-V to 17-V input voltage range
• 0.6-V to 10-V output voltage range
• 0.6-V reference voltage
• ±1% reference accuracy at 25°C
• ±1.5% reference accuracy at -40°C to 125°C
• Integrated 55.0-mΩ and 24.3-mΩ MOSFETs
• 100-µA low quiescent current
• 1.2-MHz switching frequency
• Maximum 95% large duty cycle operation
• Precision EN threshold voltage
• 1.6-ms fixed typical soft-start time
• Ease of use and small solution size
• TPS563252 Eco-mode, TPS563257 FCCM mode at light loading
• D-CAP3 control mode
• Easy layout with integrated bootstrap capacitor
• Support start-up with prebiased output
• Open-drain power-good indicator
• Non-latch for OV, OT, and UVLO protection
• Hiccup mode for UV protection
• Cycle-by-cycle OC and NOC protection
• 1.6-mm × 1.6-mm SOT-563 package
