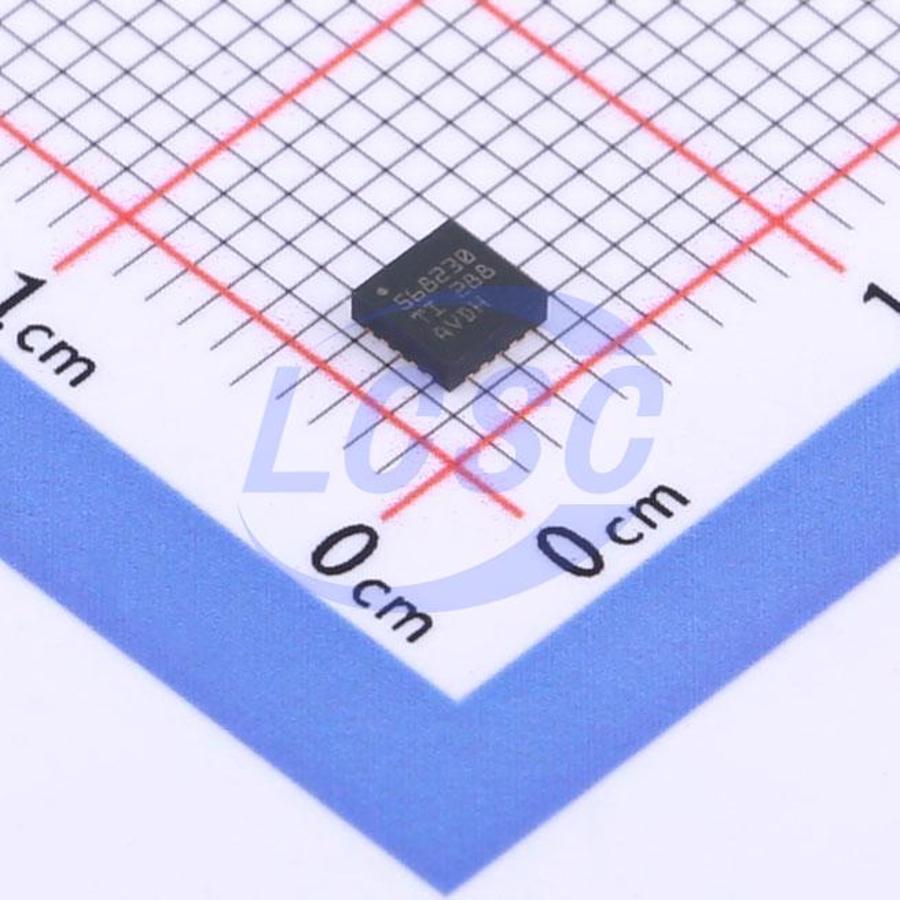

TPS568230RJER
Buck Switching Regulator IC Adjustable 0.6V~7V 1 Output 8A VQFN-20-EP(3x3)
VQFN-20-EP(3x3)ROHS3 CompliantActive
4.5V to 18V input, 8A synchronous step-down voltage regulator
- Manufacturer
- TI
- Manufacturer part #
- TPS568230RJER
- Store part #
- C2878938
- Package / case
- VQFN-20-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,496 in stock
#C2878938
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹199.05 | ₹199.05 |
| 10+ | ₹162.83 | ₹1,628.30 |
| 30+ | ₹144.62 | ₹4,338.60 |
| 100+ | ₹126.62 | ₹12,662.00 |
| 500+ | ₹116.00 | ₹58,000.00 |
| 1,000+ | ₹110.36 | ₹1,10,360.00 |
1 × ₹199.05
₹199.05
excl. GST
₹234.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS568230RJER
₹199.05 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 600kHz;800kHz;1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Operating status indication;Output discharge;Cycle-by-cycle current limiting;Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~7V
- Output Current
- 8A
- Quiescent Current
- 105uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The TPS568230 is a cost-effective, high-voltage input, high-efficiency synchronous buck converter with integrated MOSFETs. The TPS568230 features ULQ (Ultra-Low Quiescent Current) functionality for low bias current. Its operating supply input voltage range is 4.5V to 18V. The device uses DCAP3 control mode to provide fast transient response, good line and load regulation, requires no external compensation, and supports low ESR output capacitors such as dedicated polymer and ultra-low ESR ceramic capacitors. The TPS568230 provides comprehensive overvoltage, undervoltage, overcurrent, overtemperature, and UVLO protection. It integrates a power-good signal, output discharge function, and heavy-load operation capability. The TPS568230 features a MODE pin for selecting the desired operating mode. To achieve high efficiency under light-load conditions, OOA mode and Advanced Eco-mode are available. OOA mode prevents the device from switching below audible frequencies (below 25kHz switching frequency). FCCM also meets stringent output voltage ripple requirements. The TPS568230 supports both internal and external soft-start time options. The internal fixed soft-start time is 1.3ms. Longer soft-start times can be achieved by connecting an external capacitor to the SS pin. The TPS568230 is available in a 20-pin 3.0mm×3.0mm HotRod QFN package, rated for a junction temperature range of -40°C to 125°C.
Applications
- Digital TV, set-top boxes, gaming consoles
- Server, storage, and network point-of-load
- Industrial computers and factory automation applications
- Distributed power systems with typical 5V, 12V, 15V inputs
Key features
- Input voltage range: 4.5V to 18V
- D-CAP3 architecture control for fast transient response
- Output voltage range: 0.6V to 7V
- 0.6V ±1% reference voltage (25°C)
- 8A continuous output current support
- Integrated 19.5mΩ and 9.5mΩ RDS(on) internal power MOSFETs
- ULQ (Ultra-Low Quiescent current) feature for extended battery life
- Selectable operating modes: Force Continuous Conduction Mode (FCCM), Out-of-Audio (OOA) mode, Advanced Eco-Mode
- Selectable switching frequency: 600kHz, 800kHz, and 1MHz
- Up to 90% duty cycle operation
- Adjustable soft-start time (via SS pin)
- Power Good output
- Built-in output discharge function
- Cycle-by-cycle overcurrent protection
- Non-latching protection for fault protection
- Compact 3.0mm × 3.0mm HotRod QFN package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
