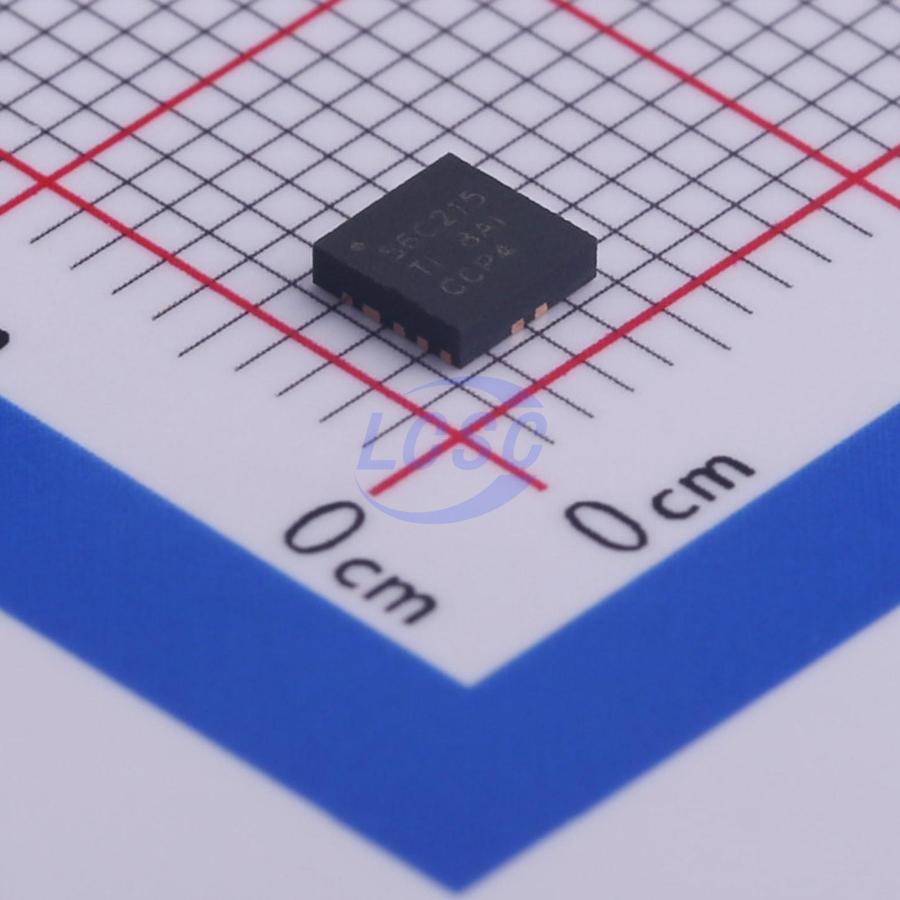

TPS56C215RNNR

The TPS56C215 is the smallest monolithic 12-A synchronous buck converter with an adaptive on-time D-CAP3™ control mode. The device integrates low RDS(on) power MOSFETs that enable high efficiency and offers ease-of-use with minimum external component count for space-conscious power systems. Competitive features include a very accurate reference voltage, fast load transient response, auto-skip mode operation for light load efficiency, adjustable current limit and no requirement for external compensation. A forced continuous conduction mode helps meet tight voltage regulation accuracy requirements for performance DSPs and FPGAs. The TPS56C215 is available in a thermally enhanced 18-pin HotRod™ QFN package and is designed to operate from -40°C to 150°C junction temperature.

Applications

• Server, Cloud-Computing, Storage
• Telecom & Networking, Point-of-Load (POL)
• IPCs, Factory Automation, PLC, Test Measurement
• High end DTV

Key features

• Integrated 13.5-mΩ and 4.5-mΩ MOSFETs
• Support 12-A Continuous IOUT
• 4.5-V Start up without External 5.0-V Bias
• 0.6V+/-1% Reference Voltage across full temperature range
• 0.6 V to 5.5 V Output Voltage Range
• Supports Ceramic Output Capacitors
• D-CAP3™ Control Mode for Fast Transient Response
• Selectable Forced Continuous Conduction Mode (FCCM) for Tight Output Voltage Ripple or AutoSkipping Eco-mode™ for High Light-Load Efficiency
• Selectable FSW of 400 kHz, 800 kHz and 1.2 MHz
• Monotonic Start Up into Pre-biased Outputs
• Two Adjustable Current Limit Settings with Hiccup Re-start
• Optional External 5V bias for Enhanced Efficiency
• Adjustable Soft Start with a Default 1-ms Soft Start Time
• -40°C to 150°C Operating Junction Temperature
• Small 3.5-mm×3.5-mm HotRod™ QFN Package Supported at the WEBENCH™ Design Center
