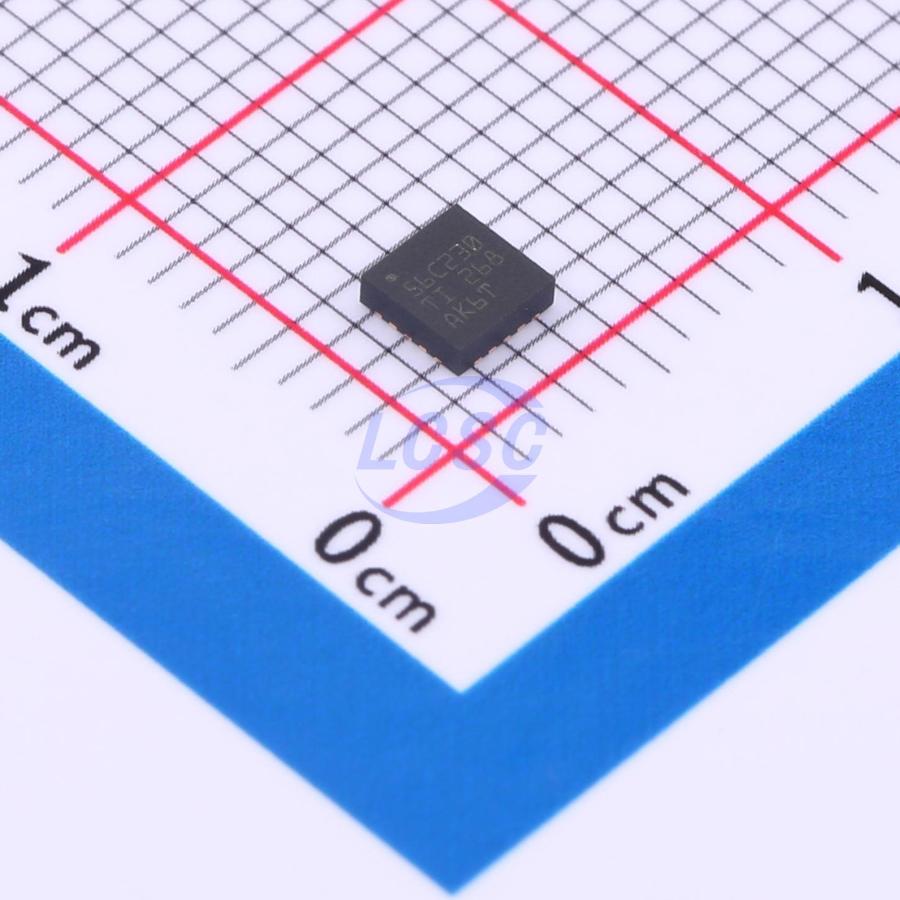

TPS56C230RJER
Buck Switching Regulator IC Adjustable 0.6V~5.5V 1 Output 12A VQFN-20-EP(3x3)
VQFN-20-EP(3x3)ROHS3 CompliantActive
4.5V to 18V, 12A Synchronous Buck Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS56C230RJER
- Store part #
- C1849534
- Package / case
- VQFN-20-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,525 in stock
#C1849534
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹137.70 | ₹137.70 |
| 10+ | ₹112.03 | ₹1,120.30 |
| 30+ | ₹98.97 | ₹2,969.10 |
| 100+ | ₹86.14 | ₹8,614.00 |
| 500+ | ₹79.84 | ₹39,920.00 |
| 1,000+ | ₹75.70 | ₹75,700.00 |
1 × ₹137.70
₹137.70
excl. GST
₹162.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS56C230RJER
₹137.70 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable soft-start;Operating status indication;Output discharge;Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~5.5V
- Output Current
- 12A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.096 g
Overview
TPS56C230 is a high-efficiency synchronous buck converter with integrated FETs. It features low standby current and requires minimal external components, making it suitable for a wide range of applications. The converter employs D-CAP3 control, achieving fast transient response and excellent line and load regulation with internal compensation only. A dedicated circuit supports low-ESR output capacitors such as dedicated polymer capacitors and ultra-low ESR ceramic capacitors. The MODE pin allows selection of Eco-mode or FCCM mode for light-load operation. Eco-mode maintains high efficiency during light-load operation, while FCCM mode maintains low output ripple under light load. The device supports both internal and external soft-start time options, with a fixed internal soft-start time of 1.2ms; a longer soft-start time can be achieved by connecting an external capacitor to the SS pin. The TPS56C230 integrates a power-good indicator and output discharge functionality, providing comprehensive protection including OVP, UVP, OCP, OTP, and UVLO. It is available in a 20-pin 3.0mm×3.0mm HotRod package, rated for a junction temperature range of -40°C to 125°C.
Applications
- Digital television and set-top boxes
- PC and industrial PC
- Cable networks
- Distributed power systems
Key features
- Input voltage range: 4.5V to 18V
- Output voltage range: 0.6V to 5.5V
- 12A continuous output current
- D-CAP3™ architecture control for fast transient response
- ±1% feedback voltage accuracy (25°C)
- Integrated 17mΩ and 5.9mΩ FETs
- Selectable Eco-mode™ and forced continuous conduction mode (FCCM) via MODE pin
- 500kHz switching frequency
- Adjustable soft-start time, default 1.2ms
- Integrated power-good indicator
- Built-in output discharge function
- Cycle-by-cycle overcurrent protection
- Non-latching overvoltage, undervoltage, overtemperature, and UVLO protection
- Operating junction temperature range: -40°C to 125°C
- 20-pin 3.0mm×3.0mm HotRod™ VQFN package
- Pin-to-pin compatible with 8A TPS568230
- Custom designs available using TPS56C230 with WEBENCH® Power Designer
