TPS60110PWPR

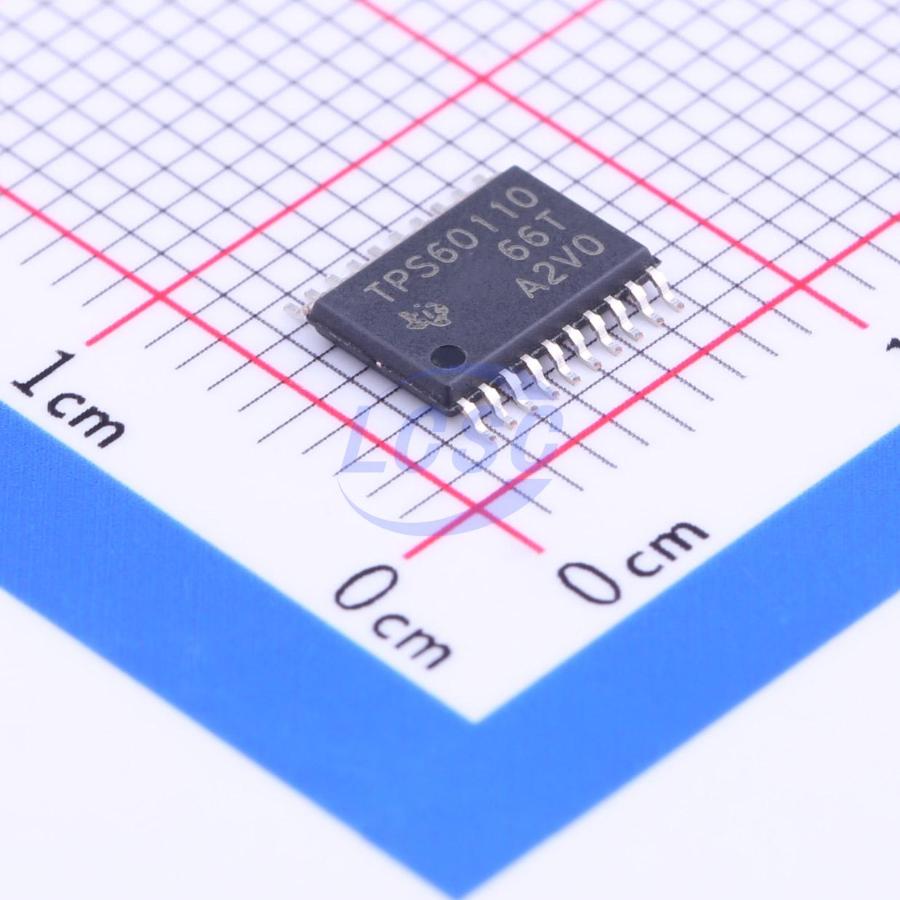

The TPS60110 step-up, regulated charge pump generates a 5-V ±4% output voltage from a 2.7-V to 5.4-V input voltage (three alkaline, NiCd, or NiMH batteries; or, one lithium or lithium ion battery). Output current is 300 mA from a 3-V input. Only four external capacitors are needed to build a complete low-noise dc/dc converter. The push-pull operating mode of two single-ended charge pumps assures the low output voltage ripple as current is continuously transferred to the output. From a 3-V input, the TPS60110 can start into full load with loads as low as 16 Ω. The TPS60110 features either constant frequency mode to minimize noise and output voltage ripple or the power-saving pulse-skip mode to extend battery life at light loads. The TPS60110 switching frequency is 300 kHz. The logic shutdown function reduces the supply current to 1-µA (max) and disconnects the load from the input. Special current-control circuitry prevents excessive current from being drawn from the battery during start-up. This dc/dc converter requires no inductors and has low EMI. It is available in the small 20-pin TSSOP PowerPAD package (PWP).

Applications

• Replaces DC/DC Converters With Inductors in Battery-Powered Applications
• Li-Ion Battery to 5-V Conversion
• Portable Instruments
• Battery-Powered Microprocessor Systems
• Miniature Equipment
• Backup-Battery Boost Converters
• PDAs
• Laptops
• Handheld Instrumentation
• Medical Instruments

Key features

• Up to 300-mA Output Current
• Less Than 10-mVpp Output Voltage Ripple
• No Inductors Required/Low EMI
• Regulated 5-V ±4% Output
• Only Four External Components Required
• Up to 90% Efficiency
• 2.7-V to 5.4-V Input Voltage Range
• 60-µA Quiescent Supply Current
• 0.05-µA Shutdown Current
• Load Isolated in Shutdown
• Space-Saving Thermally-Enhanced TSSOP PowerPAD Package
• Evaluation Module Available (TPS60110EVM−132)
