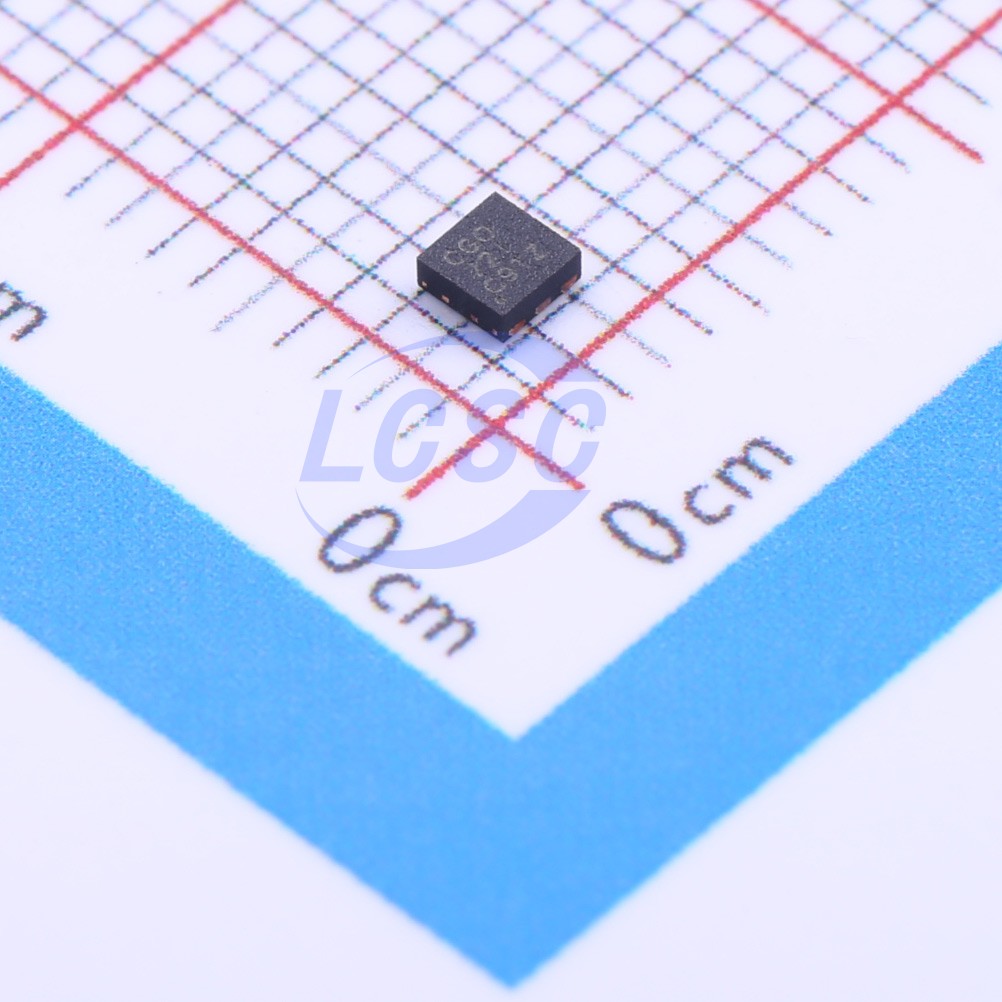

TPS60150DRVR

The TPS60150 device is a switched capacitor voltage converter that produces a regulated, low noise, and low-ripple output voltage of 5 V from an unregulated input voltage. The 5-V output can supply a minimum of 140-mA current. The TPS60150 device operates in skip mode when the load current falls less than 8 mA under typical condition. In skip mode operation, quiescent current is reduced to 90 μA. Only 3 external capacitors are needed to generate the output voltage, therefore saving PCB space. Inrush current is limited by the soft-start function during power on and power transient states. The TPS60150 device operates over a free-air temperature range of -40°C to 85°C. The device is available with a small 2-mm × 2-mm 6-pin SON package (QFN).

Applications

• USB On-the-Go (OTG)
• HDMI
• Portable Communication Devices
• PCMCIA Cards
• Mobile Phones, Smart Phones Handheld Meters

Key features

• 2.7-V to 5.5-V Input Voltage Range
• Fixed Output Voltage of 5 V
• Maximum Output Current: 140 mA
• 1.5-MHz Switching Frequency
• Typical 90-μA Quiescent Current at No Load Condition (Skip Mode)
• X2 Charge Pump
• Hardware Enable and Disable Function
• Built-in Soft Start
• Built-in Undervoltage Lockout Protection
• Thermal and Overcurrent Protection
• Available in a 2-mm×2-mm 6-Pin SON Package with 0.8-mm Height
