TIDatasheet (PDF)

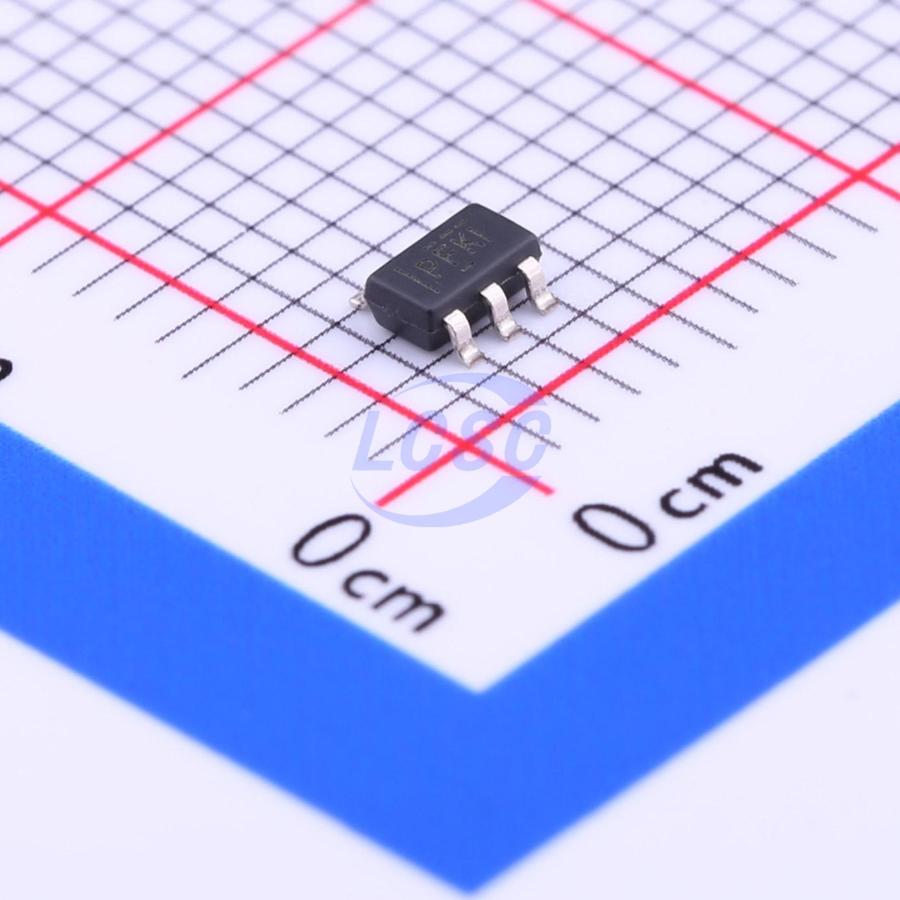

TPS60400DBVR
250kHz Inverted 60mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
Unregulated 60-mA Charge Pump Voltage Inverter
- Manufacturer
- TI
- Manufacturer part #
- TPS60400DBVR
- Store part #
- C9839
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51,987 in stock
#C9839
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.73 | ₹104.73 |
| 10+ | ₹86.92 | ₹869.20 |
| 30+ | ₹74.31 | ₹2,229.30 |
| 100+ | ₹63.89 | ₹6,389.00 |
| 500+ | ₹60.63 | ₹30,315.00 |
| 1,000+ | ₹58.68 | ₹58,680.00 |
1 × ₹104.73
₹104.73
excl. GST
₹123.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS60400DBVR
₹104.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 250kHz
- Function
- Inverted
- Features
- Adaptive switching frequency;Cascade support
- Operating Voltage
- 1.6V~5.5V
- Output Current
- 60mA
- Energy Efficiency
- 90%
- Quiescent Current
- 270uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.054 g
Overview
The TPS6040x family of devices generates an unregulated negative output voltage from an input voltage ranging from 1.6 V to 5.5 V. The devices are typically supplied by a preregulated supply rail of 5 V or 3.3 V. Due to its wide input voltage range, two or three NiCd, NiMH, or alkaline battery cells, as well as one Li - Ion cell can also power them. Only three external 1 - µF capacitors are required to build a complete DC - DC charge pump inverter. Assembled in a 5 - pin SOT - 23 package, the complete converter can be built on a 50 mm² board area. Additional board area and component count reduction is achieved by replacing the Schottky diode that is typically needed for start - up into load by integrated circuitry.
Applications
- LCD Bias
- GaAs Bias for RF Power Amps
- Sensor Supply in Portable Instruments
- Bipolar Amplifier Supply
- Medical Instruments
- Battery - Operated Equipment
Key features
- Inverts Input Supply Voltage
- Up to 60 - mA Output Current
- Only Three Small 1 - µF Ceramic Capacitors Needed
- Input Voltage Range From 1.6 V to 5.5 V
- PowerSave - Mode for Improved Efficiency at Low Output Currents (TPS60400)
- Device Quiescent Current Typical 65 µA
- Integrated Active Schottky - Diode for Start - up Into Load
- Small 5 - Pin SOT - 23 Package
- Evaluation Module Available TPS60400EVM - 178
