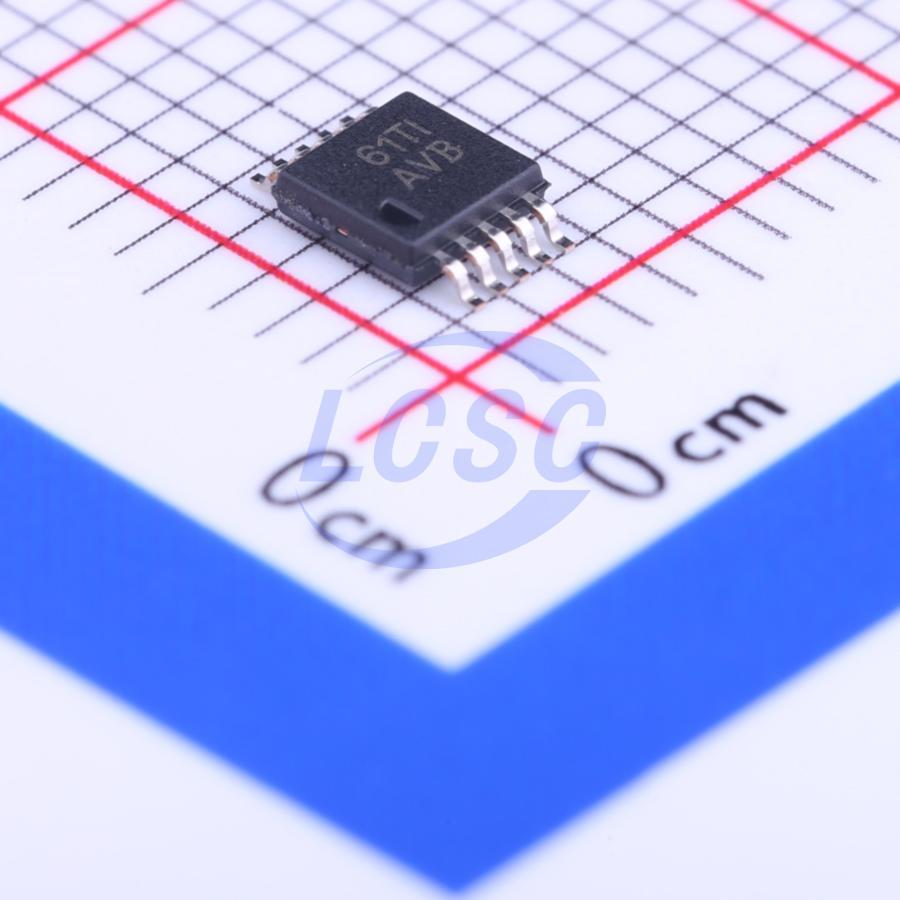

TPS60500DGSR
600kHz Step-down 800mV~3.3V 250mA VSSOP-10-0.5mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
High Efficiency, Step-Down Charge Pump
- Manufacturer
- TI
- Manufacturer part #
- TPS60500DGSR
- Store part #
- C22671
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
728 in stock
#C22671
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.75 | ₹207.75 |
| 10+ | ₹176.01 | ₹1,760.10 |
| 30+ | ₹158.52 | ₹4,755.60 |
| 100+ | ₹138.65 | ₹13,865.00 |
| 500+ | ₹130.01 | ₹65,005.00 |
| 1,000+ | ₹125.91 | ₹1,25,910.00 |
1 × ₹207.75
₹207.75
excl. GST
₹245.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS60500DGSR
₹207.75 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 600kHz
- Function
- Step-down
- Features
- Soft-start;Load disconnect;Overcurrent Protection;Output short-circuit protection;Charge pump / inverting topology switching
- Operating Voltage
- 1.8V~6.5V
- Output Voltage
- 800mV~3.3V
- Output Current
- 250mA
- Energy Efficiency
- 90%
- Quiescent Current
- 75uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.148 g
Overview
The TPS6050x devices are a family of step-down charge pumps that generate a regulated, fixed 3.3-V, 1.8-V, 1.5-V, or adjustable output voltage. Only four small ceramic capacitors are required to build a complete high efficiency dc/dc charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between three different conversion modes. The output can deliver a maximum of 250-mA output current. The power good function supervises the output voltage and goes high when the output voltage rises to 97% of its nominal value.
Applications
- Personal Digital Assistants
- DSP Core Supply
- Cellular Phones
- Portable Instruments
- Internet Audio Player
- PC Peripherals
- USB Powered Applications
Key features
- Regulated 3.3-V, 1.8-V, 1.5-V, or Adjustable Output Voltage
- Up to 250-mA Output Current
- 1.8-V to 6.5-V Input Voltage
- Up to 90% Efficiency
- Output Voltage Tolerance 3% Over Line, Load, and Temperature Variation
- Device Quiescent Current Less Than 40 μA
- Output Voltage Supervisor Included (Power Good)
- Internal Soft Start
- Load Isolated From Battery During Shutdown
- Overtemperature and Overcurrent Protected
- Micro-Small 10-Pin MSOP Package
- EVM Available, TPS60500EVM-193
