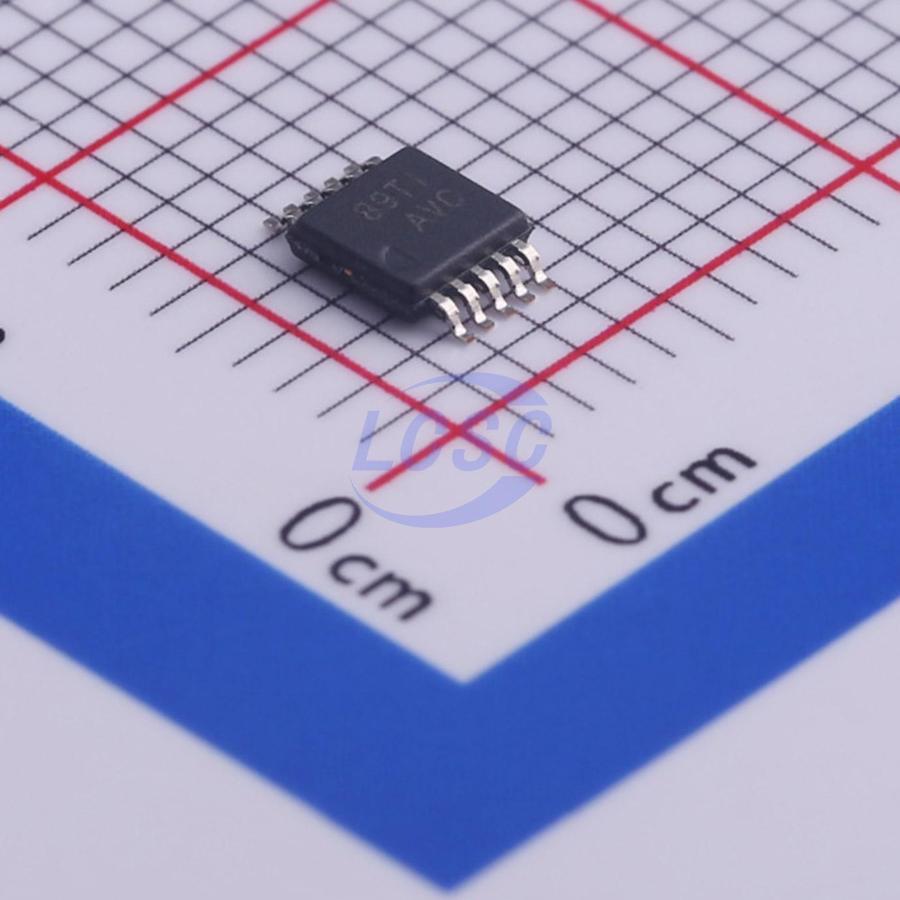

TPS60501DGSR
800kHz Step-down 3.3V 250mA VSSOP-10-0.5mm Voltage Regulators - DC DC Switching Regulators RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
High-Efficiency Step-Down Charge Pump
- Manufacturer
- TI
- Manufacturer part #
- TPS60501DGSR
- Store part #
- C473389
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87 in stock
#C473389
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹205.17 | ₹205.17 |
| 10+ | ₹170.40 | ₹1,704.00 |
| 30+ | ₹151.30 | ₹4,539.00 |
| 100+ | ₹129.63 | ₹12,963.00 |
| 500+ | ₹119.97 | ₹59,985.00 |
| 1,000+ | ₹115.68 | ₹1,15,680.00 |
1 × ₹205.17
₹205.17
excl. GST
₹242.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TPS60501DGSR
₹205.17 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 800kHz
- Function
- Step-down
- Features
- Soft-start;Load disconnect;Charge pump / inverting topology switching;Overcurrent Protection;Output short-circuit protection
- Operating Voltage
- 1.8V~6.5V
- Output Voltage
- 3.3V
- Output Current
- 250mA
- Energy Efficiency
- 90%
- Quiescent Current
- 75uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.058 g
Overview
The TPS6050x devices are a family of switched capacitor voltage converters, designed specifically for space-critical battery-powered applications. The TPS6050x step-down charge pumps generate a regulated, fixed 3.3-V, 1.8-V, 1.5-V, or adjustable output voltage. Only four small ceramic capacitors are required to build a complete high-efficiency DC–DC charge pump converter. To achieve the high efficiency over a wide input voltage range, the charge pump automatically selects between three different conversion modes. The output can deliver a maximum of 250-mA output current. The power good function supervises the output voltage and goes high when the output voltage rises to 97% of the nominal value. The TPS6050x devices come in a micro-small 10-pin VSSOP package.
Applications
- Mobile Phones
- Portable Instruments
- Internet Audio Player
- PC Peripherals USB Powered Applications
Key features
- Wide Input Voltage Range From 1.8 V to 6.5 V
- Regulated 3.3-V, 1.8-V, 1.5-V, or Adjustable Output Voltage
- Up to 250-mA Output Current
- Up to 90% Efficiency
- Output Voltage Tolerance 3% Over Line, Load, and Temperature Variation
- Device Quiescent Current Less Than 40 μA
- Output Voltage Supervisor Included (Power Good)
- Internal Soft Start
- Load Isolated From Battery During Shutdown
- Overtemperature and Overcurrent Protected
- Micro-Small 10-Pin VSSOP Package
- EVM Available, TPS60500EVM-193
