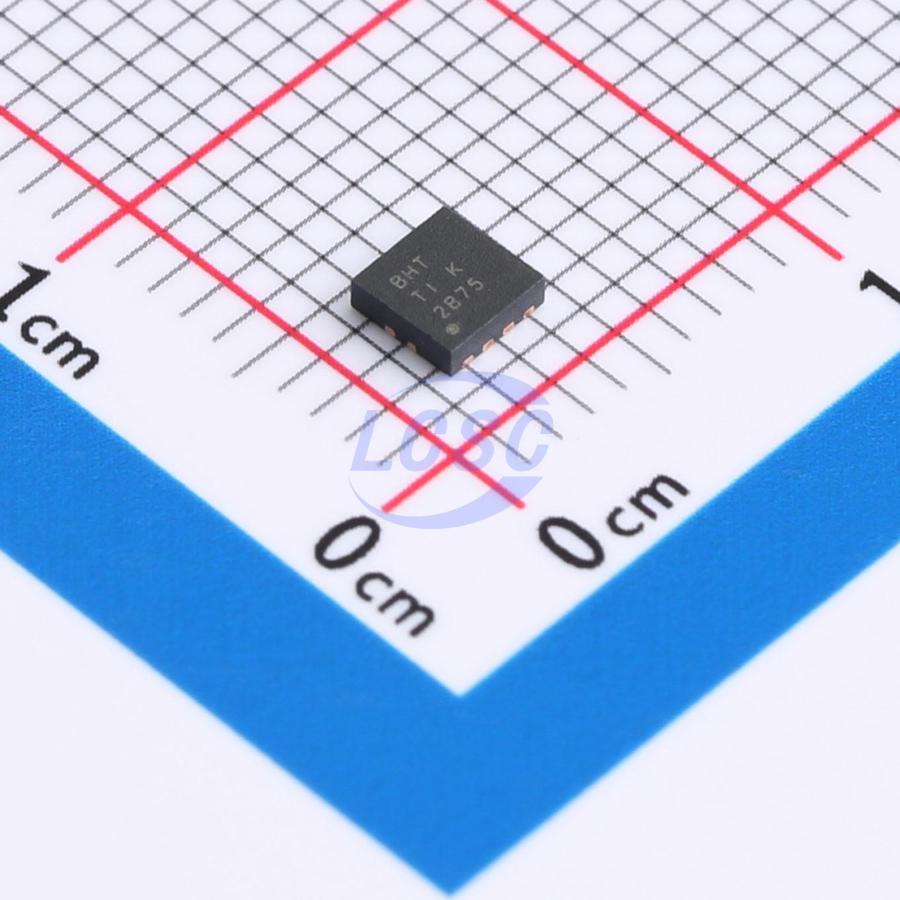

TPS61045DRBR

The TPS61045 device is a high-frequency boost converter with digitally-programmable output voltage and true shutdown. During shutdown, the output is disconnected from the input by opening the internal input switch. This allows a controlled power-up and power-down sequencing of the display. The output voltage can be increased or decreased in digital steps by applying a logic signal to the CTRL pin. The output voltage range, as well as the output voltage step size, can be programmed with the feedback divider network. With a high switching frequency of up to 1 MHz, the TPS61045 device allows the use of small external components, and together, with the small 8-pin VSON package, a minimum system solution size is achieved.

Applications

• LCD Bias Supply for Small to Medium LCD Displays
• OLED Display Power Supply
• PDA, Pocket PC, Smart Phones
• Handheld Devices
• Cellular Phones

Key features

• Input Voltage Range from 1.8 to 6 V
• Output Voltage of up to 28 V Possible
• Up to 85% Efficiency
• Digitally Adjustable Output Voltage Control
• Disconnects Output From Input During Shutdown
• Switching Frequency up to 1 MHz
• No Load Quiescent Current 40 μA Typical
• Thermal Shutdown Mode
• Shutdown Current 0.1 μA Typical
• Available in Small 3-mm × 3-mm VSON Package
