HGSEMI

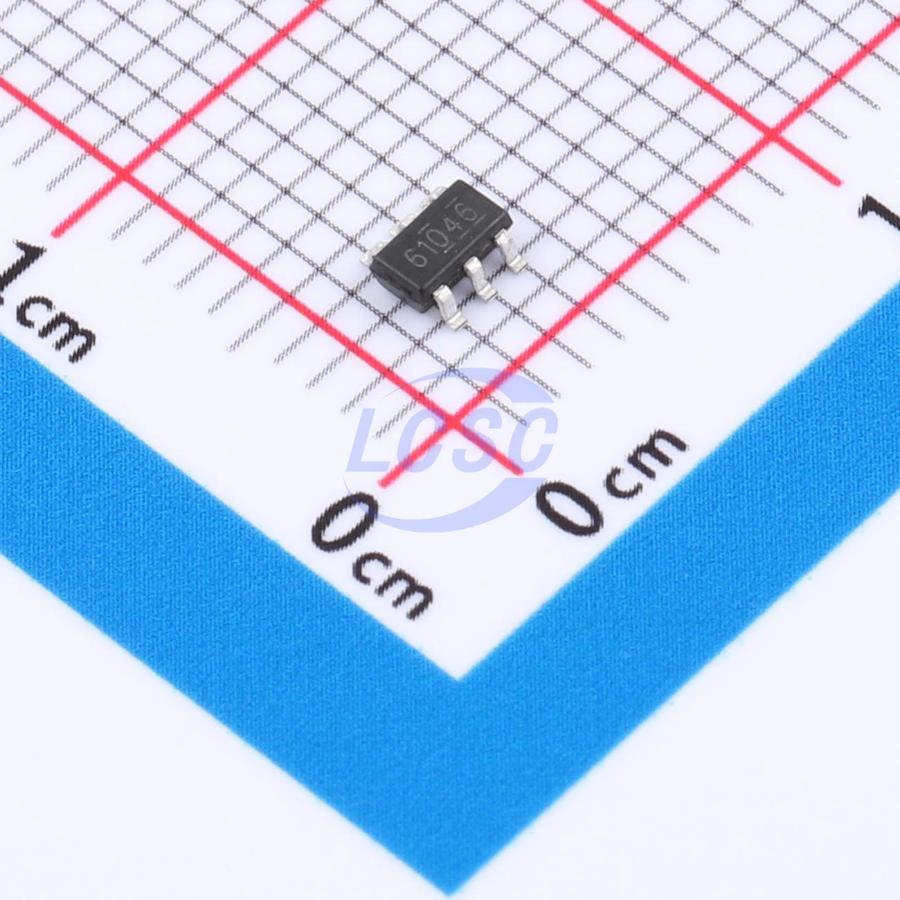

TPS61046M6/TR

Boost 1MHz Adjustable 2.5A SOT-23-6 Voltage Regulators - DC DC Switching Regulators

SOT-23-6RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: TPS61046M6/TR
Store part #: C49384174
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,920 in stock

#C49384174

Stock & price checked 37 h ago

Quantity	Unit price	Pack price
5+	₹21.55	₹107.75
50+	₹18.83	₹941.50
150+	₹17.65	₹2,647.50
500+	₹16.19	₹8,095.00
3,000+	₹15.55	₹46,650.00
6,000+	₹15.15	₹90,900.00

Quantity (min 5, multiples of 5)

5 × ₹21.55

₹107.75

excl. GST

₹127.15 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61046M6/TR

₹107.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Number of Outputs: 1
Function: Boost
Frequency - Switching: 1MHz
Features: Adjustable current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.6V~6V
Switch tube (built-in/external): Built-in
Output Current: 2.5A
Quiescent Current: 190uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.047 g

Overview

This device is a current-mode boost DC-DC converter. Its pulse width modulation circuit incorporates a built-in 0.2Ω power MOSFET, enabling high efficiency in the voltage regulator. The internal compensation network minimizes the number of external components to as few as 6. The non-inverting input of the error amplifier is connected to a precision 0.6V reference voltage, and the integrated internal soft-start function helps reduce inrush current. The device is available in a SOT-23-6 package, helping to conserve PCB space for other applications.
