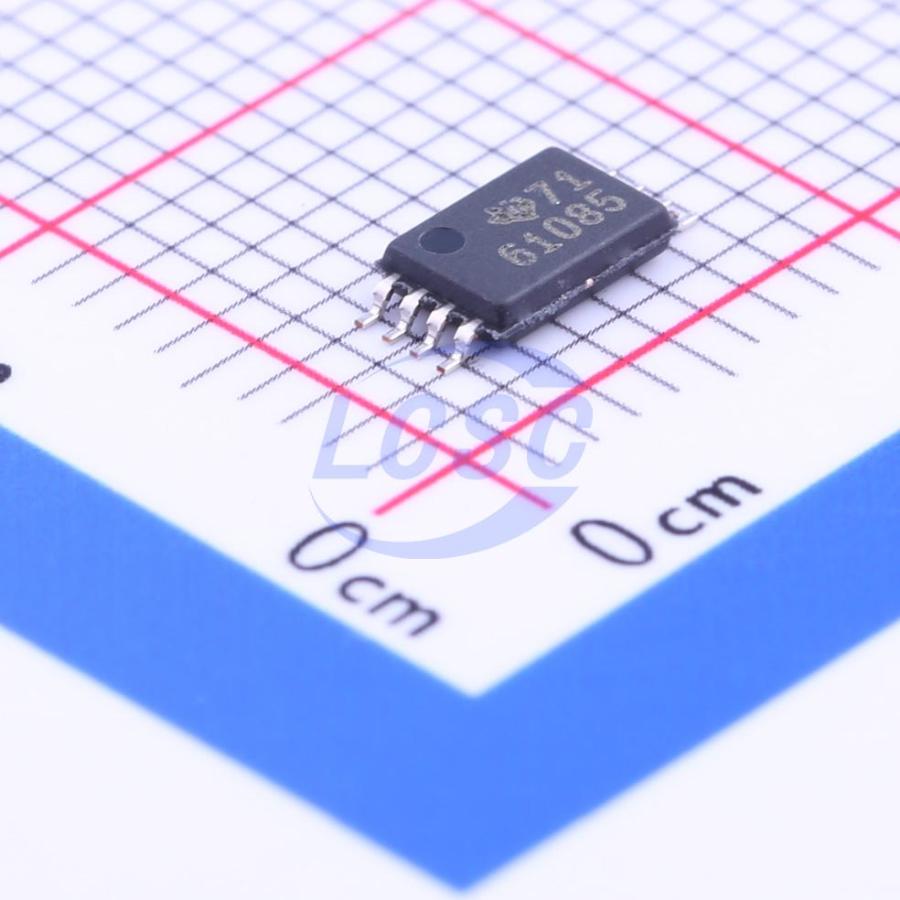

TPS61085TPWR
Boost Adjustable 2.8V~18.5V 2A TSSOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
TSSOP-8ROHS3 CompliantActive
18.5V Output, 2A Switch Current, 650kHz/1.2MHz Selectable Switching Frequency Boost DC-DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61085TPWR
- Store part #
- C75775
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C75775
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.63 | ₹175.63 |
| 10+ | ₹145.93 | ₹1,459.30 |
| 30+ | ₹129.67 | ₹3,890.10 |
| 100+ | ₹111.24 | ₹11,124.00 |
| 500+ | ₹103.00 | ₹51,500.00 |
| 1,000+ | ₹99.30 | ₹99,300.00 |
1 × ₹175.63
₹175.63
excl. GST
₹207.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
TPS61085TPWR
₹175.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 650kHz;1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.8V~18.5V
- Output Current
- 2A
- Quiescent Current
- 70uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.205 g
Overview
The TPS61085 device is a high-frequency highefficiency DC-to-DC boost converter with an integrated 2-A, 0.13-Ω power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors, and provides fast transient response. The external compensation allows optimizing the regulator for application conditions. A capacitor connected to the specific soft-start pin minimizes inrush current at start-up.
Applications
- Handheld Devices
- GPS Receiver
- Digital Still Camera
- Portable Applications
- DSL Modem
- PCMCIA Card TFT LCD Bias Supply
Key features
- 2.3-V to 6-V Input Voltage Range
- 18.5-V Boost Converter With 2-A Switch Current
- 650-kHz or 1.2-MHz Selectable Switching Frequency
- Adjustable Soft Start
- Thermal Shutdown
- Undervoltage Lockout
- 8-Pin VSSOP and TSSOP Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS61085PWR#C13505TI · TSSOP-8 | TI | TSSOP-8 | 862 | ₹202.27 · 862 in stock | View |
| TPS61085PW#C2871224TI · TSSOP-8 | TI | TSSOP-8 | On request | ₹355.54 · 0 in stock | View | |
