TIDatasheet (PDF)

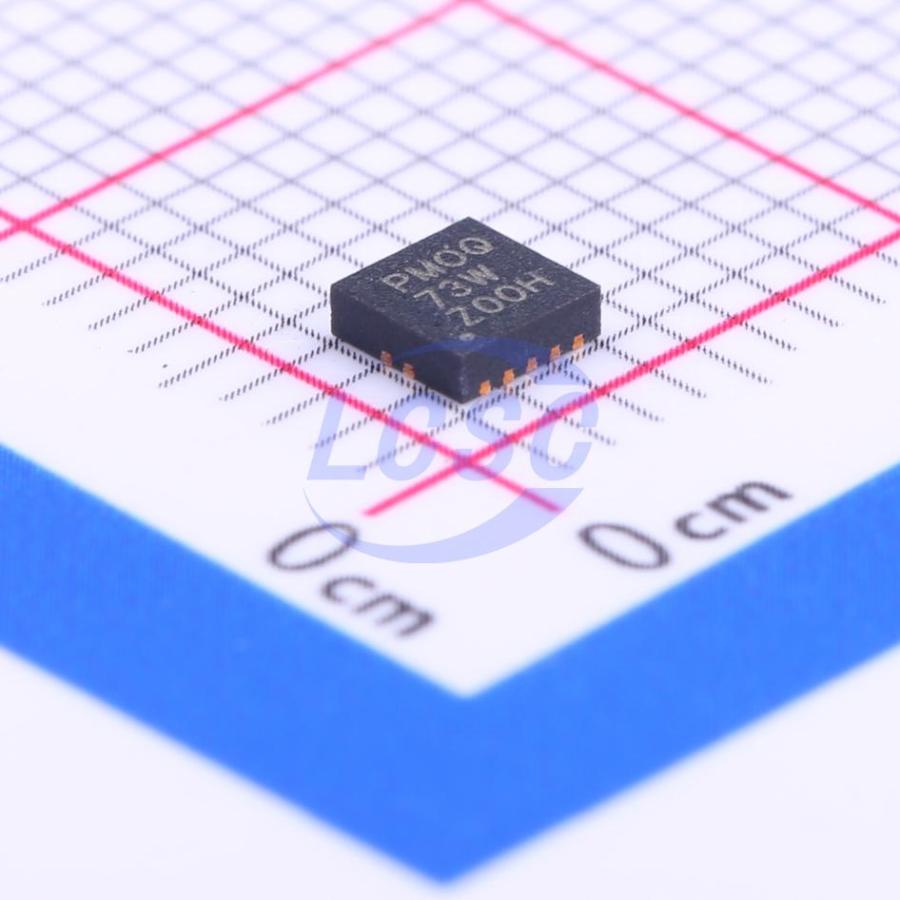

TPS61087DRCR
Boost Adjustable 3V~18.5V 3.2A VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS
VSON-10-EP(3x3)ROHS CompliantActive
650kHz, 1.2MHz, 18.5V Step-Up DC-DC Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61087DRCR
- Store part #
- C112172
- Package / case
- VSON-10-EP(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,026 in stock
#C112172
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.78 | ₹164.78 |
| 10+ | ₹139.17 | ₹1,391.70 |
| 30+ | ₹126.13 | ₹3,783.90 |
| 100+ | ₹113.54 | ₹11,354.00 |
| 500+ | ₹107.03 | ₹53,515.00 |
| 1,000+ | ₹103.13 | ₹1,03,130.00 |
1 × ₹164.78
₹164.78
excl. GST
₹194.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61087DRCR
₹164.78 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 650kHz;1.2MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Adjustable soft-start;External compensation;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3V~18.5V
- Output Current
- 3.2A
- Quiescent Current
- 100uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.077 g
Overview
The TPS61087 is a high-frequency, high-efficiency DC-DC converter with an integrated 3.2-A, 0.13-Ω power switch capable of providing an output voltage up to 18.5 V. The selectable frequency of 650 kHz or 1.2 MHz allows the use of small external inductors and capacitors and provides fast transient response. The external compensation allows optimization of the application for specific conditions. A capacitor connected to the soft-start pin minimizes inrush current at startup.
Applications
- Handheld Devices
- GPS Receivers
- Digital Still Cameras
- Portable Applications
- DSL Modems
- PCMCIA Cards
- TFT LCD Bias Supply
Key features
- 2.5-V to 6-V Input Voltage Range
- 18.5-V Boost Converter With 3.2-A Switch Current
- 650-kHz, 1.2-MHz Selectable Switching Frequency
- Adjustable Soft-Start
- Thermal Shutdown
- Undervoltage Lockout
- 10-Pin QFN and Thin QFN Packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPS61087QDRCRQ1#C544552TI · VSON-10(3x3) | TI | VSON-10(3x3) | 177 | ₹138.77 · 177 in stock | View |
| TPS61087QWDRCRQ1#C2071462TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | 42 | ₹180.13 · 42 in stock | View | |
| TPS61087DRCT#C544946TI · VSON-10-EP(3x3) | TI | VSON-10-EP(3x3) | 30 | ₹415.01 · 30 in stock | View | |
 | TPS61087DSCR#C2071336TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | On request | Price on request | Quote |
| TPS61087DSCT#C2071532TI · WSON-10-EP(3x3) | TI | WSON-10-EP(3x3) | On request | Price on request | Quote | |
