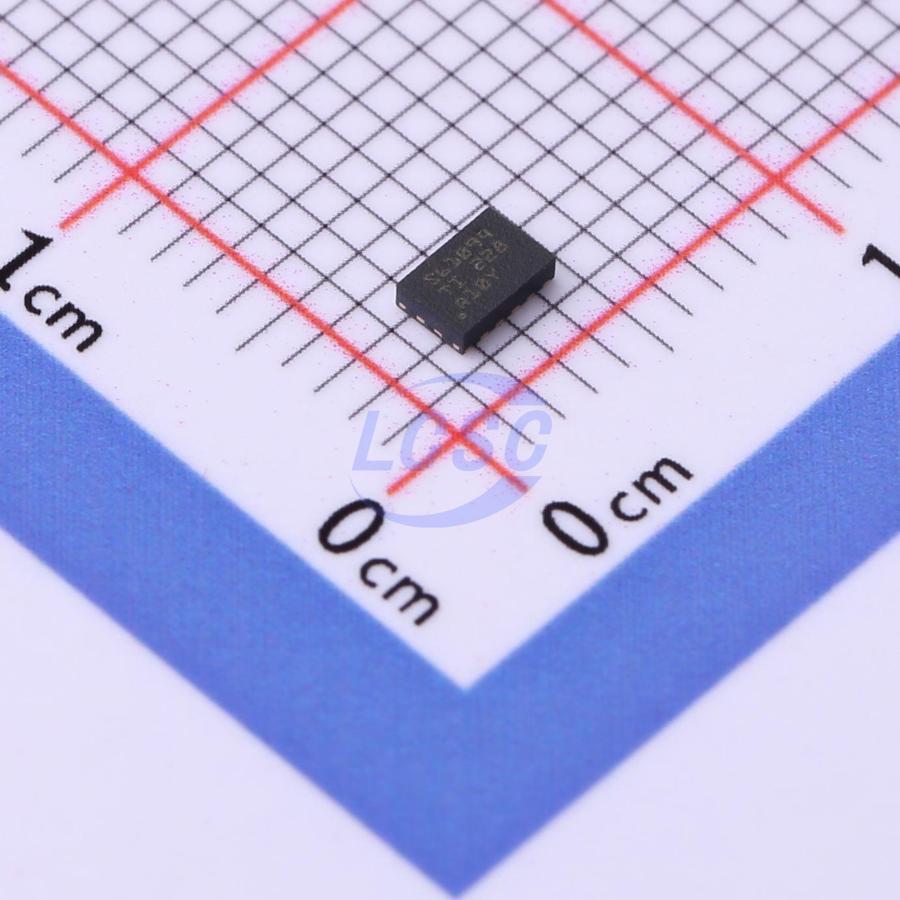

TPS61094DSSR

The TPS61094 is a 60nA IQ boost converter with supercapacitor management. This device can provide power supply solutions for smart meter and supercapacitor backup power supply applications. It has a wide input voltage range and an output voltage of up to 5.5V. When charging the supercapacitor in buck mode, the charging current and termination voltage can be programmed through two external resistors. When operating in boost mode, the output voltage can be programmed using one external resistor. In automatic buck or boost mode (EN = 1, MODE = 1), after applying the input power, the device will bypass the input voltage to the output while also charging the backup supercapacitor. When the input power is disconnected or lower than the output target voltage, it will enter boost mode and regulate the output voltage through the backup supercapacitor, consuming 60nA quiescent current in this mode. It supports true shutdown mode (EN = 0, MODE = 1) and forced bypass mode (EN = 0, MODE = 0). In true shutdown mode, the load is completely disconnected from the input power. When forced bypass mode is supported, the load is directly connected to the input voltage through the bypass switch and only consumes 4nA current, thus extending the battery life.

Applications

• Gas meters, water meters
• Portable medical devices
• Energy harvesting

Key features

• Wide voltage and current range
• 0.7V to 5.5V input voltage range
• Minimum input voltage of 1.8V at startup
• Programmable boost output voltage, adjustable from 2.7V to 5.4V
• Programmable buck charge termination voltage, adjustable from 1.7V to 5.4V
• Programmable buck charge output current, adjustable from 2.5mA to 600mA
• Ultra-low quiescent current
• 60nA in boost or buck charge mode
• 4nA in forced bypass mode
• High efficiency and power capacity
• Typical 2.0A inductor valley current limit
• Two 60mΩ (LS)/140mΩ (HS) MOSFETs
• 100mΩ bypass switch resistance
• 1MHz switching frequency
• Automatic sleep mode operation under light load
• Up to 92.3% efficiency at VIN = 3V, VOUT = 3.6V, and IOUT = 10μA
• Up to 96.3% efficiency at VIN = 3V, VOUT = 3.6V, and IOUT = 100mA
• Four operating modes controlled by MODE and EN pins
• Comprehensive protection features
• Output short-circuit protection
• Thermal shutdown protection
• 2mm×3mm 12-pin WSON package
