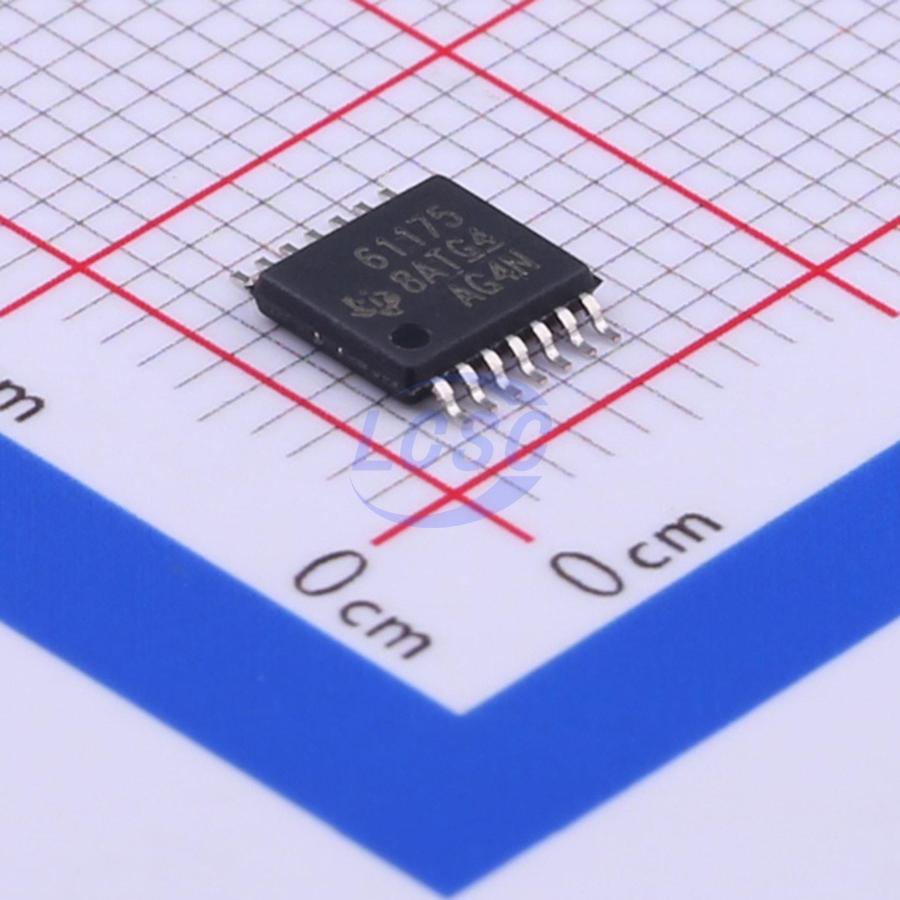

TPS61175PWPR

2.2MHz Boost Adjustable 2.9V~38V 3A HTSSOP-14-EP Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-14-EPROHS3 CompliantActive

Wide Input Voltage Range High Efficiency DC-DC Converter

Manufacturer: TI
Manufacturer part #: TPS61175PWPR
Store part #: C43276
Package / case: HTSSOP-14-EP
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,093 in stock

#C43276

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹357.50	₹357.50
10+	₹304.41	₹3,044.10
30+	₹271.12	₹8,133.60
100+	₹221.51	₹22,151.00
500+	₹206.28	₹1,03,140.00
1,000+	₹199.53	₹1,99,530.00

Quantity (min 1)

1 × ₹357.50

₹357.50

excl. GST

₹421.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

TPS61175PWPR

₹357.50 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.2MHz
Function: Boost
Number of Outputs: 1
Features: Adjustable soft-start;Frequency synchronization;Cycle-by-cycle current limiting;External compensation;Light load efficient mode
Output Type: Adjustable
Topology: Boost;Flyback;SEPIC
Operating Voltage: 2.9V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 2.9V~38V
Output Current: 3A
Quiescent Current: 3.5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.171 g

Overview

The TPS61175 device is a monolithic switching regulator with integrated 3-A, 40-V power switch. The device can be configured in several standard switching-regulator topologies, including boost, SEPIC, and flyback. The device has a wide input voltage range to support application with input voltage from multicell batteries or regulated 5-V, 12-V power rails. The TPS61175 regulates the output voltage with current mode PWM (pulse width modulation) control. The switching frequency of PWM is set by either an external resistor or an external clock signal. The user can program the switching frequency from 200 kHz to 2.2 MHz. The device features a programmable soft-start function to limit inrush current during start-up, and has other built-in protection features, such as pulseby-pulse overcurrent limit and thermal shutdown. The TPS61175 is available in 14-pin HTSSOP package with PowerPad.

Applications

5-V to 12-V, 24-V Power Conversion
Supports SEPIC and Flyback Topologies
ADSL Modems
TV Tuners

Key features

2.9-V to 18-V Input Voltage Range
3-A, 40-V Internal Switch
High-Efficiency Power Conversion: Up to 93%
Frequency Set by External Resistor: 200 kHz to 2.2 MHz
Synchronous External Switching Frequency
User-Defined Soft-Start into Full Load
Skip-Switching Cycle for Output Regulation at Light Load
14-Pin HTSSOP Package With PowerPad
