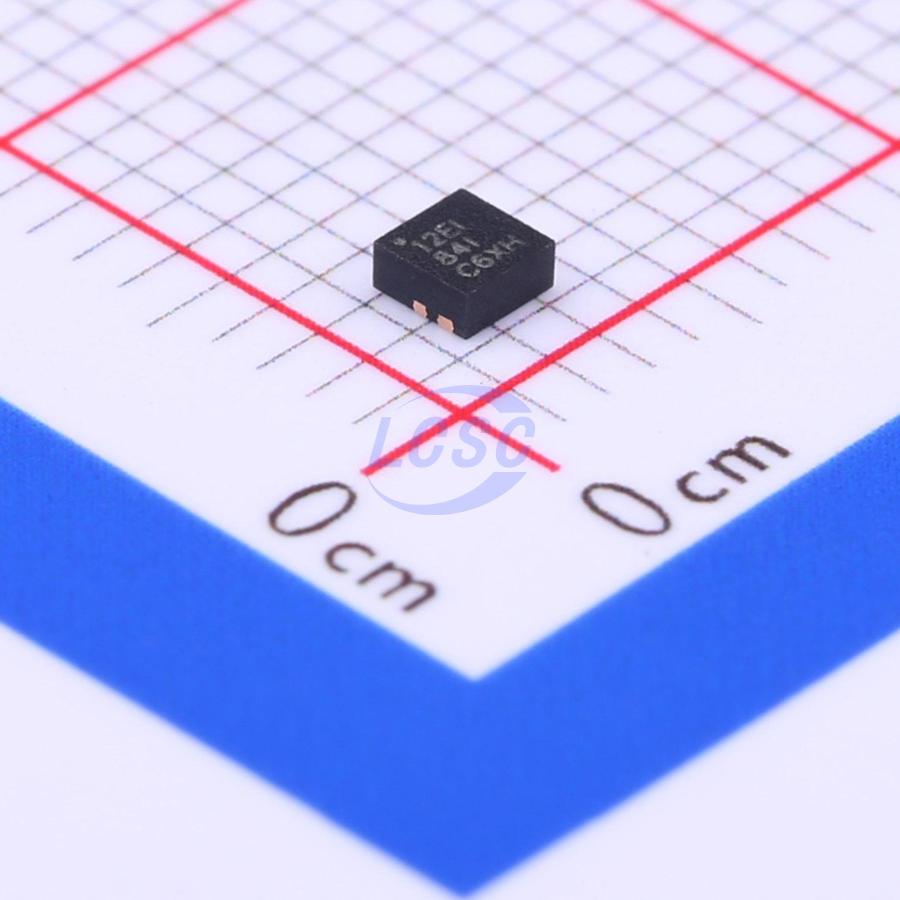

TPS61230ARNSR
1.15MHz Boost Adjustable 2.5V~5.5V 2.4A VQFN-7(2.1x2.1) Voltage Regulators - DC DC Switching Regulators RoHS
VQFN-7(2.1x2.1)ROHS3 CompliantActive
5-V/6-A High Efficiency Synchronous Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- TPS61230ARNSR
- Store part #
- C376005
- Package / case
- VQFN-7(2.1x2.1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,675 in stock
#C376005
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.29 | ₹91.29 |
| 10+ | ₹77.16 | ₹771.60 |
| 30+ | ₹71.30 | ₹2,139.00 |
| 100+ | ₹63.69 | ₹6,369.00 |
| 500+ | ₹56.52 | ₹28,260.00 |
| 1,000+ | ₹54.34 | ₹54,340.00 |
1 × ₹91.29
₹91.29
excl. GST
₹107.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS61230ARNSR
₹91.29 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.15MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Load disconnect;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.5V~4.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5.5V
- Output Current
- 2.4A
- Quiescent Current
- 20uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
The TPS61230A device is a high efficiency fully integrated synchronous boost converter. It integrates 6 - A, 21 - mΩ and 18–mΩ power switches, which is capable of delivering up to 2.4 - A output current at 5 - V output with the 2.5 - V input supply. The low RDS_ON switches enable the power conversion efficiency up to 96% and minimize the thermal stress in very compact solution size.
Applications
- Power Banks
- Battery Backup Units
- USB Power Supply
- Tablet PCs
- Audio Power Amplifier
- Battery Powered Products
Key features
- Input Voltage Range: 2.5 V to 4.5 V
- Output Voltage Range: 2.5 V to 5.5 V
- Two 21 - mΩ (LS) / 18 - mΩ (HS) MOSFETs
- 20 μA Quiescent Current
- 6 - A Valley Switching Current Limit
- 1.15 - MHz Quasi - Constant Switching Frequency
- PFM Operation at the Light Load
- 1.05 - ms Soft Start Time
- True Load Disconnect
- NOT Support Vin > Vout Operation
- Output Short Protection
- Over Voltage Protection
- Thermal Shutdown
- 2.0 - mm x 2.0 - mm VQFN 7 - Pin Package
