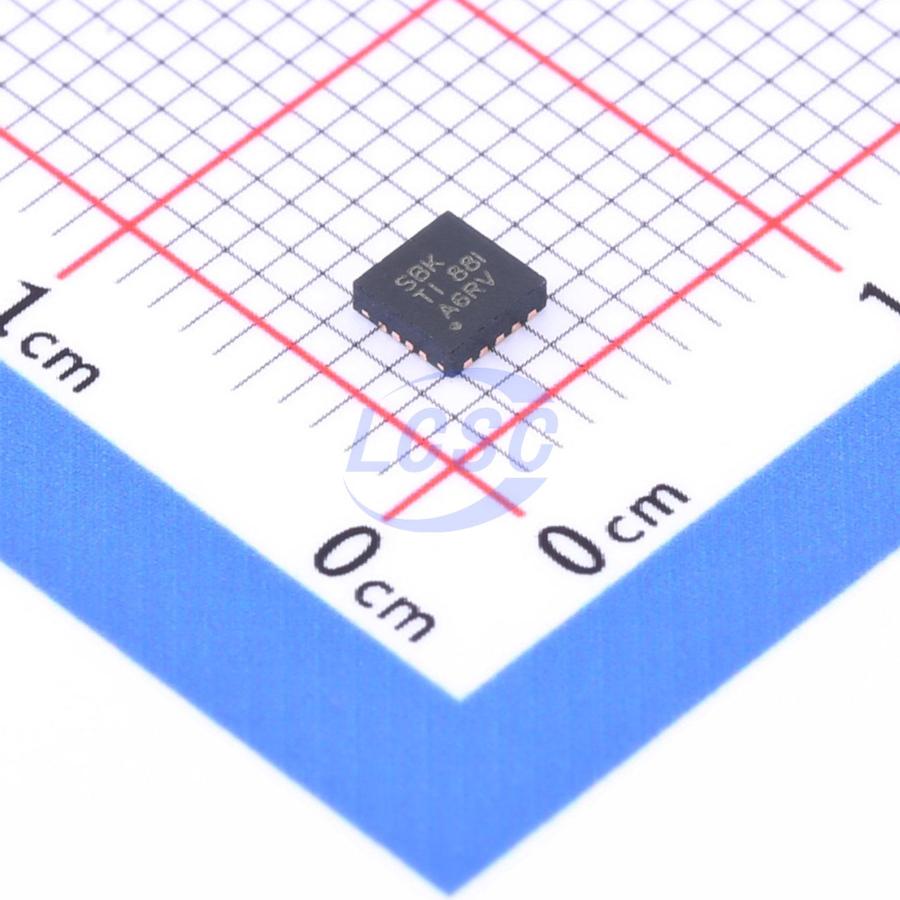

TPS61230DRCT

2MHz Boost Adjustable 2.1A 2.5V~5.5V VSON-10-EP(3x3) Voltage Regulators - DC DC Switching Regulators RoHS

VSON-10-EP(3x3)ROHS3 CompliantActive

Manufacturer: TI
Manufacturer part #: TPS61230DRCT
Store part #: C544950
Package / case: VSON-10-EP(3x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

Out of stock

#C544950

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹202.95	₹202.95
10+	₹168.47	₹1,684.70
30+	₹149.60	₹4,488.00
100+	₹128.36	₹12,836.00
500+	₹118.82	₹59,410.00
1,000+	₹114.70	₹1,14,700.00

Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Load disconnect;Adjustable soft-start;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 2.1A
Output Voltage: 2.5V~5.5V
Quiescent Current: 60uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The TPS6123x device family is a high-efficiency synchronous boost converter in a compact solution size. It is optimized for products powered by a single-cell Li-ion battery or a 3.3V regulated supply rail. The IC integrates a 5A switch and is capable of delivering up to 2.1A of output current at a 5V output voltage from a 3.3V input supply. This device is based on a quasi-constant on-time valley current mode control scheme. The typical operating frequency is 2MHz, enabling the use of small inductors and capacitors for a compact solution size. The TPS61230 and TPS61231 provide an adjustable output voltage via an external resistor divider, while the TPS61232 provides a fixed 5V output voltage. During light load, the TPS6123x automatically enters power-save mode to achieve maximum efficiency at minimal quiescent current. During shutdown, the load is completely disconnected from the input, and input current consumption is reduced to 1.5μA (typical). The device integrates a precision low-power EN comparator. The EN threshold and the hysteresis of the enable comparator are adjustable via external resistors, supporting application-specific power-on and power-off requirements. Additional features such as output overvoltage protection, thermal shutdown protection, and power-good output are also built in. The device is available in a 3mm×3mm×0.9mm VSON package.
