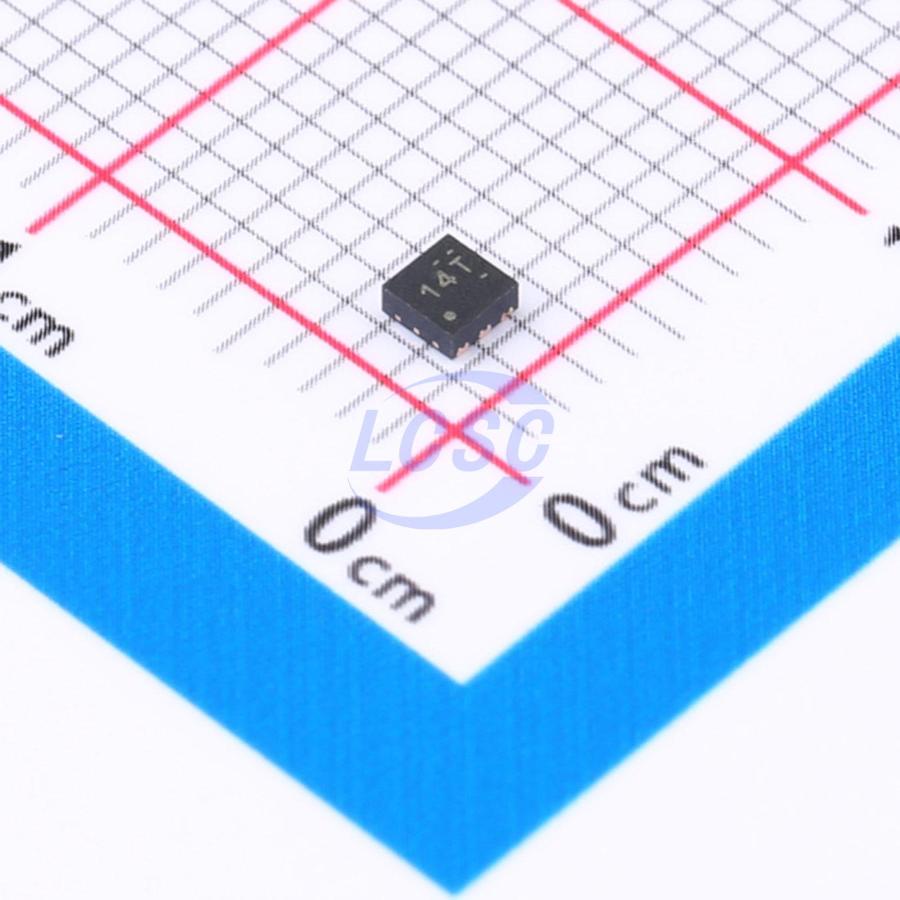

TPS61240TDRVRQ1

Boost Switching Regulator IC Fixed 5V 1 Output WSON-6-EP(2x2)

WSON-6-EP(2x2)ROHS3 CompliantActive

3.5MHz High-Efficiency Boost Converter

Manufacturer: TI
Manufacturer part #: TPS61240TDRVRQ1
Store part #: C2862536
Package / case: WSON-6-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6 in stock

#C2862536

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹211.65	₹211.65
10+	₹177.76	₹1,777.60
30+	₹156.46	₹4,693.80
100+	₹134.07	₹13,407.00
500+	₹124.08	₹62,040.00
1,000+	₹119.96	₹1,19,960.00

Quantity (min 1)

1 × ₹211.65

₹211.65

excl. GST

₹249.75 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61240TDRVRQ1

₹211.65 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+105℃@(TA)
Frequency - Switching: 3.5MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Load disconnect;Overcurrent Protection
Output Type: Fixed
Topology: Boost
Operating Voltage: 2.3V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 450mA
Quiescent Current: 30uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The TPS61240-Q1 is a high-efficiency synchronous boost DC/DC converter optimized for products powered by three alkaline/NiCd/NiMH cells or a single-cell Li-Ion/Li-Polymer battery. The TPS61240-Q1 supports output currents up to 450mA. The TPS61240-Q1 has an input valley current limit of 500mA. The TPS61240-Q1 provides a fixed 5V (typical) output voltage over an input voltage range of 2.3V to 5.5V, supporting batteries with a wider voltage range. During shutdown, the load is completely disconnected from the battery. The TPS61240-Q1 boost converter is based on a quasi-constant on-time valley current mode control scheme. When disabled, the TPS61240-Q1 presents high impedance at the output voltage pin. This makes the device suitable for applications where a regulated output bus needs to be driven by another power source while the TPS61240-Q1 is disabled. During light load, the device automatically enters pulse-skipping mode to achieve maximum efficiency at minimal quiescent current. In shutdown mode, current consumption is reduced to below 1μA. The TPS61240-Q1 supports the use of small inductors and capacitors, enabling a compact solution size. The TPS61240-Q1 is available in a 2mm×2mm WSON package.

Applications

Advanced Driver Assistance Systems (ADAS)
Front Camera
Surround View System
ECU
Radar and LIDAR
Automotive Infotainment and Instrument Cluster
Head Unit
HMI and Display

Key features

Qualified for automotive applications with the following AEC-Q100 results:
Device temperature grade TPS61240IDRVRQ1: Grade 3, -40°C to +85°C ambient operating temperature; TPS61240TDRVRQ1: Grade 2, -40°C to +105°C ambient operating temperature
Device HBM ESD classification level 2
Device CDM ESD classification level C6
Efficiency greater than 90% under standard operating conditions
DC output voltage total accuracy of 5V±2%
30μA typical quiescent current
Industry-leading line and load transient response
Wide input voltage range of 2.3V to 5.5V
Output current up to 450mA
Automatic PFM/PWM mode transition
Low-ripple power save mode for improved light-load efficiency
Internal soft-start with 250μs typical startup time
3.5MHz typical operating frequency
Load disconnect during shutdown
Overcurrent and thermal shutdown protection
Only 3 SMT external components required (1 MLCC inductor and 2 ceramic capacitors)
Total solution size less than 13mm²
2mm×2mm WSON package
