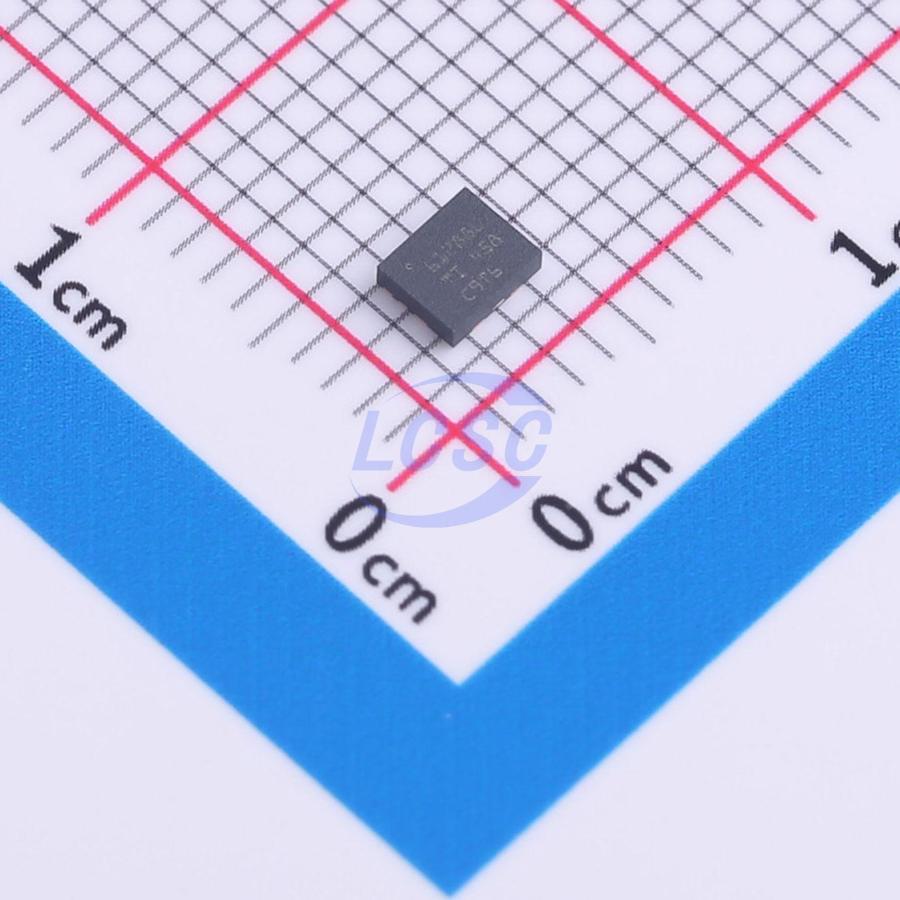

TPS61288LRQQR

500kHz Boost Adjustable 4.5V~18V VQFN-HR-11 Voltage Regulators - DC DC Switching Regulators RoHS

VQFN-HR-11ROHS CompliantActive

Fully Integrated Synchronous Boost Converter

Manufacturer: TI
Manufacturer part #: TPS61288LRQQR
Store part #: C7498841
Package / case: VQFN-HR-11
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,797 in stock

#C7498841

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹243.27	₹243.27
10+	₹204.89	₹2,048.90
30+	₹180.83	₹5,424.90
100+	₹156.11	₹15,611.00
500+	₹145.05	₹72,525.00
1,000+	₹140.29	₹1,40,290.00

Quantity (min 1)

1 × ₹243.27

₹243.27

excl. GST

₹287.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61288LRQQR

₹243.27 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 500kHz
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection;Light load efficient mode;External compensation;Built-in LDO regulator
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~18V
Switch tube (built-in/external): Built-in
Output Voltage: 4.5V~18V
Quiescent Current: 110uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.047 g

Overview

The TPS61288 is a high-power density, fully integrated synchronous boost converter with a 6.5-mΩ power switch and an 8.5-mΩ rectifier switch to provide a high efficiency and small size solution in portable systems. The TPS61288 has a wide input voltage range from 2 V (2.4 V rising) to 18 V to support applications with single-cell or two-cell Lithium batteries. The device has 15-A switch current capability and is capable of providing an output voltage up to 18 V. The TPS61288 employs peak current control topology with SOO modulation to regulate the output voltage. The device operates in the pulse width modulation (PWM) mode in moderate to heavy load condition. It automatically runs in the pulse frequency modulation (PFM) mode in light load and low duty cycle condition. SOO modulation realizes accurate regulation over wide load/VIN range while maintaining high efficiency and low output ripple. The switching frequency in the PWM mode is 500 kHz. The TPS61288 provides 19-V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection. The TPS61288 is available in a 2.5-mm x 3.0-mm QFN package.

Applications

Bluetooth speaker
Source driver of LCD display
USB type-C power delivery

Key features

2.5-mm x 3.0-mm QFN package with HotRod Lite option
Wide input voltage and output voltage range
VIN: 2.0 V to 18 V
2.4-V Minimum input voltage for start-up
VOUT: 4.5 V to 18 V
High efficiency and power capability
15-A peak switch current limit
Two 6.5-mΩ (LS) / 8.5-mΩ (HS) MOSFETs
Switching frequency: 500 kHz
Up to 94.7% efficiency at VIN = 3.6 V, VOUT = 13 V, and IOUT = 2 A
Up to 96.9% efficiency at VIN = 7.2 V, VOUT = 16 V, and IOUT = 2.5 A
Extend the system operating time
Typical 110-μA quiescent current into VOUT pin
Maximum 2.1-μA current into VIN pin during shutdown
Smooth on-time/off-time (SOO) modulation at light load and low duty cycle and no DC offset between PFM and PWM
Rich protection
Output overvoltage protection at 19 V
Cycle-by-cycle overcurrent protection
Thermal shutdown
