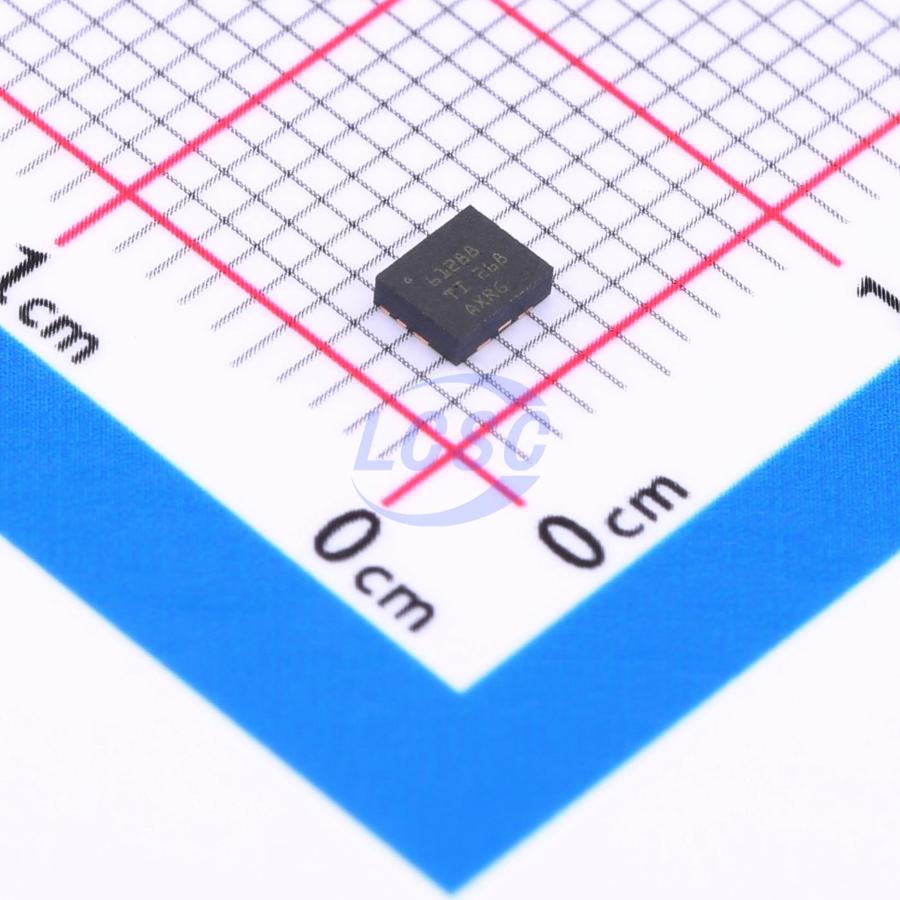

TPS61288RQQR

Boost Switching Regulator IC Adjustable 4.5V~18V 1 Output 15A VQFN-11-HR(2.5x3)

VQFN-11-HR(2.5x3)ROHS CompliantActive

18V, 15A Fully Integrated Synchronous Boost Converter

Manufacturer: TI
Manufacturer part #: TPS61288RQQR
Store part #: C5219223
Package / case: VQFN-11-HR(2.5x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,736 in stock

#C5219223

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹264.68	₹264.68
10+	₹223.83	₹2,238.30
30+	₹198.40	₹5,952.00
100+	₹173.63	₹17,363.00
500+	₹161.67	₹80,835.00
1,000+	₹156.68	₹1,56,680.00

Quantity (min 1)

1 × ₹264.68

₹264.68

excl. GST

₹312.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS61288RQQR

₹264.68 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 500kHz
Function: Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Light load efficient mode;External compensation;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~18V
Switch tube (built-in/external): Built-in
Output Current: 15A
Output Voltage: 4.5V~18V
Quiescent Current: 165uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.07 g

Overview

TPS61288 is a high power density, fully integrated synchronous boost converter featuring a 6.5mΩ power switch and an 8.5mΩ rectifier switch, providing an efficient, compact solution for portable systems. With a wide input voltage range of 2V (2.4V rising) to 18V, the TPS61288 supports applications powered by single-cell or two-cell lithium batteries. The device offers 15A switching current capability and can deliver output voltages up to 18V. The TPS61288 employs a peak current control topology with SOO modulation to regulate the output voltage. Under medium to heavy load conditions, the device operates in pulse width modulation (PWM) mode. Under light load and low duty cycle conditions, it automatically transitions to pulse frequency modulation (PFM) mode. SOO modulation enables precise regulation across a wide load/VIN range while maintaining high efficiency and low output ripple. The switching frequency in PWM mode is 500kHz. The TPS61288 provides 19V output overvoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection. The TPS61288 is available in a 2.5mm×3.0mm QFN package.

Applications

Bluetooth speaker
LCD display power driver
USB Type-C power delivery

Key features

2.5mm×3.0mm QFN package with HotRod Lite option
Wide input and output voltage range: VIN: 2.0V to 18V, minimum input voltage at startup 2.4V; VOUT: 4.5V to 18V
High efficiency and power capacity
Peak switch current limit: 15A
Dual 6.5mΩ (LS)/8.5mΩ (HS) MOSFETs
Switching frequency: 500kHz
Up to 94.7% efficiency (at VIN = 3.6V, VOUT = 13V, IOUT = 2A)
Up to 96.9% efficiency (at VIN = 7.2V, VOUT = 16V, IOUT = 2.5A)
Extended system operating time
VOUT pin quiescent current typical 110μA
VIN pin current maximum 2.1μA during shutdown
Smooth on-time/off-time (SOO) modulation at light load and low duty cycle, with no DC offset voltage between PFM and PWM
Comprehensive protection features
19V output overvoltage protection
Cycle-by-cycle overcurrent protection
Thermal shutdown
