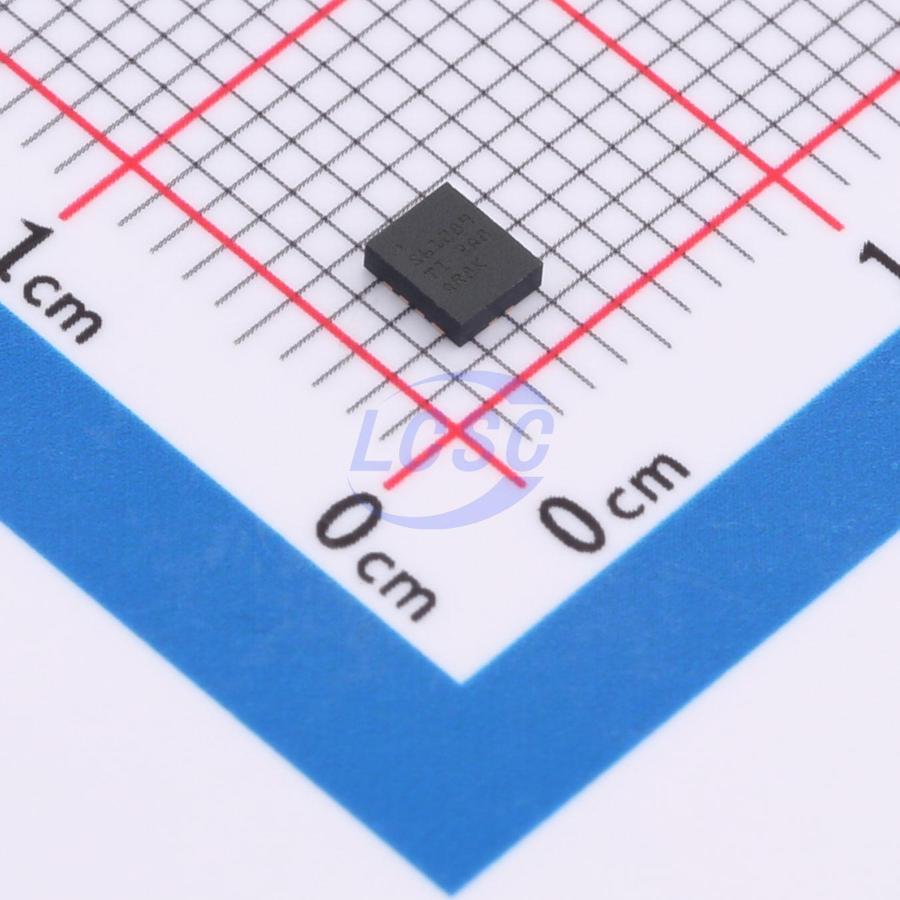

TPS61289RZPR

TPS61289 is a bidirectional buck/boost synchronous converter integrating a high-side synchronous rectifier MOSFET and using an external low-side MOSFET. The TPS61289 can be configured as either a buck or boost converter via the MODE pin. The TPS61289 supports a switching current of 20A, with VHIGH voltage up to 25V. The minimum VLOW voltage is determined by the VLOW/VHIGH ratio and frequency; for example, at VHIGH = 15V, VLOW can be as low as 0.5V. This device offers an excellent balance of efficiency, thermal performance, and solution size for high-power bidirectional conversion. The TPS61289 provides adjustable switching current limit functionality. In addition, the device offers VHIGH overvoltage and undervoltage protection, cycle-by-cycle overcurrent protection, and thermal shutdown protection. The TPS61289 is available in a 2.5mm x 3.0mm VQFN HotRod Lite package with minimal external components and a very compact solution size.

Applications

• Battery Test Systems (BTS)
• Supercapacitor or battery backup power converters
• USB Type-C power delivery

Key features

• VLOW voltage range: 0.5V to 23V
• Minimum VLOW voltage determined by VLOW/VHIGH ratio and frequency
• VHIGH voltage range: 4.5V to 25V
• Pin-selectable bidirectional buck or boost mode
• Buck/boost forced PWM mode operation
• High efficiency and power capability
• Programmable current limit: 5A to 20A
• Integrated 8.5mΩ high-side MOSFET
• Switching frequency
• FSW = 250kHz when VLOW > 1.7V
• FSW as low as 100kHz when VLOW < 1.5V
• FSW as low as 50kHz when VLOW < 0.5V
• 200mV hysteresis prevents frequency jitter
• Synchronizable to external clock
• Comprehensive protection features
• VHIGH OVP at 27V
• VHIGH UVP at 3.1V
• VCC UVP at 2.15V
• Accurate EN/UVLO threshold
• Cycle-by-cycle overcurrent protection
• Thermal shutdown
• 2.5mm × 3.0mm VQFN 14 HotRod Lite package
