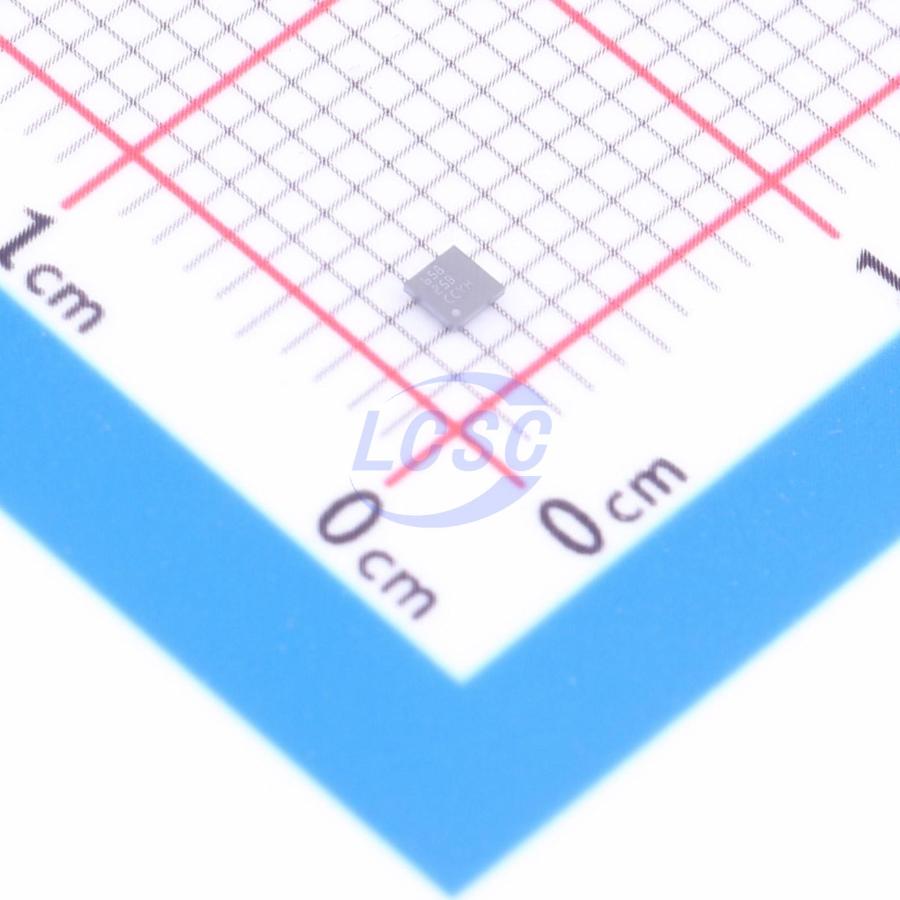

TPS612901YBGR

BGA-16 Voltage Regulators - DC DC Switching Regulators

BGA-16RoHSActive

Manufacturer: TI
Manufacturer part #: TPS612901YBGR
Store part #: C55152213
Package / case: BGA-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C55152213

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹397.43	₹397.43
10+	₹349.95	₹3,499.50
30+	₹325.66	₹9,769.80
100+	₹293.14	₹29,314.00
500+	₹281.43	₹1,40,715.00
1,000+	₹276.44	₹2,76,440.00

Quantity (min 1)

1 × ₹397.43

₹397.43

excl. GST

₹468.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS612901YBGR

₹397.43 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g

Overview

The TPS61290x is a 5.5V, 11A synchronous boost converter with bypass mode, I2C interface, and fast transient response. The TPS61290x provides power supply design for products powered by nickel-rich, silicon-anode, lithium-ion, or lithium iron phosphate batteries, with a voltage range optimized for single-cell battery portable applications such as smartphones or POS terminals. The device can be used as a high-power pre-regulator to extend battery run time and overcome input current and voltage limitations of powered systems. It features a wide input voltage range of 1.8V to 5.5V, with output voltage programmable up to 5.5V via I2C. The TPS61290 has a default output voltage of 3.4V, while the TPS612901 has default output voltages of 5V (VSEL = low) and 5.25V (VSEL = high). During operation, when the battery is in a good state of charge, the TPS61290x operates in bypass mode, connecting the battery to the power system through a bypass FET; if the battery enters a lower state of charge and its voltage falls below the required minimum system voltage, the device seamlessly transitions to boost mode to utilize the full battery capacity. The TPS61290x is available in a 16-ball YBG package, enabling a very compact design footprint.

Applications

Mobile phones
Tablets
Optical modules
4G, 5G small module data cards
RF power amplifiers

Key features

Wide VIN range: 1.8V to 5.5V, startup input voltage 2.2V
Programmable average input current limit (3.5A to 11A) via I2C
Programmable output voltage (2.35V to 5.5V) via I2C; TPS61290 defaults to 3.4V; TPS612901 defaults to 5V at VSEL = L, 5.25V at VSEL = H
Undershoot < 150mV at VIN = 2.7V, VOUT = 3.4V, IOUT = 0A → 3A (0.2A/µs slew rate)
Integrated bypass MOSFET (8mΩ), high-side MOSFET (8mΩ), low-side MOSFET (10mΩ)
Automatic bypass mode when VIN > VOUT
Selectable auto PFM or forced PWM operation at light load
Output discharge when EN logic is low
True input-to-output disconnection during shutdown
Integrated thermal shutdown and overcurrent protection
I2C-compatible interface up to 1Mbps
1.2V I/O logic control interface support
16-ball WCSP package
