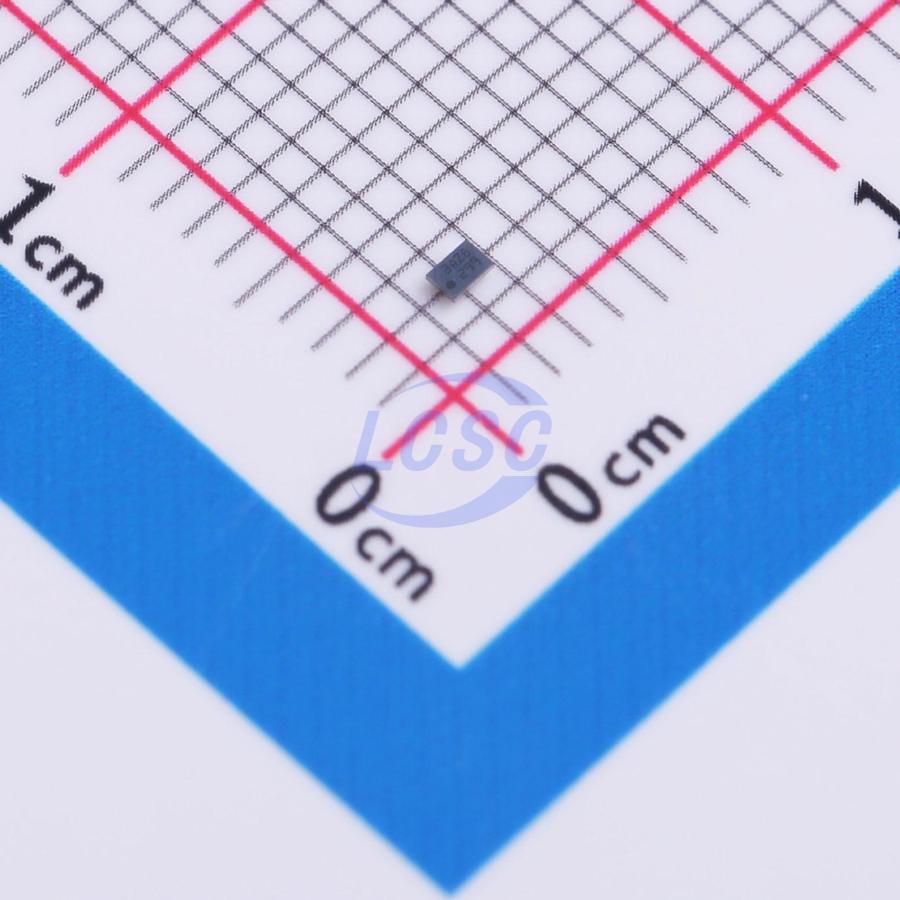

TPS61299YBHR

TPS61299x/xA is a synchronous boost converter featuring 95nA ultra-low quiescent current and average input current limiting. The device provides a power solution for portable equipment powered by alkaline and coin cell batteries. It delivers high efficiency under light load conditions for extended runtime, while the average input current limiting prevents high-current battery discharge. The TPS61299x/xA operates with an input voltage range of 0.5V to 5.5V and an output voltage range of 1.8V to 5.5V. The device is available in multiple versions with average input current limits ranging from 5mA to 1.9A. The TPS61299 with a 1.2A current limit supports conversion from a 3V input to a 5V output, with a maximum output current of 500mA and approximately 94% efficiency at a 200mA load. The TPS61299x/xA offers an optional fast load transient response at output voltages of 4.5V, 5V, or 5.5V. Under fast load transient conditions, the typical settling time is 8μs when the output current steps from 0A to 200mA. The TPS61299x supports true shutdown when disabled, while the TPS61299xA supports forced pass-through when disabled. Users can select either option based on their specific application requirements. The TPS61299x/xA is available in a compact 6-ball 1.2mm × 0.8mm WCSP package and a 6-pin 1.6mm × 1.6mm SOT563 package.

Applications

• Smartwatches, smart bands
• Portable medical devices
• True Wireless Stereo (TWS) earphones
• Optical modules

Key features

• Input voltage range: 0.5V to 5.5V
• Minimum startup voltage for TPS61299x: 0.7V
• Minimum startup voltage for TPS61299xA: 0.9V
• For TPS61299x, input operating voltage can go as low as 150mV when VIN > 0.7V
• For TPS61299xA, input operating voltage can go as low as 150mV when VIN > 0.9V
• Output voltage range of 1.8V to 5.5V for devices with current limit not exceeding 1.2A
• Output voltage range of TPS612997/A: 1.8V to 5V
• Average input current limit: 5mA, 25mA, 50mA, 100mA, 250mA, 500mA, 1.2A, 1.9A (varies by version)
• Typical quiescent current at output: 95nA
• Typical shutdown current at input for TPS61299x: 60nA
• Typical forced pass-through current at input for TPS61299xA: 30nA
• Up to 91% efficiency at VIN = 3.6V, VOUT = 5V, IOUT = 10μA
• Up to 94% efficiency at VIN = 3.6V, VOUT = 5V, IOUT = 200mA
• Fast transient response: settling time ~8μs at VIN = 3.6V, VOUT = 5V, IOUT = 0A to 200mA
• TPS61299x: true disconnect when EN is low
• TPS61299xA: forced pass-through when EN is low
• Automatic PFM/PWM mode transition
• Automatic pass-through when VIN > VOUT
• Output short-circuit protection and thermal shutdown protection
• 6-pin WCSP (1.2mm × 0.8mm) / SOT563 (1.6mm × 1.6mm) package
• Module solution (integrated inductor): TPSM81299
