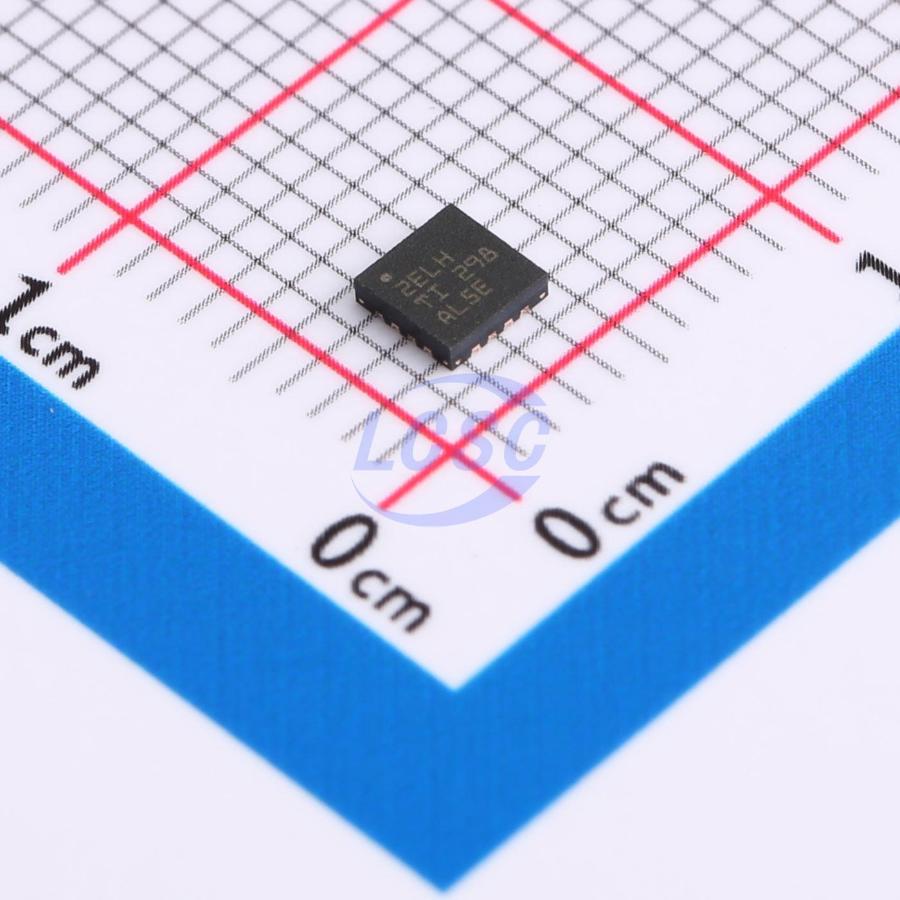

TPS61378QWRTERQ1

TPS61378-Q1 is a fully integrated synchronous boost converter with integrated load disconnect. The input voltage range spans 2.3V to 14V, with a maximum output voltage of 18.5V. The programmable switch current limit ranges from 1A to 4.8A. The device draws 25μA quiescent current under VIN conditions. TPS61378-Q1 employs peak current mode control with a programmable switching frequency range of 200kHz to 2.2MHz. Under moderate to heavy load conditions, the device operates in fixed-frequency PWM mode. Under light load conditions, two selectable modes are available via the MODE pin configuration: automatic PFM mode and forced PWM mode, balancing efficiency and noise immunity under light load conditions. The switching frequency can be synchronized to an external clock. TPS61378-Q1 uses internal clock spread spectrum to achieve low EMI in FPWM mode. An internal soft-start timer is also included to limit inrush current. TPS61378-Q1 is available in multiple fixed output voltage versions, eliminating the need for external feedback resistors. It supports external loop compensation to optimize stability and transient response across a wider VOUT/VIN range. It also integrates robust protection features including output short-circuit protection, output overvoltage protection, and thermal shutdown. TPS61378-Q1 is available in a 3mm×3mm 16-pin QFN package with wettable flanks.

Applications

• Advanced Driver Assistance Systems (ADAS)
• Automotive Infotainment & Instrument Clusters
• Body Electronics & Lighting
• Emergency Call (eCall)

Key features

• AEC-Q100 qualified for automotive applications – Device temperature grade 1: -40°C to 125°C ambient operating temperature range
• Functional Safety documentation available to aid functional safety system design
• Flexible input and output operating range
• Input voltage range: 2.3V to 14V
• Programmable output voltage range: 4.0V to 18.5V
• Fixed output options: 5V, 5.25V, and 5.5V
• Programmable peak current limit: 1A to 4.8A
• Avoids AM band interference and crosstalk
• Dynamically programmable switching frequency: 200kHz to 2.2MHz
• Spread spectrum frequency modulation
• Optional clock synchronization
• Minimized solution size for space-constrained applications
• Integrated LS/HS/ISO FET: RDS(ON) 50mΩ/50mΩ/100mΩ
• Supports up to 2.2MHz for smaller L-C
• Minimized light-load and standby current consumption
• VIN pin quiescent current: 25μA
• VIN pin shutdown current: 0.5μA
• Selectable automatic PFM and forced PWM modes
• True load disconnect during shutdown or fault conditions
• Integrated protection features
• Supports VIN close to VOUT operating voltage
• Input undervoltage lockout and output overvoltage protection
• Hiccup output short-circuit protection
• Power-good indicator
• Thermal shutdown protection limit: 165°C
• Greater than 90% efficiency for 3.3V to 9V conversion at 0.8A load
