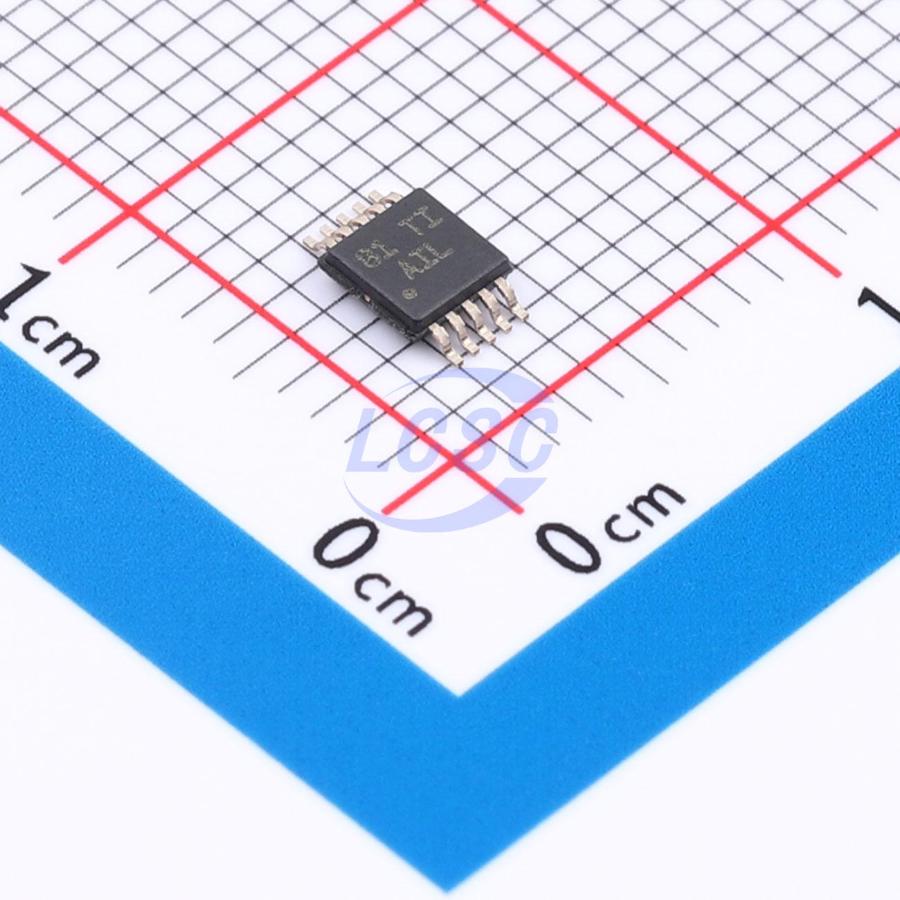

TPS62004DGS

The TPS6200x devices are a family of low-noise synchronous step-down DC/DC converters that are ideally suited for systems powered from a 1-cell Li-ion battery or from a 2- to 3-cell NiCd, NiMH, or alkaline battery. The TPS6200x operates typically down to an input voltage of 1.8 V, with a specified minimum input voltage of 2 V. The TPS62000 operates over a free-air temperature range of -40°C to 85°C. The device is available in the 10-pin (DGS) microsmall outline package (VSSOP).

Applications

• Low-Power CPUs and DSPs
• Cellular Phones
• Organizers, PDAs, and Handheld PCs
• MP-3 Portable Audio Players
• Digital Cameras
• USB-Based DSL Modems and Other Network Interface Cards

Key features

• High-Efficiency Synchronous Step-Down Converter with More than 95% Efficiency
• 2-V to 5.5-V Operating Input Voltage Range
• Adjustable Output Voltage Range From 0.8 V to VIN
• Fixed Output Voltage Options Available in 0.9 V, 1 V, 1.2 V, 1.5 V, 1.8 V, 1.9 V, 2.5 V, and 3.3 V
• Synchronizable to External Clock Signal up to 1 MHz
• Up to 600 mA Output Current
• Pin-Programmable Current Limit
• High Efficiency Over a Wide Load Current Range in Power Save Mode
• 100% Maximum Duty Cycle for Lowest Dropout
• Low-Noise Operation Antiringing Switch and PFM/PWM Operation Mode
• Internal Softstart
• 50 μA Quiescent Current (TYP)
• Available in the 10-Pin Microsmall Outline Package (VSSOP)
• Evaluation Module Available
