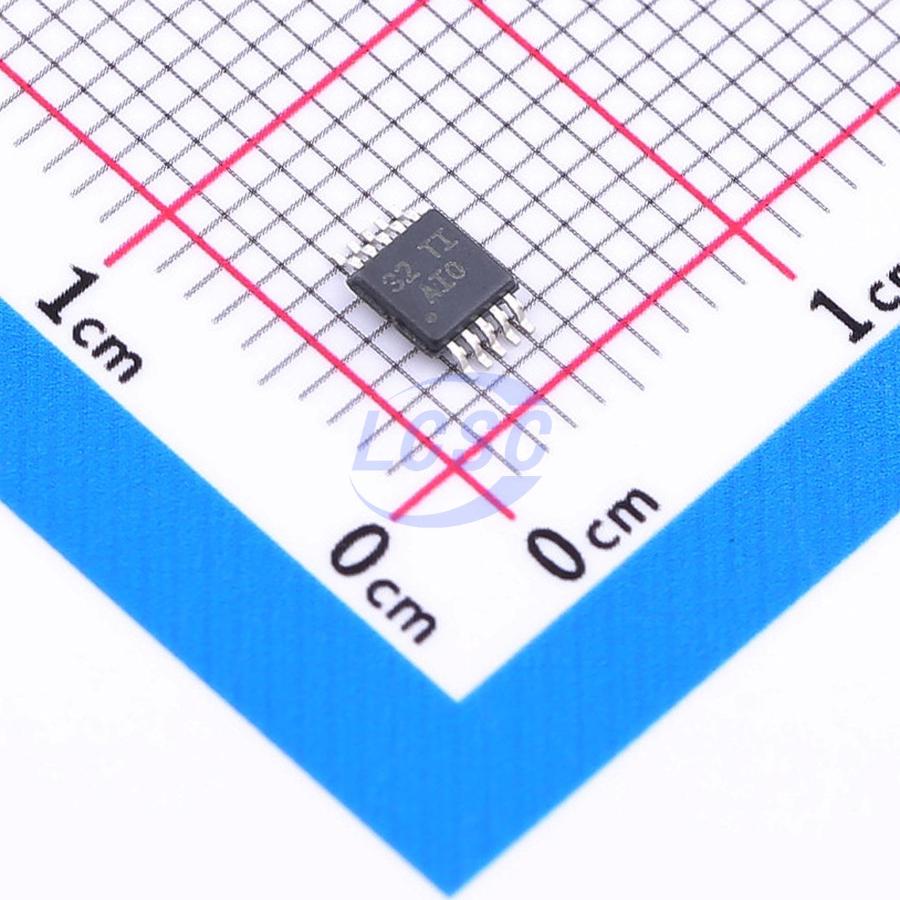

TPS62007DGSR

Step-down type 1MHz Fixed 3.3V 600mA VSSOP-10-0.5mm Voltage Regulators - DC DC Switching Regulators RoHS

VSSOP-10-0.5mmROHS3 CompliantActive

High-Efficiency Step-Down Low Power DC-DC Converter

Manufacturer: TI
Manufacturer part #: TPS62007DGSR
Store part #: C544675
Package / case: VSSOP-10-0.5mm
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

81 in stock

#C544675

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹300.29	₹300.29
10+	₹254.55	₹2,545.50
30+	₹225.93	₹6,777.90
100+	₹196.65	₹19,665.00
500+	₹183.43	₹91,715.00
1,000+	₹177.57	₹1,77,570.00

Quantity (min 1)

1 × ₹300.29

₹300.29

excl. GST

₹354.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

TPS62007DGSR

₹300.29 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 1MHz
Features: Adjustable current limiting;Frequency synchronization;Light load efficient mode;Operating status indication
Output Type: Fixed
Topology: Buck
Operating Voltage: 2V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 600mA
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.148 g

Overview

The TPS6200x devices are a family of low-noise synchronous step-down DC/DC converters that are ideally suited for systems powered from a 1-cell Li-ion battery or from a 2- to 3-cell NiCd, NiMH, or alkaline battery. The TPS6200x operates typically down to an input voltage of 1.8 V, with a specified minimum input voltage of 2 V. The TPS62000 operates over a free-air temperature range of -40°C to 85°C. The device is available in the 10-pin (DGS) microsmall outline package (VSSOP).

Applications

Low-Power CPUs and DSPs
Cellular Phones
Organizers, PDAs, and Handheld PCs
MP-3 Portable Audio Players
Digital Cameras
USB-Based DSL Modems and Other Network Interface Cards

Key features

High-Efficiency Synchronous Step-Down Converter with More than 95% Efficiency
2-V to 5.5-V Operating Input Voltage Range
Adjustable Output Voltage Range From 0.8 V to VIN
Fixed Output Voltage Options Available in 0.9 V, 1 V, 1.2 V, 1.5 V, 1.8 V, 1.9 V, 2.5 V, and 3.3 V
Synchronizable to External Clock Signal up to 1 MHz
Up to 600 mA Output Current
Pin-Programmable Current Limit
High Efficiency Over a Wide Load Current Range in Power Save Mode
100% Maximum Duty Cycle for Lowest Dropout
Low-Noise Operation Antiringing Switch and PFM/PWM Operation Mode
Internal Softstart
50 μA Quiescent Current (TYP)
Available in the 10-Pin Microsmall Outline Package (VSSOP)
Evaluation Module Available
