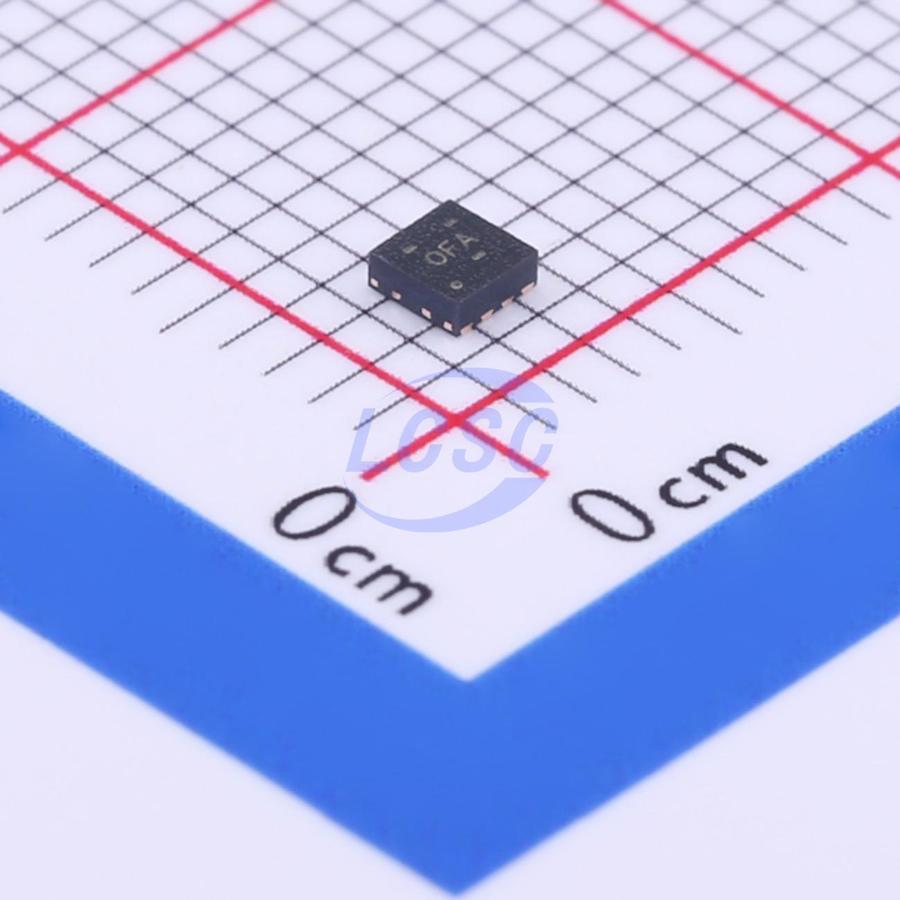

TPS62065DSGR

The TPS6206x is a family of highly efficient synchronous step down DC/DC converters. They provide up to 2-A output current. With an input voltage range of 2.9 V to 6 V, the device is a perfect fit for power conversion from a 5-V or 3.3-V system supply rail. The TPS6206x operates at 3-MHz fixed frequency and enters power save mode operation at light load currents to maintain high efficiency over the entire load current range. The power save mode is optimized for low output voltage ripple. For low noise applications, TPS62065 can be forced into fixed frequency PWM mode by pulling the MODE pin high. TPS62067 provides an open drain power good output.

Applications

• Point of Load (POL)
• Notebooks, Pocket PCs
• Portable Media Players
• DSP Supply

Key features

• 3-MHz Switching Frequency
• Input voltage (VIN) range from 2.9 V to 6 V
• Up to 97% Efficiency
• Power Save Mode / 3-MHz Fixed PWM Mode
• Power Good Output
• Output Voltage Accuracy in PWM Mode ±1.5%
• Output Capacitor Discharge Function
• Typical 18 μA Quiescent Current
• 100% Duty Cycle for Lowest Dropout Voltage
• Positioning Clock Dithering
• -40°C to 125°C Operating Junction Temperature
• Supports Maximum 1-mm Height Solutions
• Available in a 2 mm × 2 mm × 0.75 mm WSON
