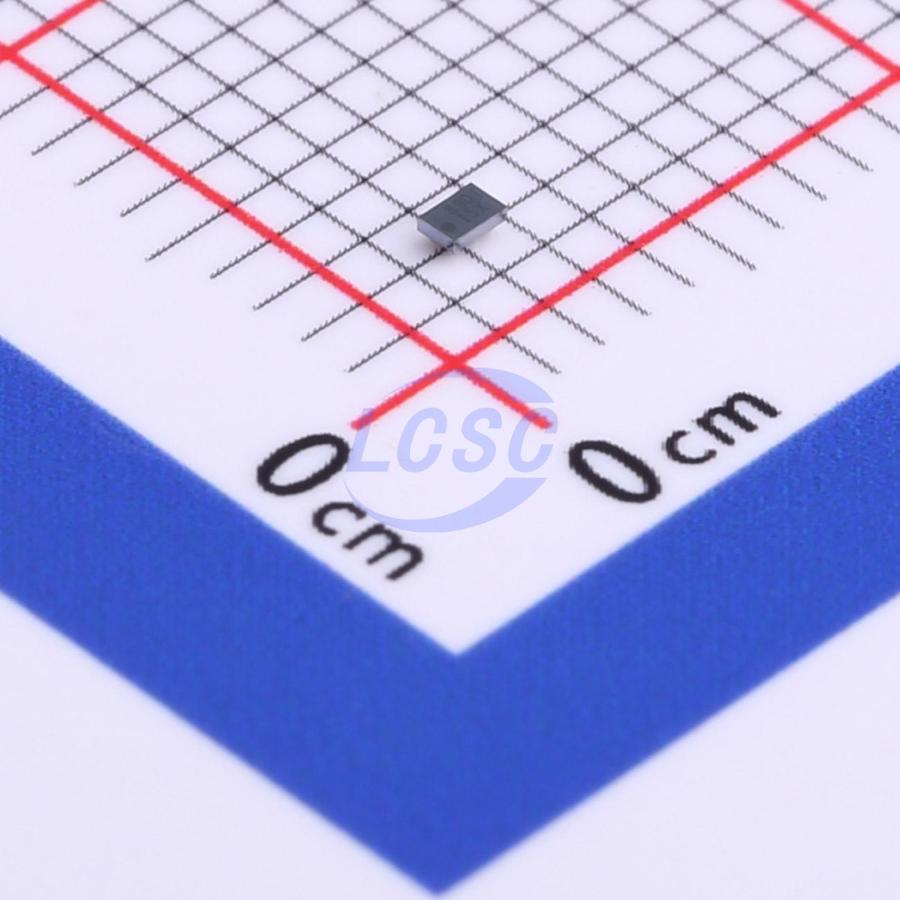

TPS62088YFPR

The TPS62088 is a high-frequency synchronous step-down converter optimized for small solution size and high efficiency. The device supports an input voltage range of 2.4V to 5.5V, compatible with common battery technologies. The converter operates in PWM mode at moderate-to-high loads and automatically enters power-save mode at light loads, maintaining high efficiency across the full load current range. The 4MHz switching frequency allows the TPS62088 to use small external components. Its DCS-control architecture delivers excellent load transient performance and output voltage regulation accuracy. Additional features include overcurrent protection, thermal shutdown, active output discharge, and a power-good indicator. The device is available in a 6-pin WCSP package.

Applications

• Solid-state drives
• Wearable devices
• Smartphones
• Camera module / optical module

Key features

• DCS-Control™ topology efficiency up to 95%
• 26mΩ internal power MOSFET
• 2.4V to 5.5V input voltage range
• 4μA operating quiescent current
• 1% output voltage accuracy
• 4MHz switching frequency
• Power-save mode for high efficiency at light load
• 100% duty cycle capability for minimum dropout voltage
• Active output discharge
• Power-good output
• Thermal shutdown protection
• Hiccup short-circuit protection
• 0.8mm×1.2mm×0.5mm 6-pin WCSP package
• 12mm² solution size support
• Solution height below 0.6mm
• Create custom designs using TPS62088 with WEBENCH Power Designer
