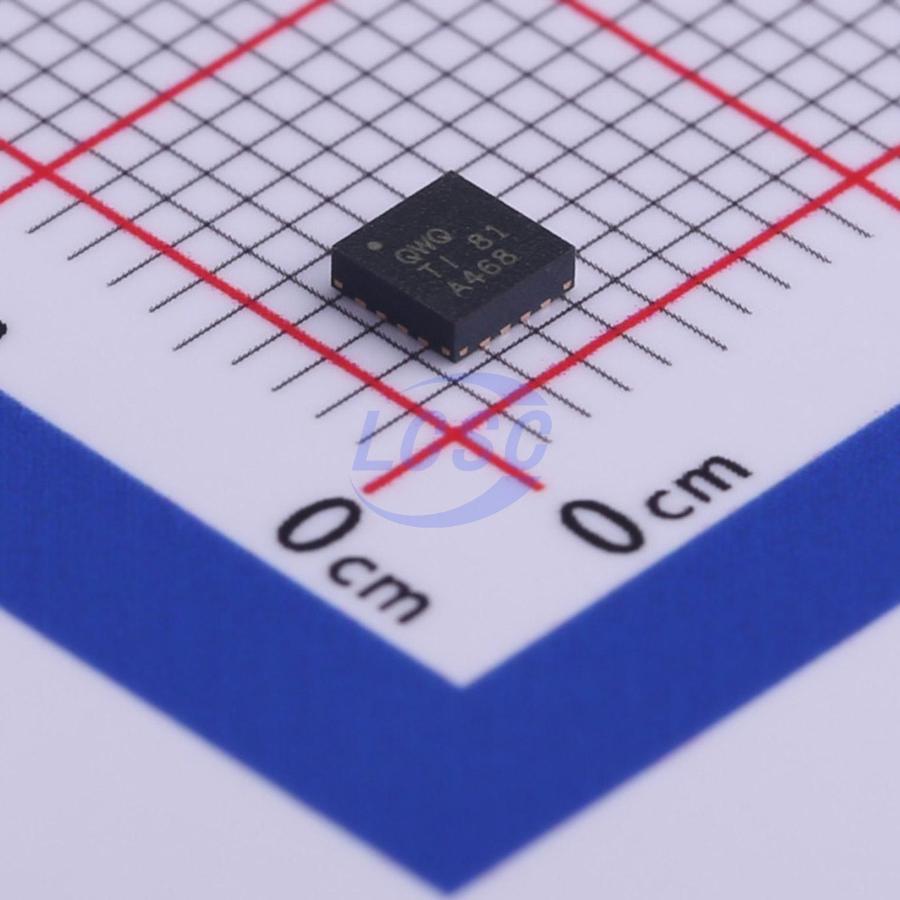

TPS62153RGTR

The TPS6215x family is an easy-to-use synchronous step down dc-dc converter optimized for applications with high power density. A high switching frequency of typically 2.5 MHz allows the use of small inductors and provides fast transient response as well as high output-voltage accuracy by the use of DCS-Control topology. With their wide operating input-voltage range of 3 V to 17 V, the devices are ideally suited for systems powered from either Li-Ion or other batteries as well as from 12-V intermediate power rails. The devices support up to 1-A continuous output current at output voltages between 0.9 V and 6 V (in 100% duty-cycle mode). The soft-start pin controls the output-voltage start-up ramp, which allows operation as either a standalone power supply or in tracking configurations. Power sequencing is also possible by configuring the enable (EN) and open-drain power-good (PG) pins. In power-save mode, the devices draw quiescent current of about 17 μA from VIN. Power-save-mode, entered automatically and seamlessly if the load is small, maintains high efficiency over the entire load range. In shutdown mode, the device turns off and current consumption is less than 2 μA. The device, available in adjustable- and fixed-output-voltage versions, comes in a 16-pin VQFN package measuring 3×3 mm (RGT).

Applications

• Standard 12-V Rail Supplies
• POL Supply From Single or Multiple Li-Ion Battery
• Solid-State Disk Drives
• Embedded Systems LDO Replacement
• Mobile PCs, Tablets, Modems, Cameras
• Server, Microserver
• Data Terminal, Point of Sales (ePOS)

Key features

• DCS-Control™ Topology
• Input Voltage Range: 3 V to 17 V
• Up to 1-A Output Current
• Adjustable Output Voltage From 0.9 V to 6 V
• Pin-Selectable Output Voltage (nominal, + 5%)
• Programmable Soft Start and Tracking
• Seamless Power-Save Mode Transition
• Quiescent Current of 17 μA (typ.)
• Selectable Operating Frequency
• Power-Good Output
• 100% Duty-Cycle Mode
• Short-Circuit Protection
• Overtemperature Protection
• Pin to Pin Compatible with TPS62130 and TPS62140
• Available in a 3-mm×3-mm, VQFN-16 Package
