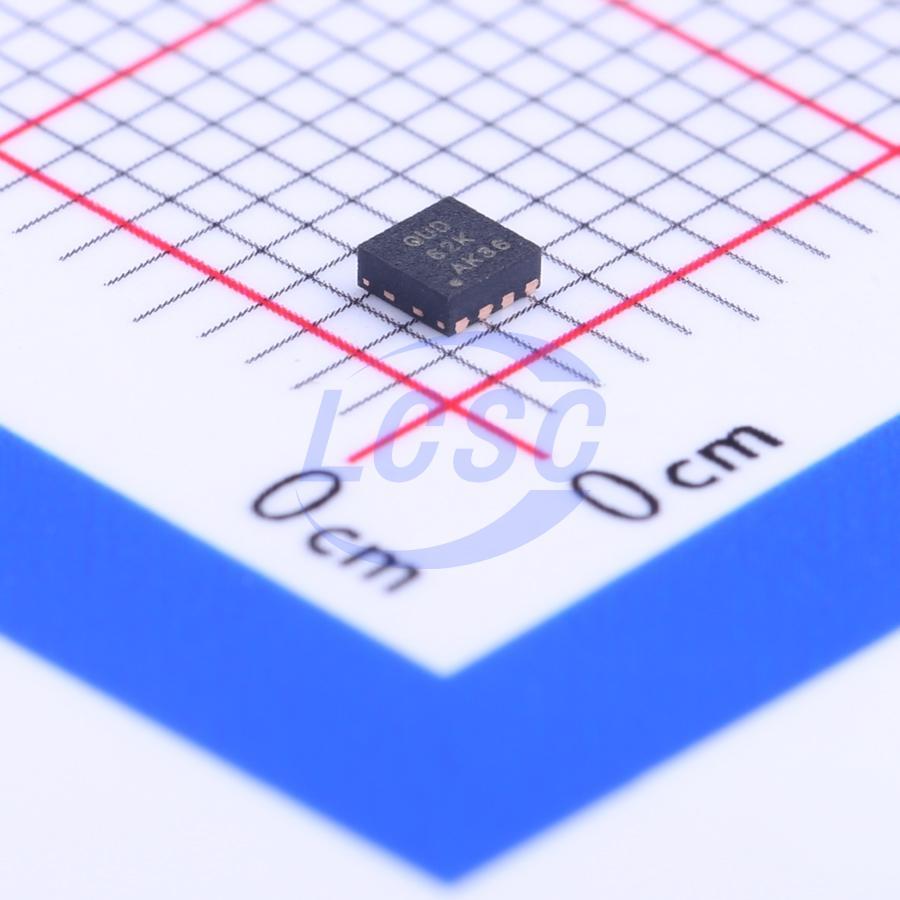

TPS62163DSGR

Buck Switching Regulator IC Fixed 5V 1 Output 1A WSON-8-EP(2x2)

WSON-8-EP(2x2)ROHS3 CompliantActive

3V to 17V/1A Synchronous Buck Converter

Manufacturer: TI
Manufacturer part #: TPS62163DSGR
Store part #: C97534
Package / case: WSON-8-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

584 in stock

#C97534

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹253.54	₹253.54
10+	₹205.14	₹2,051.40
30+	₹180.51	₹5,415.30
100+	₹155.23	₹15,523.00
500+	₹143.66	₹71,830.00
1,000+	₹138.88	₹1,38,880.00

Quantity (min 1)

1 × ₹253.54

₹253.54

excl. GST

₹299.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS62163DSGR

₹253.54 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 2.25MHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Operating status indication;Light load efficient mode
Output Type: Fixed
Topology: Buck
Operating Voltage: 3V~17V
Switch tube (built-in/external): Built-in
Output Voltage: 5V
Output Current: 1A
Quiescent Current: 17uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.042 g

Overview

The TPS6216x family is an easy-to-use synchronous step-down DC-DC converter optimized for high power density applications. The device features a typical switching frequency of up to 2.25MHz, allowing the use of small inductors, and employs DCS-Control™ topology to provide fast transient response and high output voltage accuracy. The wide operating voltage range of 3V to 17V makes the device well-suited for systems powered by lithium-ion or other batteries and 12V intermediate power rails. The device supports an output voltage range of 0.9V to 6V with a continuous output current of up to 1A (using 100% duty cycle mode). Power sequencing can also be implemented by configuring the enable pin and the open-drain power-good pin. In power save mode, the device draws approximately 17μA of quiescent current at the input voltage (VIN). The device automatically and seamlessly enters power save mode at light loads, maintaining high efficiency across the full load range. In shutdown mode, the device is fully off with a supply current of less than 2μA. The TPS6216x devices are rated for an operating temperature range of -40°C to 85°C in a free-air environment. The devices are available in adjustable and fixed output voltage versions, offered in an 8-pin 2.00mm×2.00mm (DSG) WSON package or an 8-pin 3.00mm×3.00mm (DGK) VSSOP package.
