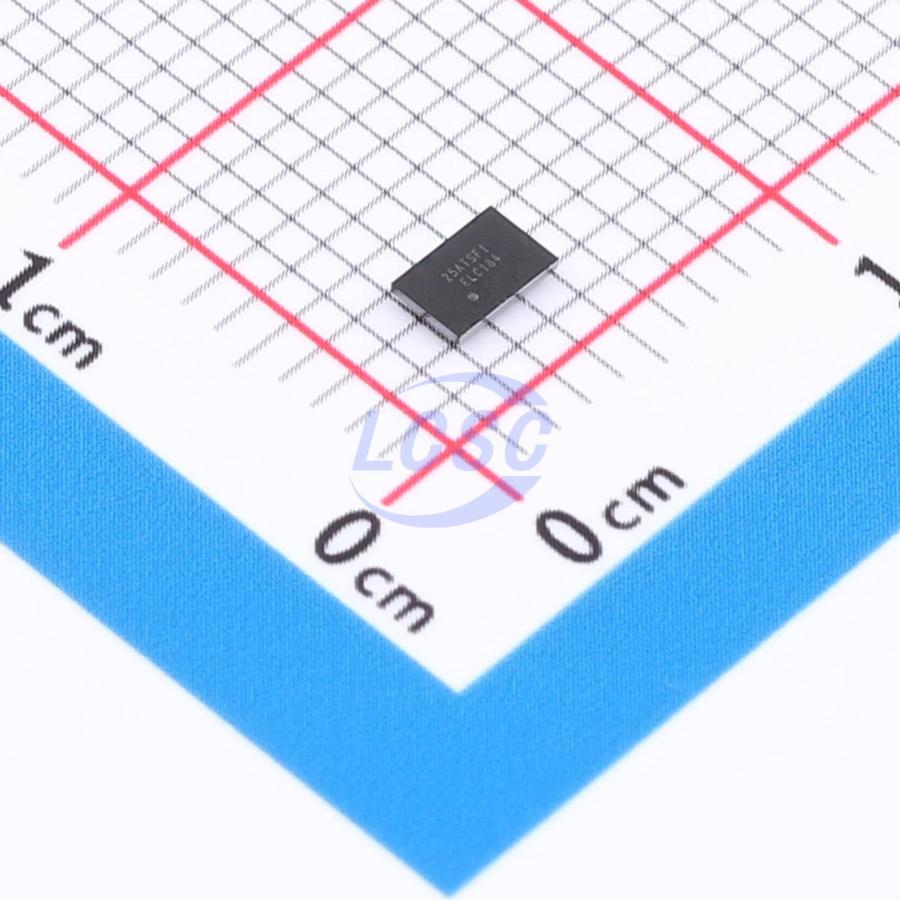

TPS62184YZFT

TPS62184 is a dual-phase step-down DC-DC converter designed for low-profile power rails. It operates using two identical current-balanced phases controlled by peak current, making it suitable for height-constrained applications. The device features a wide input voltage range of 4V to 17V, ideal for systems powered by multi-cell lithium-ion batteries or 12V power rails. The two phases together deliver a continuous output current of 6A (3A per phase), enabling the use of low-profile external components. The two phases operate out of phase, significantly reducing switching noise. The TPS62184 automatically enters a power-save mode under ultra-light loads to maintain high efficiency, and also integrates Automatic Efficiency Enhancement (AEE™) across the full duty cycle range. The device provides a power-good signal and adjustable soft-start. Its typical quiescent current is 28μA, and it supports 100% duty cycle operation with no duty cycle limitation even at the minimum output voltage. The TPS62184 is available in a compact 24-bump, 0.5mm pitch DSBGA package.

Applications

• Thin point-of-load (POL) power supply
• Narrow VDC (NVDC) power system
• 2-/3-cell Li-Ion battery
• Ultra-portable/embedded/tablet PC
• Computing and networking solution
• Micro server and SSD

Key features

• Dual-phase balanced peak current mode
• Input voltage range: 4V to 17V
• Output voltage: 0.9V ≤ VOUT ≤ 1.8V (6A), 1.8V ≤ VOUT ≤ 2.5V (5.5A), 2.5V ≤ VOUT ≤ 3.5V (5A)
• Typical quiescent current: 28μA
• Output voltage accuracy ±1% (PWM mode)
• Automatic Efficiency Enhancement (AEE™)
• Phase-shift operation
• Automatic power save mode
• Adjustable soft-start
• Power good output
• Undervoltage lockout
• HICCUP overcurrent protection
• Thermal shutdown protection
• Pin-to-pin compatible with TPS62180/2
• NanoFree™ 2.10mm x 3.10mm Die-Size Ball Grid Array (DSBGA) package
