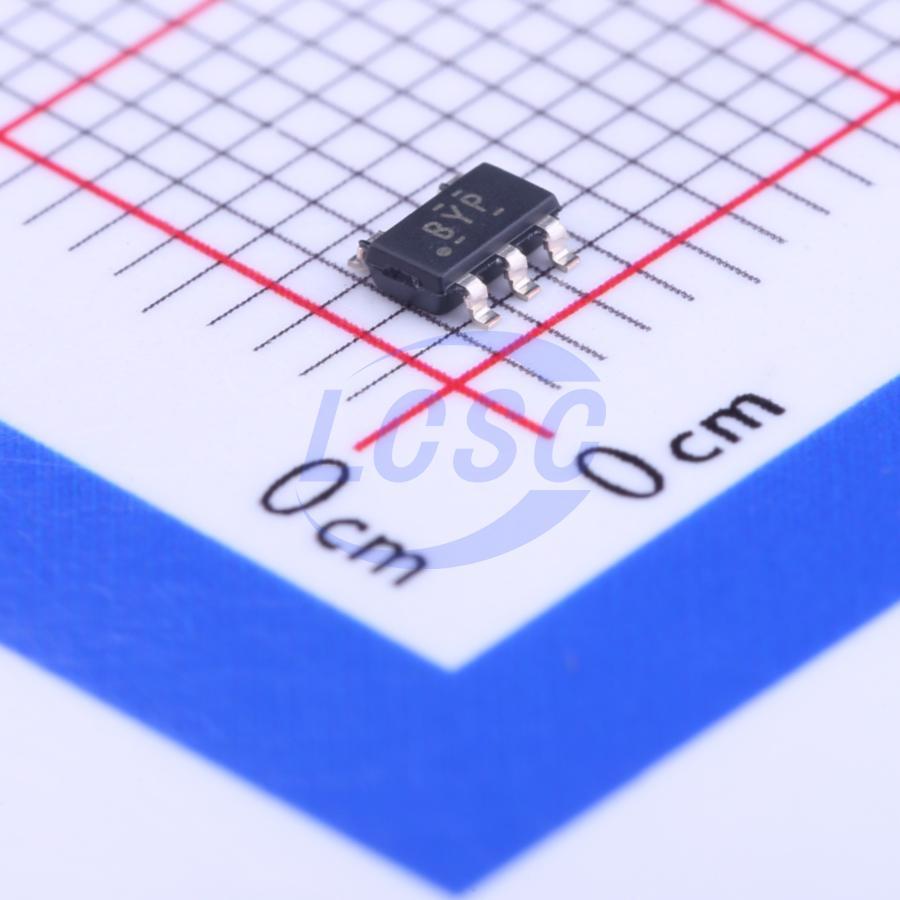

TPS62260DDCR
2.25MHz Step-down type Adjustable 600mV~6V 600mA SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
2.25-MHz 600-mA Step Down Converter in 2 x 2 WSON and SOT Package
- Manufacturer
- TI
- Manufacturer part #
- TPS62260DDCR
- Store part #
- C59210
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,841 in stock
#C59210
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹232.25 | ₹232.25 |
| 10+ | ₹190.76 | ₹1,907.60 |
| 30+ | ₹167.94 | ₹5,038.20 |
| 100+ | ₹142.32 | ₹14,232.00 |
| 500+ | ₹130.79 | ₹65,395.00 |
| 1,000+ | ₹125.58 | ₹1,25,580.00 |
1 × ₹232.25
₹232.25
excl. GST
₹274.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TPS62260DDCR
₹232.25 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 2.25MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 2V~6V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~6V
- Output Current
- 600mA
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.033 g
Overview
The TPS6226x device is a highly efficient synchronous step-down DC/DC converter. The TPS6226x provides up to 600-mA output current from a single Li-Ion cell, and is ideal for battery-powered applications such as mobile phones and other portable equipment.
Applications
- Mobile Phones, Smart Phones
- Low Power DSP Supply
- Portable Media Players
- Point-of-Load (POL) Applications
Key features
- High Efficiency Step-Down Converter
- Output Current up to 600 mA
- VIN Range from 2 V to 6 V for Li-ion Batteries with Extended Voltage Range
- 2.25-MHz Fixed Frequency Operation
- Power Save Mode at Light Load Currents
- Output Voltage Accuracy in PWM Mode ±1.5%
- Typical 15 - μA Quiescent Current
- 100% Duty Cycle for Lowest Dropout Voltage Positioning at Light Loads
- Available in a SOT (5) and 2 - mm × 2 - mm × 0.8 mm WSON (6) Package
- Allows < 1 -mm Solution Height
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TPS62260DDCT#C2865936TI · TSOT-23-5 | TI | TSOT-23-5 | 41 | ₹230.27 · 41 in stock | View | |
 | TPS62260TDDCRQ1#C2071144TI · SOT-23-5 | TI | SOT-23-5 | 250 | ₹269.30 · 250 in stock | View |
 | MT9216#C182965XI'AN Aerosemi Tech · SOT-23-5 | XI'AN Aerosemi Tech | SOT-23-5 | 820 | ₹9.66 · 820 in stock | View |
 | SD8916A#C250797SHOUDING · SOT-23-5 | SHOUDING | SOT-23-5 | 80 | ₹17.50 · 80 in stock | View |
 | HT8008ARTZ#C5336208HTCSEMI · SOT-23-5 | HTCSEMI | SOT-23-5 | 171 | ₹19.70 · 171 in stock | View |
