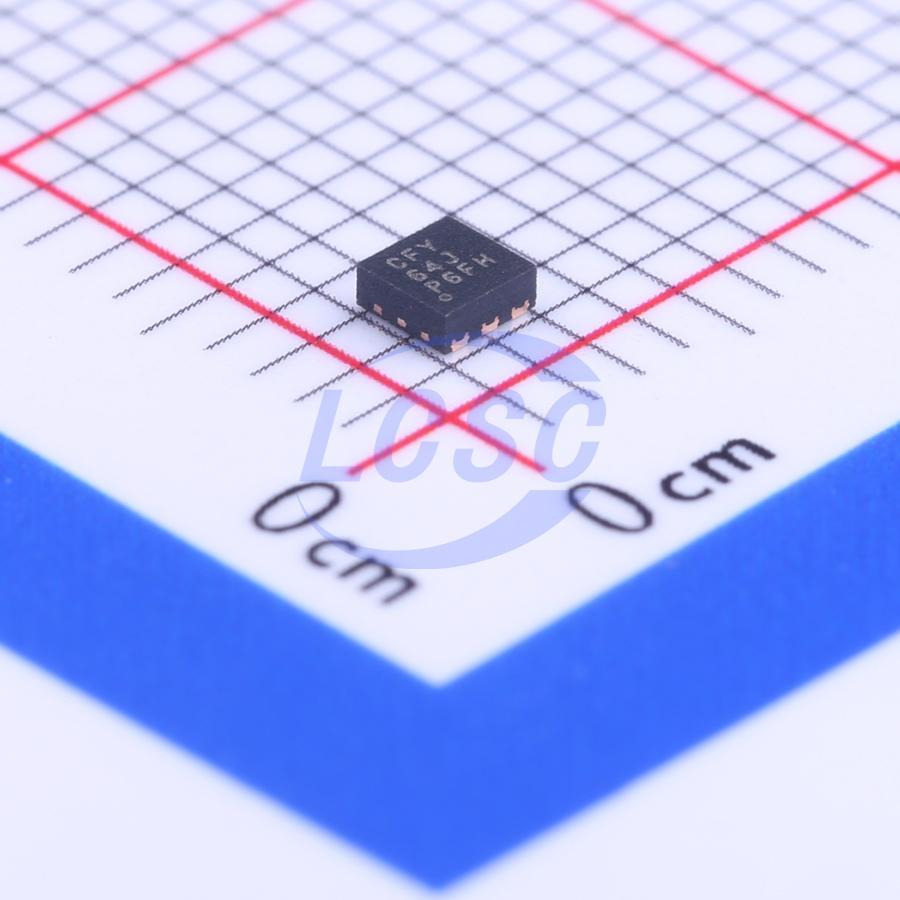

TPS62291DRVR

The TPS6229x device is a highly efficient synchronous step down dc-dc converter optimized for battery powered portable applications. It provides up to 1000-mA output current from a single Li-Ion cell. With an input voltage range of 2.3 V to 6 V, the device supports batteries with extended voltage range and are ideal to power portable applications like mobile phones and other portable equipment. The TPS6229x operates at 2.25-MHz fixed switching frequency and enters Power Save Mode operation at light load currents to maintain high efficiency over the entire load current range. The Power Save Mode is optimized for low output voltage ripple. For low noise applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1 μA. The TPS6229x allows the use of small inductors and capacitors to achieve a small solution size. The TPS6229x is available in a 2 mm × 2 mm 6-pin SON package.

Applications

• Cell Phones, Smart-phones
• WLAN
• PDAs, Pocket PCs
• Low Power DSP Supply
• Portable Media Players
• POL

Key features

• High Efficiency Step Down Converter
• Output Current up to 1000 mA
• VIN Range From 2.3 V to 6 V
• 2.25 MHz Fixed Frequency Operation
• Power Save Mode at Light Load Currents
• Output Voltage Accuracy in PWM mode ±1.5%
• Fixed Output Voltage Options
• Typ. 15-μA Quiescent Current
• 100% Duty Cycle for Lowest Dropout
• Voltage Positioning at Light Loads
• Available in a 2×2×0.8 mm SON Package
