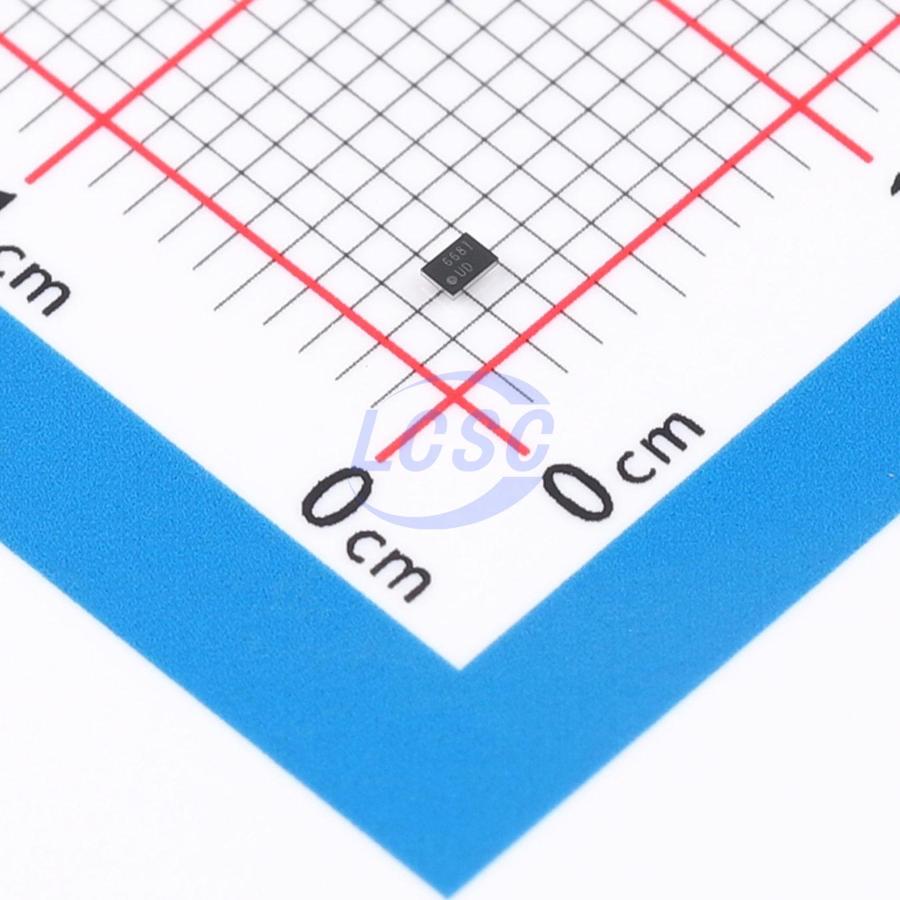

TPS62693YFDR

The TPS62693 device is a high-frequency synchronous step-down dc-dc converter optimized for battery-powered portable applications. Intended for low-power applications, the TPS62693 supports up to 800-mA load current, and allows the use of low cost chip inductor and capacitors. The device is ideal for mobile phones and similar portable applications powered by a single-cell Li-Ion battery. Different fixed output voltage versions are available in the range from 2.2 V up to 3.3 V. The TPS62693 operates at a regulated 3-MHz switching frequency and enters the power-save mode operation at light load currents to maintain high efficiency over the entire load current range. The PFM mode extends the battery life by reducing the quiescent current to 21 μA (typical) during light load operation. For noise-sensitive applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. This feature, combined with high PSRR and AC load regulation performance, make this device suitable to replace a linear regulator to obtain better power conversion efficiency.

Applications

• Memory Cards
• LDO Replacement
• Cell Phones, Smart-Phones
• WLAN, Bluetooth Applications

Key features

• 95% Efficiency at 3MHz Operation
• 21 μA Quiescent Current
• 3 MHz Regulated Frequency Operation
• Spread Spectrum, PWM Frequency Dithering
• High Duty-Cycle Operation
• ±2% Total DC Voltage Accuracy
• Best in Class Load and Line Transient
• Excellent AC Load Regulation
• Low Ripple
• Light-Load PFM Mode
• ≥40 dB vIN PSRR (1 kHz to 10 kHz)
• Internal Soft Start
• Integrated Active Power-Down Sequencing (Optional)
• Current Overload and Thermal Shutdown Protection
• Three Surface-Mount External Components Required (One 2012 MLCC Inductor, Two 0402 Ceramic Capacitors)
• Complete Sub 1-mm Component Profile Solution
• Total Solution Size < 12 mm² (CSP)
• Available in a 6-Pin NanoFree (CSP)
