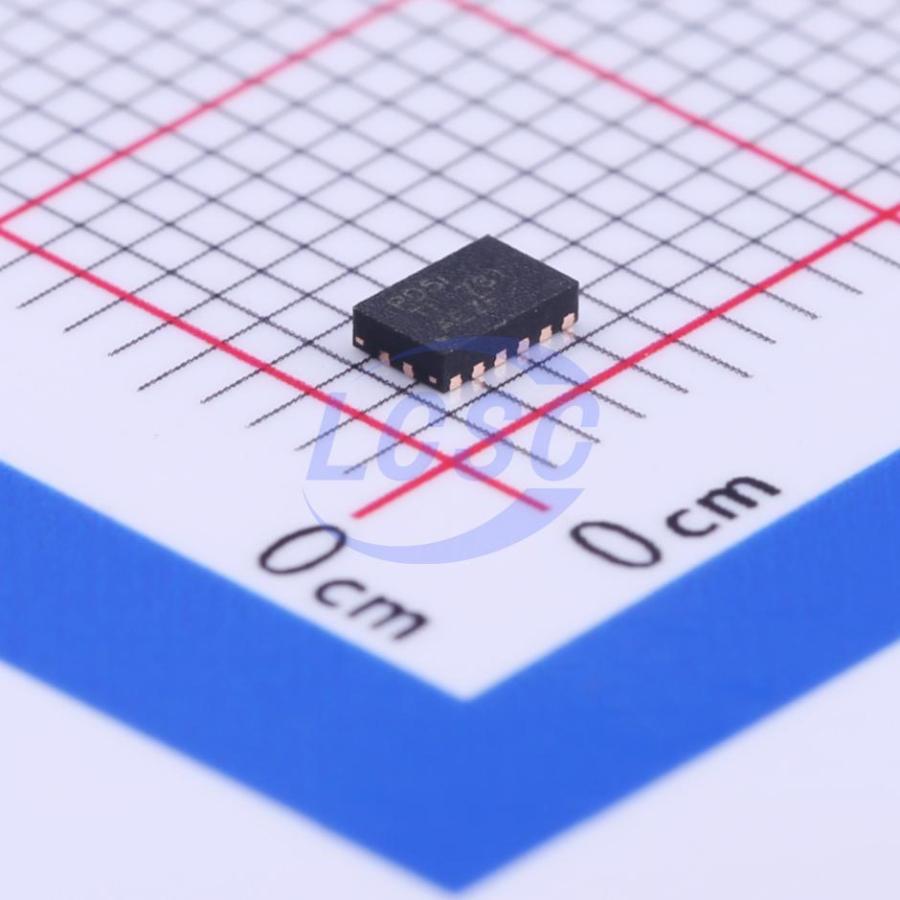

TPS62745DSSR

Step-down type Fixed 1.8V~3.3V 300mA WSON-12-EP(2x3) Voltage Regulators - DC DC Switching Regulators RoHS

WSON-12-EP(2x3)ROHS3 CompliantActive

Dual-cell ultra-low lQ buck converter for low-power wireless applications

Manufacturer: TI
Manufacturer part #: TPS62745DSSR
Store part #: C91940
Package / case: WSON-12-EP(2x3)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,794 in stock

#C91940

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹255.62	₹255.62
10+	₹229.25	₹2,292.50
30+	₹214.99	₹6,449.70
100+	₹198.57	₹19,857.00
500+	₹191.44	₹95,720.00
1,000+	₹187.99	₹1,87,990.00

Quantity (min 1)

1 × ₹255.62

₹255.62

excl. GST

₹301.63 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS62745DSSR

₹255.62 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Output discharge;Operating status indication;Light load efficient mode;Dynamic voltage scaling
Output Type: Fixed
Topology: Buck
Operating Voltage: 3.3V~10V
Switch tube (built-in/external): Built-in
Output Voltage: 1.8V~3.3V
Output Current: 300mA
Quiescent Current: 400nA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.021 g

Overview

The TPS62745 is a high - efficiency, ultra - low - power synchronous step - down converter optimized for low - power wireless applications. It provides a regulated output with a quiescent current of only 400 nA. The device is powered by two rechargeable lithium - ion batteries or four to six alkaline batteries. The input voltage range of the device is up to 10 V, so it can also be powered by a USB port and a thin - film solar module. The output voltage is set through four VSEL pins. The voltage range of the TPS62745 is from 1.8 V to 3.3 V; the voltage range of the TPS627451 is from 1.3 V to 2.8 V. The TPS62745 uses a small output capacitor and features low output ripple voltage and low noise. An internal input voltage switch controlled by the EN_VIN_SW pin connects the supply voltage to the VIN_SW pin. This switch is dedicated to an external voltage divider to proportionally reduce the input voltage of an external ADC. When the supply voltage is below the undervoltage lockout threshold, this switch automatically opens. The TPS62745 comes in a small 12 - pin 3 mm×2 mm WSON package.

Applications

Bluetooth Low Energy
Radio Frequency for Consumer Electronics (RF4CE)
Short-Range Low-Power Communication (Zigbee)
Industrial Instrumentation & Metering
Energy Harvesting

Key features

VIN range: 3.3V to 10V
400nA quiescent current (typical)
Up to 90% efficiency at load current >15μA
Output current up to 300mA
RF-friendly DCS-Control™
Low output ripple voltage
16 selectable output voltages: 1.8V to 3.3V (TPS62745), 1.3V to 2.8V (TPS627451)
Integrated input voltage switch
Integrated VOUT discharge function
Open-drain power-good output
Compatible with miniature 3.3μH or 4.7μH inductors
Small 3mm x 2mm WSON package
