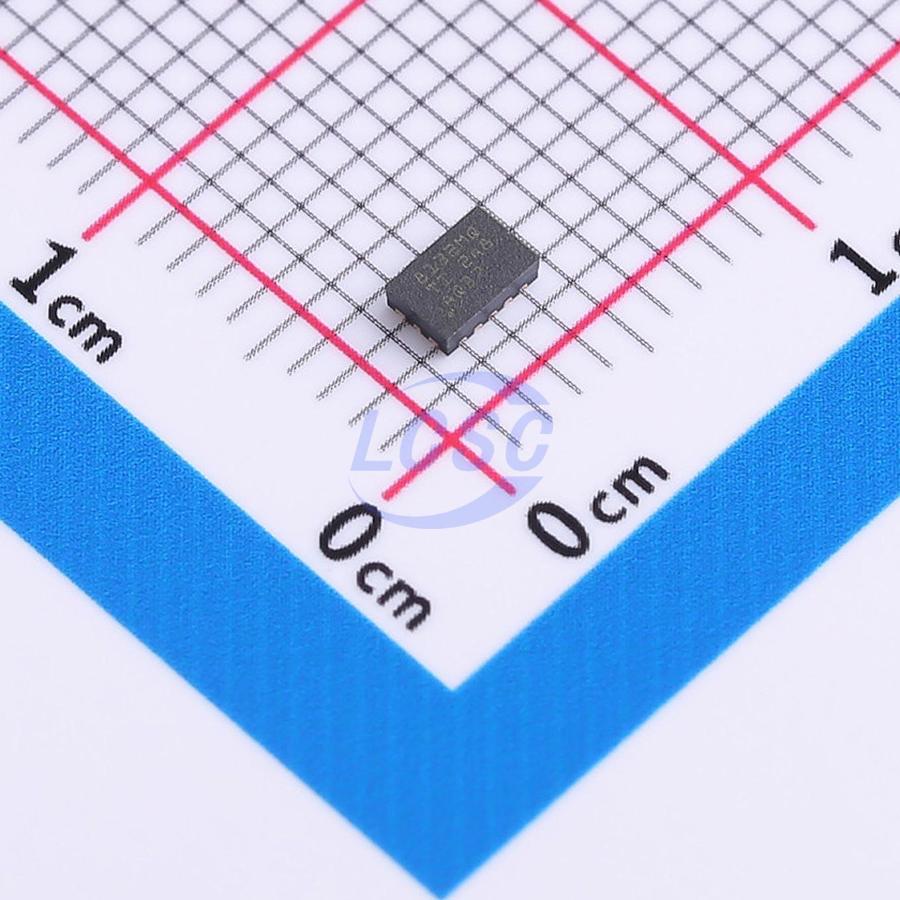

TPS628132MQWRWYRQ1

Buck Switching Regulator IC Fixed 1.8V 1 Output 3A VQFN-9-HR(3x2)

VQFN-9-HR(3x2)ROHS CompliantActive

IC REG BUCK FIXED 3A VQFN-9-HR(3x2)

Manufacturer: TI
Manufacturer part #: TPS628132MQWRWYRQ1
Store part #: C3190200
Package / case: VQFN-9-HR(3x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

25 in stock

#C3190200

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹451.33	₹451.33
10+	₹385.91	₹3,859.10
30+	₹346.90	₹10,407.00
100+	₹307.47	₹30,747.00
500+	₹289.26	₹1,44,630.00
1,000+	₹281.03	₹2,81,030.00

Quantity (min 1)

1 × ₹451.33

₹451.33

excl. GST

₹532.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TPS628132MQWRWYRQ1

₹451.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TA)
Frequency - Switching: 1.8MHz~4MHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable soft-start;Output discharge;EMI optimization (spread spectrum);Frequency synchronization;Light load efficient mode;Output voltage tracking;Overcurrent Protection;Operating status indication
Topology: Buck
Output Type: Fixed
Operating Voltage: 2.75V~6V
Switch tube (built-in/external): Built-in
Output Voltage: 1.8V
Output Current: 3A
Quiescent Current: 15uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.147 g

Overview

The TPS6281x-Q1 is a series of pin-to-pin 1A, 2A, 3A, and 4A synchronous step-down DC/DC converters. All devices in this series feature high efficiency and ease of use. The TPS6281x-Q1 series is based on the peak current mode control topology. It is specifically designed for automotive applications such as infotainment systems and advanced driver assistance systems. The low-resistance switches can support a continuous output current of up to 4A in high-temperature environments. Users can externally adjust the switching frequency in the range of 1.8MHz to 4MHz or synchronize it to an external clock within this frequency range. In PWM/PFM mode, the TPS6281x-Q1 automatically enters the power-saving mode under light loads, maintaining high efficiency across the entire load range. The TPS6281x-Q1 can provide an output voltage accuracy of 1% in PWM mode, which facilitates the design of power supplies with high output voltage accuracy. The start-up time can be set or the output voltage provided to an external source can be tracked through the SS/TR pin. This feature enables external sequencing of different power rails and limits the inrush current during start-up. The TPS6281x-Q1 comes in a 3mm × 2mm VQFN package with wettable flanks.

Applications

Infotainment Systems
Audio Head Units
Hybrid and Reconfigurable Instrument Clusters
Telematics Control Units
Surround View ECUs
ADAS Sensor Fusion
External Amplifiers

Key features

AEC-Q100 qualified for automotive applications – Device Temperature Grade 1: -40℃ to +125℃ TA
Functional Safety enabled
Documentation available to aid functional safety system design
Input voltage range: 2.75V to 6V
1A, 2A, 3A, and 4A family
Quiescent current 15μA (typical)
Output voltage range: 0.6V to 5.5V
Output voltage accuracy ±1% (PWM operation)
Adjustable soft-start
Forced PWM or PWM and PFM operation
Adjustable switching frequency: 1.8MHz to 4MHz
Precision enable input for – User-defined UVLO – Accurate sequencing
100% duty cycle mode
Active output discharge
Spread spectrum clocking – Optional
Power-good output with window comparator
Wettable flank package
