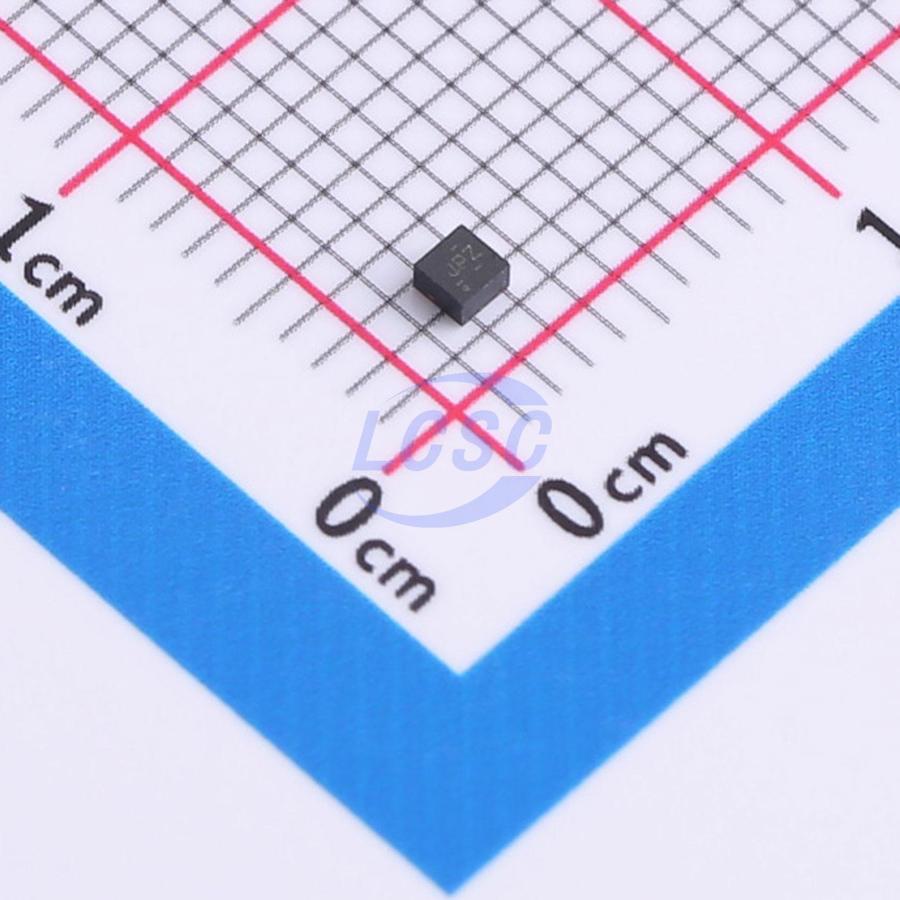

TPS62827ADMQR

The TPS6282x is a family of easy-to-use synchronous step-down DC/DC converters with an ultra-low quiescent current of only 4μA. Based on DCS-Control topology, the devices offer fast transient response. With an internal voltage reference, the series regulates output voltage below 0.6V with 1% high feedback voltage accuracy over a junction temperature range of -40°C to 125°C. The device family offers pin-to-pin and BOM-to-BOM compatibility. The complete solution requires a small 470nH inductor, a 4.7μF input capacitor, and two 10μF or one 22μF output capacitor.

Applications

• Solid State Drives
• Portable Electronics
• Analog Security Cameras and IP Network Cameras
• Industrial PCs
• Multifunction Printers
• General-Purpose Point-of-Load

Key features

• DCS-Control™ topology
• 1% feedback or output voltage accuracy (over full temperature range)
• Up to 97% efficiency
• 26mΩ and 25mΩ internal power MOSFETs
• 2.4V to 5.5V input voltage range
• 4μA operating quiescent current
• 2.2MHz switching frequency
• Adjustable output voltage range: 0.6V to 4V
• Power save mode for light-load efficiency
• 100% duty cycle for minimum dropout with active output discharge
• Power good output
• Thermal shutdown protection
• Hiccup short-circuit protection
• Forced PWM version supports CCM operation
• Create custom designs with TPS6282x using WEBENCH® Power Designer
